| Model NO. |

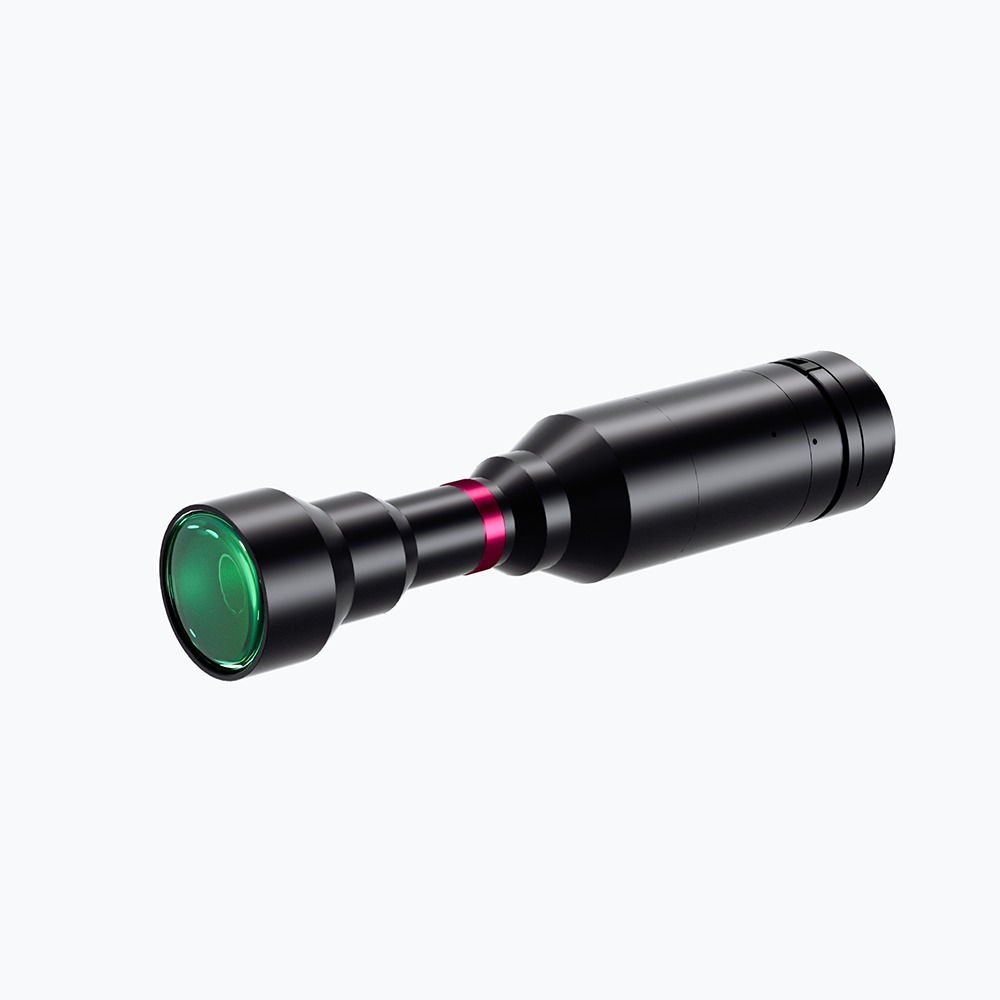

DTCA175-28.2-128-M42-AL |
Image Circle Diameter (Φmm) |
28.2(1.75") |
| Magnification(x) |
1 |
Working Distance(mm) |
128 |
| NA |
0.0453 |
Type |
Bi-Telecentric |
| Mount |
M42 |
Object Field of View(Φmm) |
28.2 |
| Best Aperture(f/#) |
11 |
MTF30 (lp/mm) |
76 |
| Object Resolution(μm) |
7.4 |
Depth of Field(mm) |
0.9 |
| Distortion Typical(% max) |
0.01 |
Telecentricity Typical (°max) |
＜0.1 |
| Length of I/O(mm) |
456 |
Length (mm) |
315.5 |
| Weight(kg) |
1 |
Iris Adjustable |
No |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
/ |
| Filter Screw Size |
M60x0.5 |
Field of View (mm × mm)
|
1.75" IMX342 (22.3X16.7) |
22.3x16.7 |
|
|
Dimensions
Naming Rule
