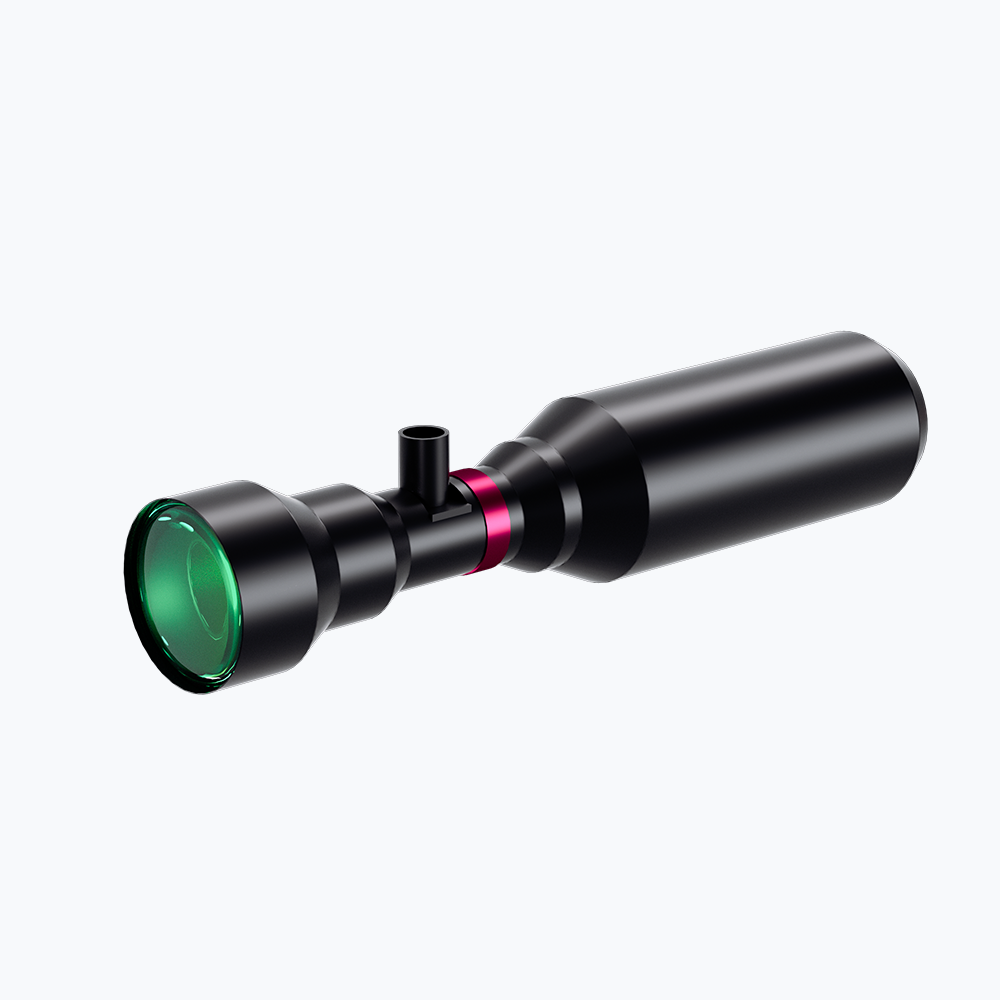

1.2" 1X Bi-Telecentric Lenses | DTCA175-28.2C-128-M42-AL COOLENS®-OKLAB
1.2" 1X Bi-Telecentric Lenses | DTCA175-28.2C-128-M42-AL COOLENS®-OKLAB

1.75" 1X Bi-Telecentric Lenses | DTCA175-28.2C-128-M42-AL COOLENS®

DTCA175-28.2C-128-M58-AL
Image Circle:28.2(1.75")mm, Magnification:1X, FoV:28.2mm, WD:128mm, NA:0.04538, Mount:M42, Type:Bi-Telecentric Lenses
$2,727.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$2,727.00 USD each
Description

Model NO. DTCA175-28.2C-128-M42-AL Image Circle Diameter (Φmm) 28.2(1.75")
Magnification(x) 1 Working Distance(mm) 128
NA 0.0454 Type Bi-Telecentric
Mount M42 Object Field of View(Φmm) 28.2
Best Aperture(f/#) 11 MTF30 (lp/mm) 76
Object Resolution(μm) 7.4 Depth of Field(mm) 0.9
Distortion Typical(% max) 0.02 Telecentricity Typical (°max) <0.1
Length of I/O(mm) 458 Length (mm) 317.9
Weight(kg) 1 Iris Adjustable No
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 1.2
Filter Screw Size M60x0.5
Field of View (mm × mm)
1.75" IMX342 (22.3X16.7) 22.3x16.7

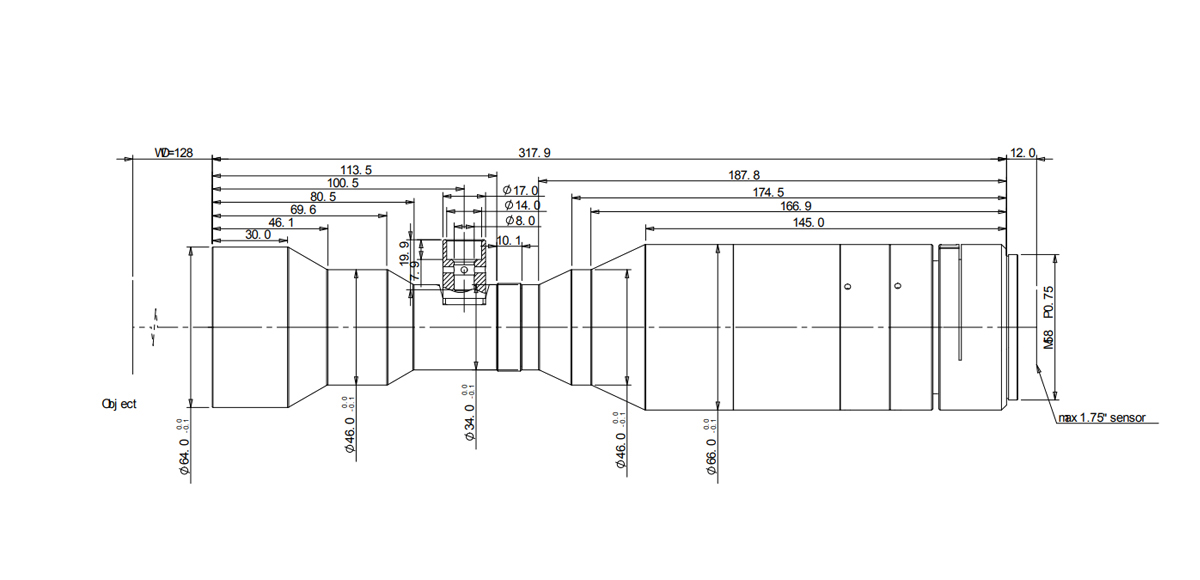

Dimensions

Naming Rule
