Model NO. | DTCA16K-62-AL | Image Circle Diameter (Φmm) | 62(16K) | ||||
Magnification(x) | 1 | Working Distance(mm) | 102 | ||||
NA | 0.0713 | Type | Bi-Telecentric | ||||
Mount | M72 | Object Field of View(Φmm) | 62 | ||||
Best Aperture(f/#) | 7 | MTF30 (lp/mm) | >110 | ||||
Object Resolution(μm) | 4.7 | Depth of Field(mm) | ±0.3@F7.0 | ||||
Distortion Typical(% max) | <0.1 | Telecentricity Typical (°max) | <0.62 | ||||

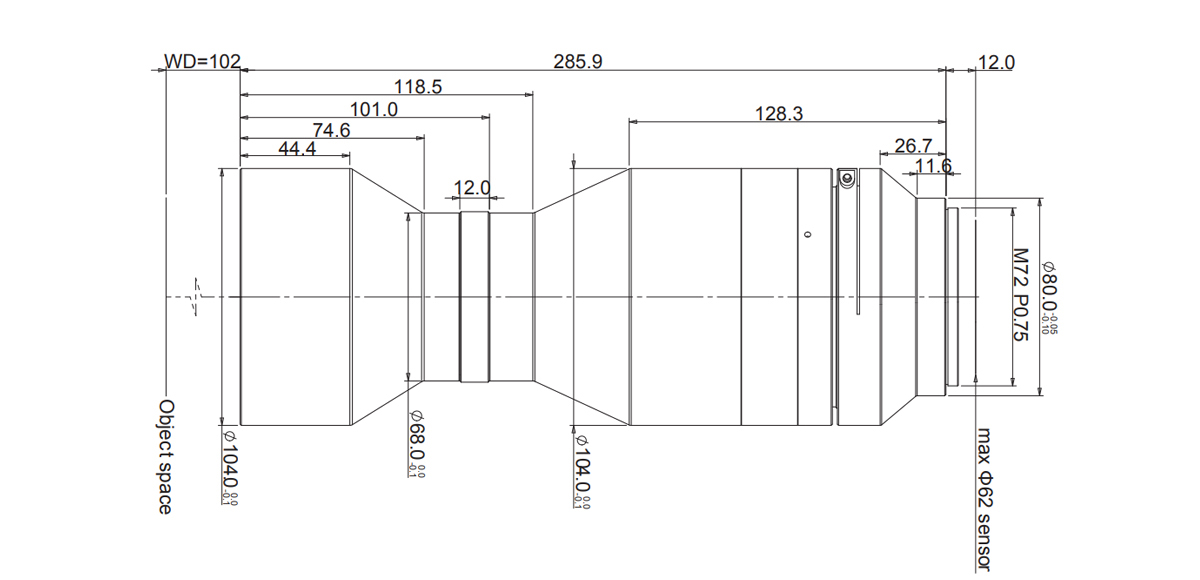

Length of I/O(mm) | 400 | Length (mm) | 285.9 | ||||
Weight(kg) | 3.1 | Iris Adjustable | No | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.6 | ||||
Filter Screw Size | M96x0.75 | ||||||
Field of View (mm × mm) |
KAI-47051(48.7x29.0) | 48.7x29.0 | |||||
Linescan-12K 5um(61.44mm) | 61.4mm | ||||||
Linescan-16K 3.5/3.53um(57.4mm) | 57.4mm |

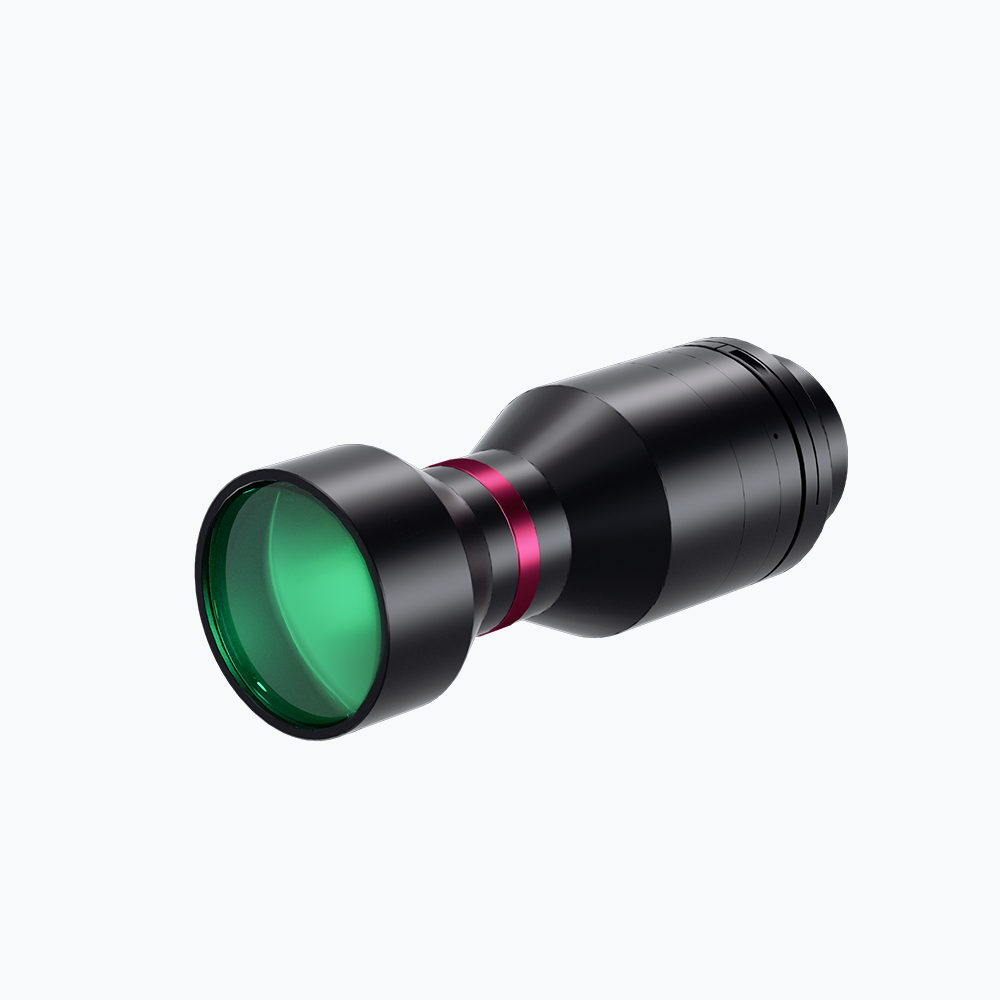

16K 1X Bi-Telecentric Lenses | DTCA16K-62-AL COOLENS®
$3,351.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCA16K-62-AL | Image Circle Diameter (Φmm) | 62(16K) | ||||
Magnification(x) | 1 | Working Distance(mm) | 102 | ||||
NA | 0.0713 | Type | Bi-Telecentric | ||||
Mount | M72 | Object Field of View(Φmm) | 62 | ||||
Best Aperture(f/#) | 7 | MTF30 (lp/mm) | >110 | ||||
Object Resolution(μm) | 4.7 | Depth of Field(mm) | ±0.3@F7.0 | ||||
Distortion Typical(% max) | <0.1 | Telecentricity Typical (°max) | <0.62 | ||||
Length of I/O(mm) | 400 | Length (mm) | 285.9 | ||||
Weight(kg) | 3.1 | Iris Adjustable | No | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.6 | ||||
Filter Screw Size | M96x0.75 | ||||||
Field of View (mm × mm) |
KAI-47051(48.7x29.0) | 48.7x29.0 | |||||
Linescan-12K 5um(61.44mm) | 61.4mm | ||||||
Linescan-16K 3.5/3.53um(57.4mm) | 57.4mm |
