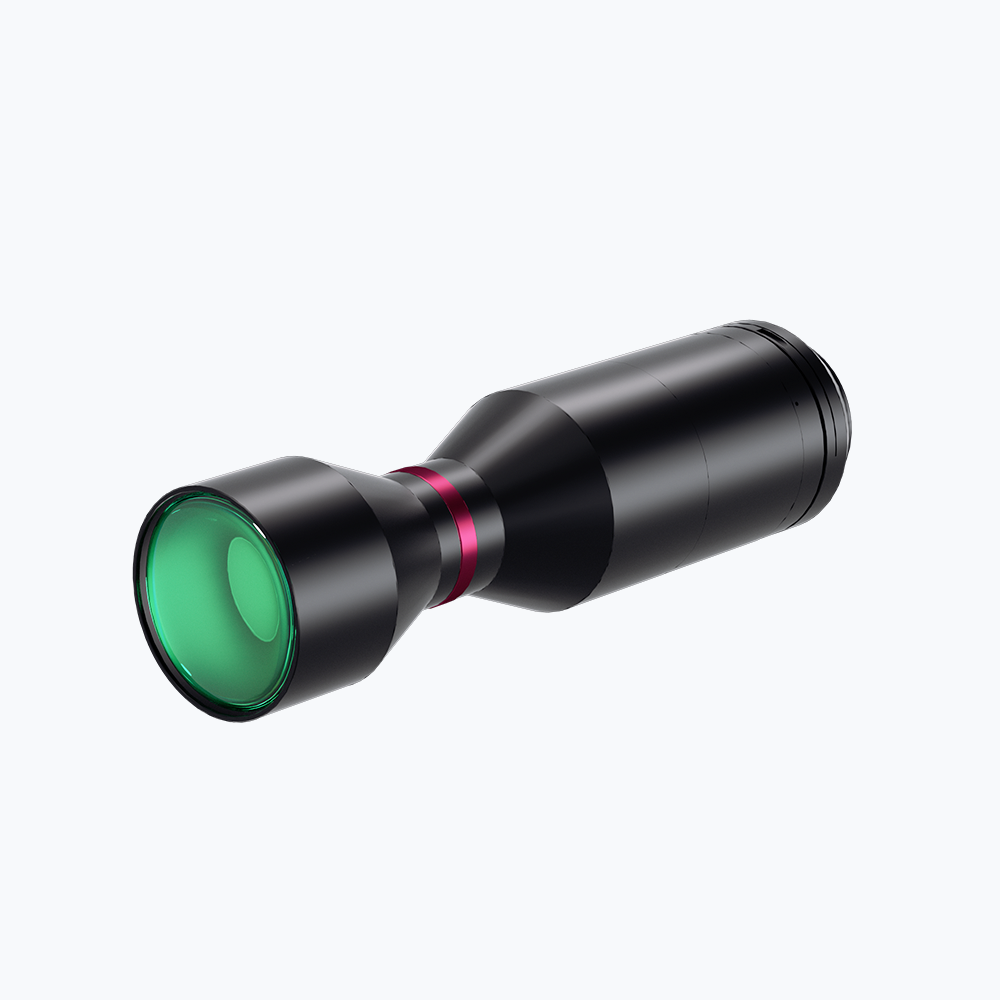

24K 1X Bi-Telecentric Lenses | DTCA24K-88-M95-AL COOLENS®

DTCA24K-88-M95-ALV2
$4,091.00 USD
Shipping calculated at checkout.
Quantity
24K 1X Bi-Telecentric Lenses | DTCA24K-88-M95-AL COOLENS®-OKLAB

Description

Model NO. DTCA24K-88-M95-AL Image Circle Diameter (Φmm) 88(24K)
Magnification(x) 1.000 Working Distance(mm) 162
NA 0.0624 Type Bi-Telecentric
Mount M95 Object Field of View(Φmm) 88
Best Aperture(f/#) 8 MTF30 (lp/mm) >90
Object Resolution(μm) 5.4 Depth of Field(mm) ±0.3@F8.0
Distortion Typical(% max) <0.1 Telecentricity Typical (°max) <0.1
Length of I/O(mm) 627 Length (mm) 453.2
Weight(kg) 6 Iris Adjustable No
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.3
Filter Screw Size M90x1.0
Field of View (mm × mm)
 64.32x48.38 with DALSA 86M 64.3×48.4
81.9mm with Linescan-16K 5μm 81.9mm
86.0mm with Linescan-24K 3.5μm 86.0mm

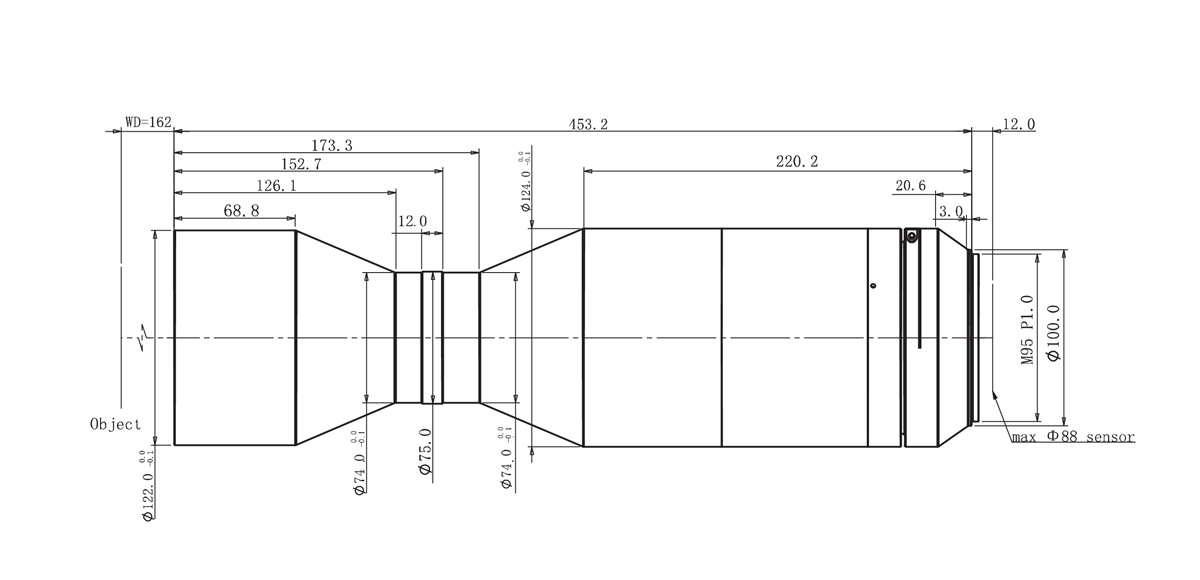

Dimensions
