Model NO. |
DTCA35F-44C-G-M58-AL |
Magnification(x) |
1.0 |
Object Field of View (Φmm) |
44.0 |
Working Distance (mm) |
102 |
Max Sensor Size (Φmm) |
44(35mm Full) |
Best Aperture (F/#) |
32 |
Telecentricity typical (max) (deg) |
0.04 |
Distortion typical (max) (%) |
0.04 |
MTF30 (lp/mm) |
150-33 |
Depth of Field (mm) |
0.49-2.56 |
Length of I/O (mm) |
411 |
Mount |
M58 |
Length (mm) |
297.3 |
Weight (kg) |
2.18 |
Coaxial Illumination Port Option |
YES |
Iris Adjustable |
YES |
Back Focal Length Adjustable |
YES |
Field of View (mm × mm) |
CMV50000 (36.43x27.62) |
36.43x27.62 |
KAI43142 (36.18x24.12) |
36.18x24.12 |

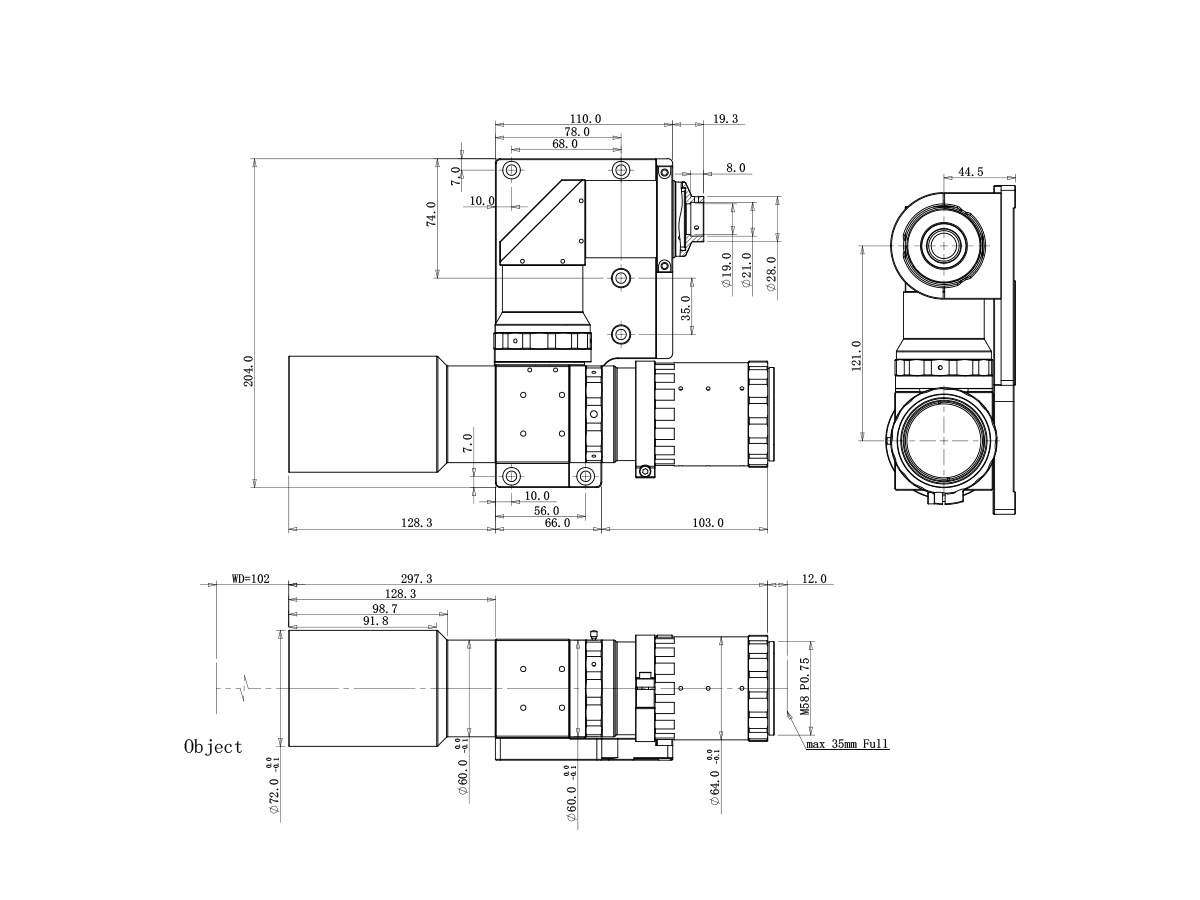

Dimensions
![]()
