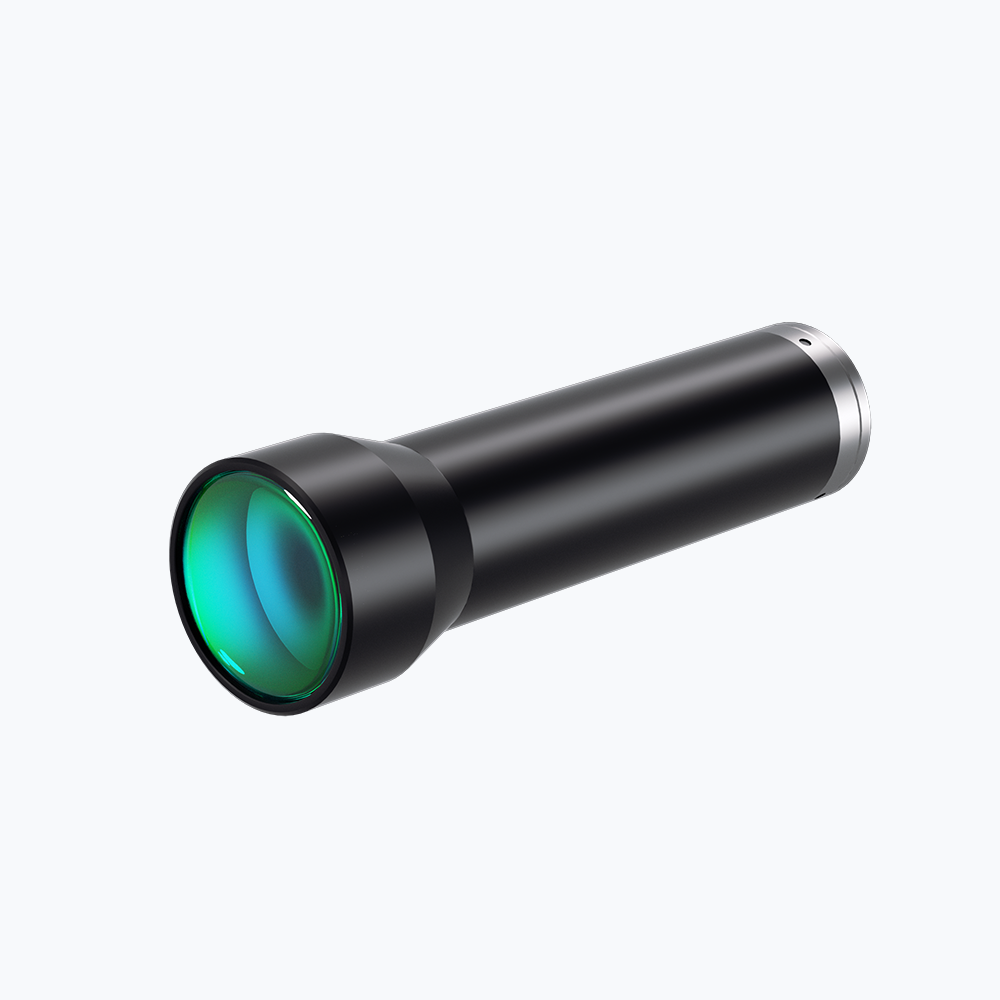

| Model NO. |
WWK10-110-111 |
Image Circle Diameter (Φmm) |
18(1.1") |
| Magnification(x) |
1.000 |
Working Distance(mm) |
110±2 |
| NA |
0.0713 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
7 |
| MTF30 (lp/mm) |
>128 |
Object Resolution(μm) |
4.7 |
| Depth of Field(mm) |
±0.3@F7 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.06 |
Length (mm) |
142.5 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
0.3 |
| Filter Screw Size |
M41x0.5 |
| Field of View (mm x mm) |
|
| 1" IMX183 (13.13x8.76) |
13.1×8.8 |
| 1" IMX253 (14.19x10.4) |
14.2×10.4 |

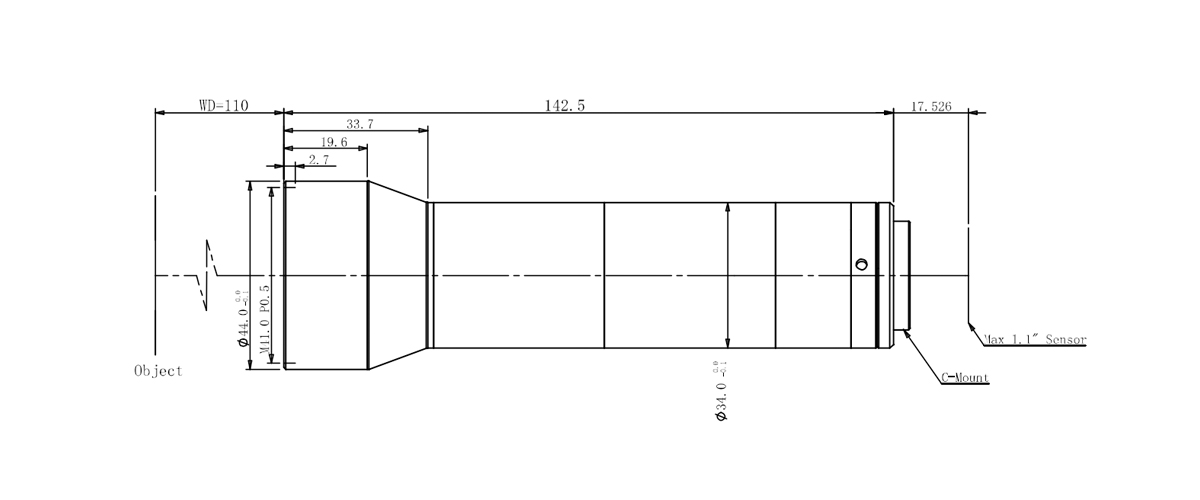

Dimensions
Naming Rule
