Model NO. | DTCM175-26-M58-AL | Image Circle Diameter (Φmm) | 29(1.75") | ||||
Magnification(x) | 1.115 | Working Distance(mm) | 73±1 | ||||
NA | 0.0368 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 26 | ||||
Best Aperture(f/#) | 15 | MTF30 (lp/mm) | >50 | ||||
Depth of Field(mm) | ±0.6@F20 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 274±1 | ||||

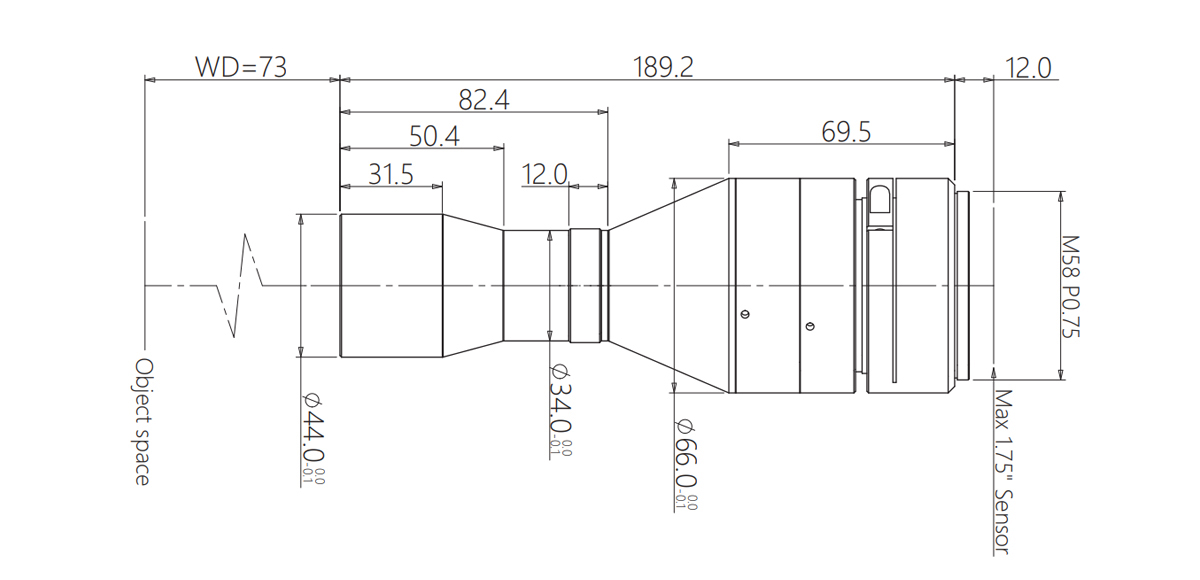

Length (mm) | 189.2 | Weight(kg) | 0.8 | ||||
Measured Depth of Field (mm) | 0.6 | Filter Screw Size | M40x0.5 | ||||
Field of View (mm × mm) |
1.75" CMV12000 (22.53x16.90) | 20.2x15.2 | |||||
1.75" PYTHON16k (18.43x18.43) | 16.5x16.5 | ||||||
1.75" LineScan-4k (28.8mm) | 25.8 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-26-xW-y | |||||
Beam Diameter 26mm |
1.75" 1.115X Bi-Telecentric Lenses | DTCM175-26-M58-AL COOLENS®
$1,812.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM175-26-M58-AL | Image Circle Diameter (Φmm) | 29(1.75") | ||||
Magnification(x) | 1.115 | Working Distance(mm) | 73±1 | ||||
NA | 0.0368 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 26 | ||||
Best Aperture(f/#) | 15 | MTF30 (lp/mm) | >50 | ||||
Depth of Field(mm) | ±0.6@F20 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 274±1 | ||||
Length (mm) | 189.2 | Weight(kg) | 0.8 | ||||
Measured Depth of Field (mm) | 0.6 | Filter Screw Size | M40x0.5 | ||||
Field of View (mm × mm) |
1.75" CMV12000 (22.53x16.90) | 20.2x15.2 | |||||
1.75" PYTHON16k (18.43x18.43) | 16.5x16.5 | ||||||
1.75" LineScan-4k (28.8mm) | 25.8 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-26-xW-y | |||||
Beam Diameter 26mm |
