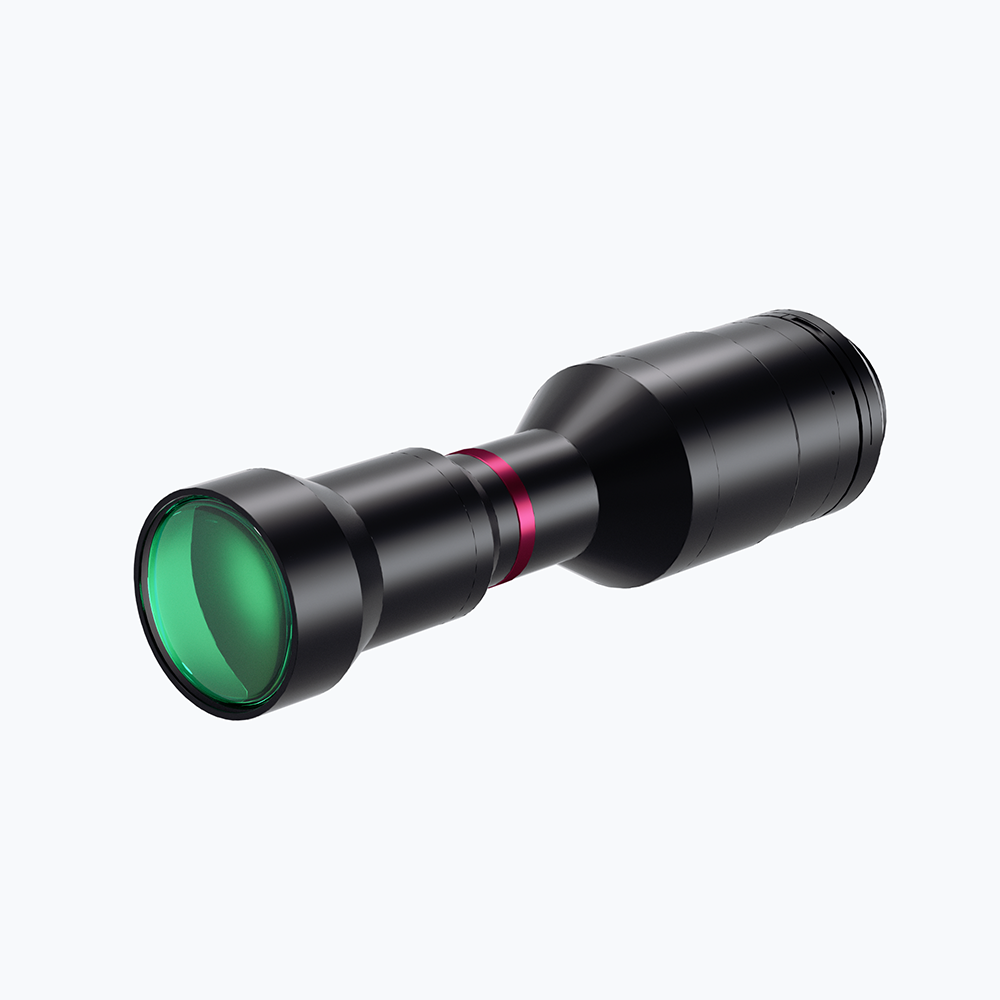

24K 1.173X Bi-Telecentric Lenses | DTCA24K-75-M95-AL COOLENS®

DTCA24K-75-M95-AL
Image Circle:88(24K)mm, Magnification:1.173X, FoV:75mm, WD:152mm, NA:0.08334, Mount:M95, Type:Bi-Telecentric Lenses
$3,798.00 USD $0.00 USD
Quantity
Only 100 left
Description

Model NO. DTCA24K-75-M95-AL Image Circle Diameter (Φmm) 88(24K)
Magnification(x) 1.173 Working Distance(mm) 152
NA 0.0833 Type Bi-Telecentric
Mount M95 Object Field of View(Φmm) 75
Best Aperture(f/#) 7 MTF30 (lp/mm) >118
Object Resolution(μm) 4 Depth of Field(mm) ±0.2@F7.0
Distortion Typical(% max) <0.01 Telecentricity Typical (°max) <0.05
Length of I/O(mm) 650 Length (mm) 486
Weight(kg) 5.6 Iris Adjustable No
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.3
Filter Screw Size M90x1.0
Field of View (mm × mm)
64.32x48.38 with DALSA 86M 54.8×46.4
81.9mm with Linescan-16K 5μm 69.8mm
86.0mm with Linescan-24K 3.5μm 73.3mm

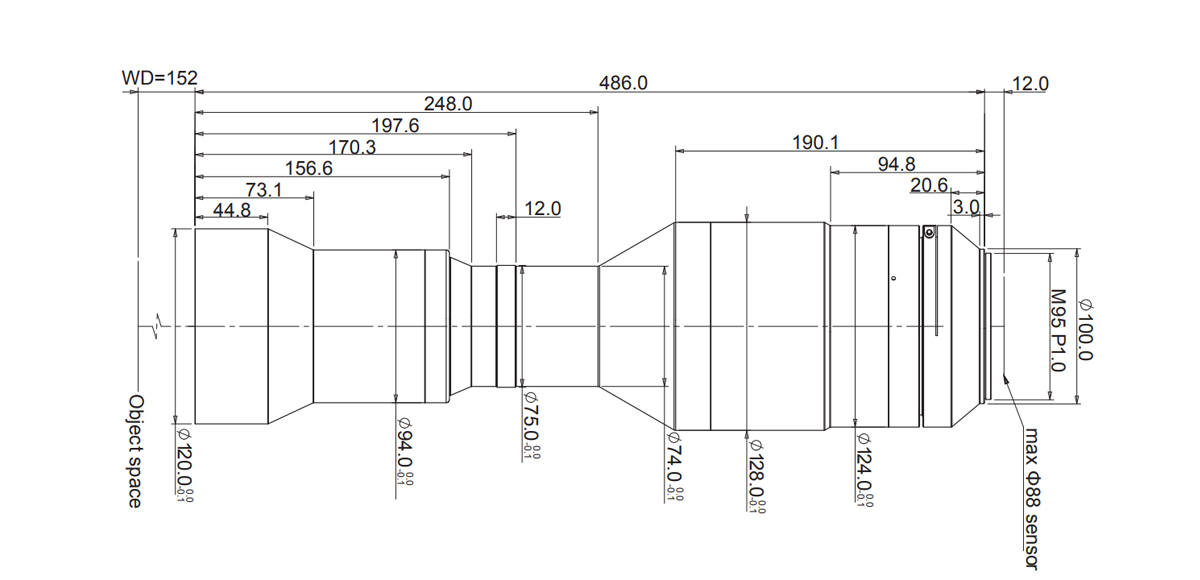

Dimensions

Naming Rule
