1.2" 24.87mm Fixed Magnification Focal Length Lens | WWT121-04-49 COOLENS®-OKLAB
1.2" 24.87mm Fixed Magnification Focal Length Lens | WWT121-04-49 COOLENS®-OKLAB
Home / 1.2" 24.87mm Fixed Magnification Focal Length Lens | WWT121-04-49 COOLENS®

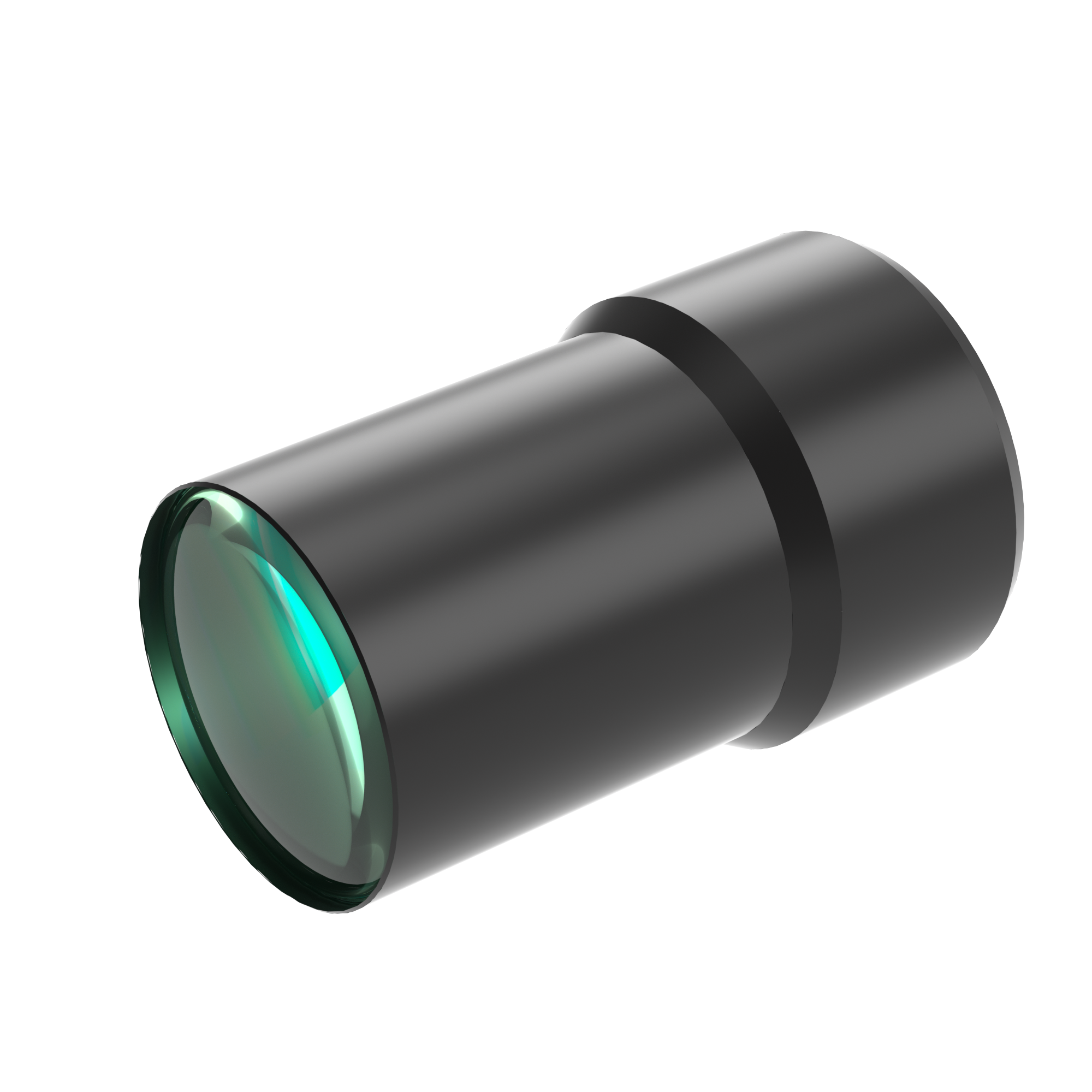

1.2" 24.87mm Fixed Magnification Focal Length Lens | WWT121-04-49 COOLENS®

WWT121-04-49
Image Circle:19.2(1.2") Focal Length:24.87mm Magnification:0.4X WD:49mm MTF30 (lp/mm):78 Mount:C
$254.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$254.00 USD each
Description

Model NO. WWT121-04-49 Image Circle Diameter (Φmm) 19.2(1.2")
Focal Length(mm) 24.87 Magnification(x) 0.4
Working Distance(mm) 49 MTF30 (lp/mm) 78
Type Fixed Magnification Focal Length Mount C
NA 0.0278 Best Aperture(f/#) 7.2
Object Resolution(μm) 12.1 Depth of Field(mm) 3.6
TV Distortion 0.46 Length (mm) 63.7
Measured Depth of Field (mm) 1.5 Filter Screw Size M30x0.5
Field of View (mm x mm)
1/2” IMX530/540（14.6x12.6） 36.5x31.5

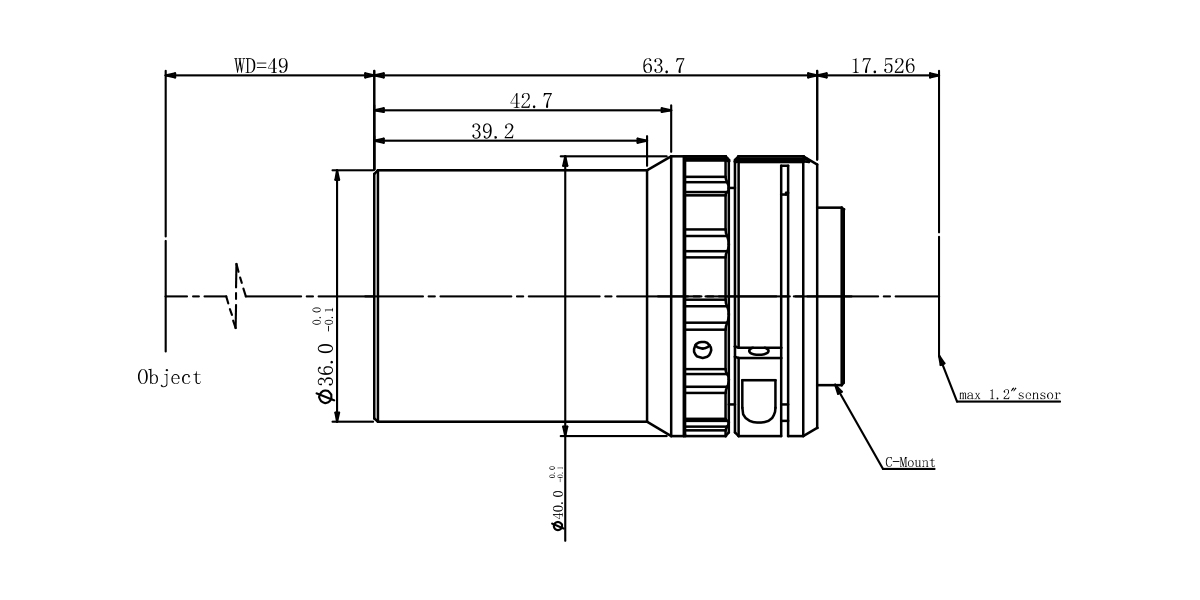

Dimensions

Naming Rule
