Model NO. |
WWT121-015-239 |
Image Circle Diameter (Φmm) |
19.2(1.2") |
Focal Length(mm) |
36.04 |
Magnification(x) |
0.15 |
Working Distance(mm) |
239 |
MTF30 (lp/mm) |
158 |
Type |
Fixed Magnification Focal Length |
Mount |
C |
NA |
0.0125 |
Best Aperture(f/#) |
6 |
Object Resolution(μm) |
26.8 |
Depth of Field(mm) |
21.3 |
TV Distortion |
0.01 |
Length (mm) |
46.1 |
Measured Depth of Field (mm) |
6.2 |
Filter Screw Size |
M30x0.5 |
Field of View (mm x mm) |
1/2” IMX530/540(14.6x12.6) |
97.3x84 |

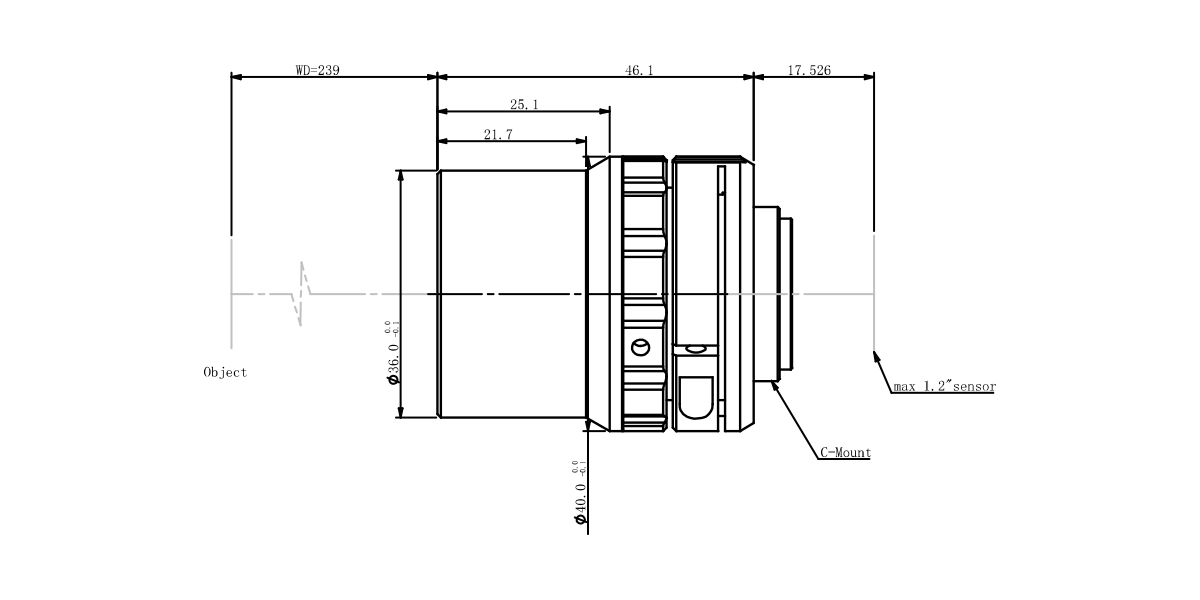

Dimensions
![]()
Naming Rule
![]()
