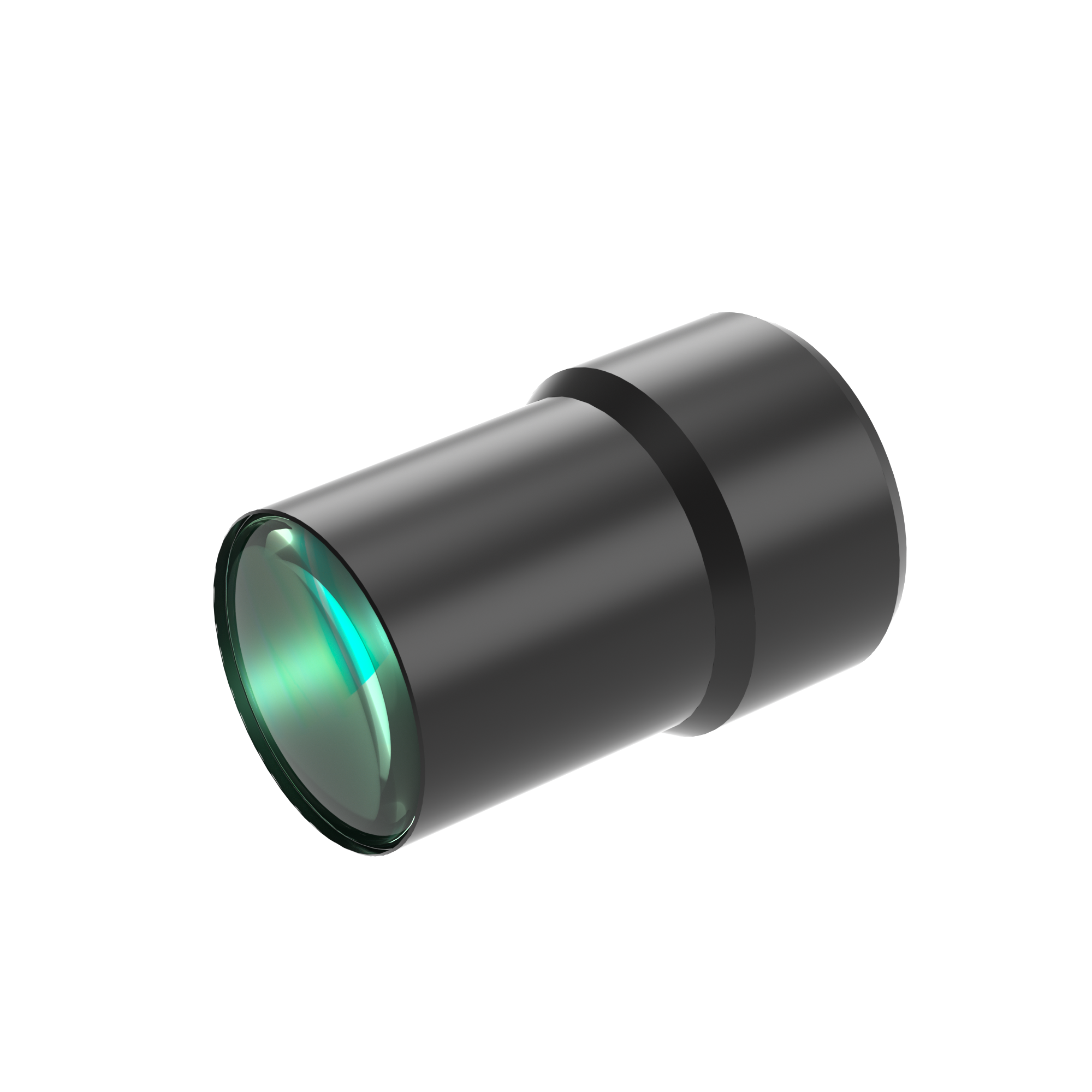

1.2" 39.73mm Fixed Magnification Focal Length Lens | WWT121-05-80 COOLENS®

Name: 1.2" 39.73mm Fixed Magnification Focal Length Lens | WWT121-05-80 COOLENS®
Brand: COOLENS
SKU: WWT121-05-80
Price: 254 USD
Availability: InStock
Rating: 0 (0 reviews)

WWT121-05-80

Image Circle:19.2(1.2") Focal Length:39.73mm Magnification:0.5X WD:80mm MTF30 (lp/mm):116 Mount:C

$254.00 USD

Quantity

Description

Model NO.	WWT121-05-80	Image Circle Diameter (Φmm)	19.2(1.2")
Focal Length(mm)	39.73	Magnification(x)	0.5
Working Distance(mm)	80	MTF30 (lp/mm)	116
Type	Fixed Magnification Focal Length	Mount	C
NA	0.0416	Best Aperture(f/#)	6
Object Resolution(μm)	8.1	Depth of Field(mm)	1.9
TV Distortion	0.01	Length (mm)	60.3
Measured Depth of Field (mm)	0.8	Filter Screw Size	M30x0.5
Field of View (mm x mm)

1/2” IMX530/540（14.6x12.6）		29.2x25.2

1.2" 39.73mm Fixed Magnification Focal Length Lens | WWT121-05-80 COOLENS®

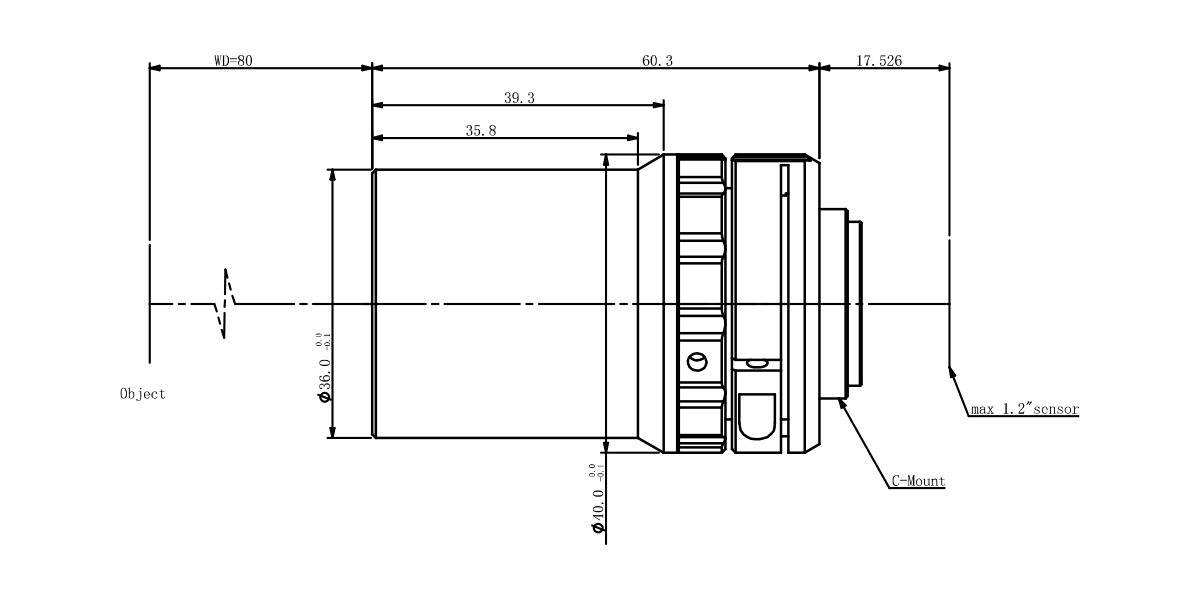

Dimensions

Naming Rule
