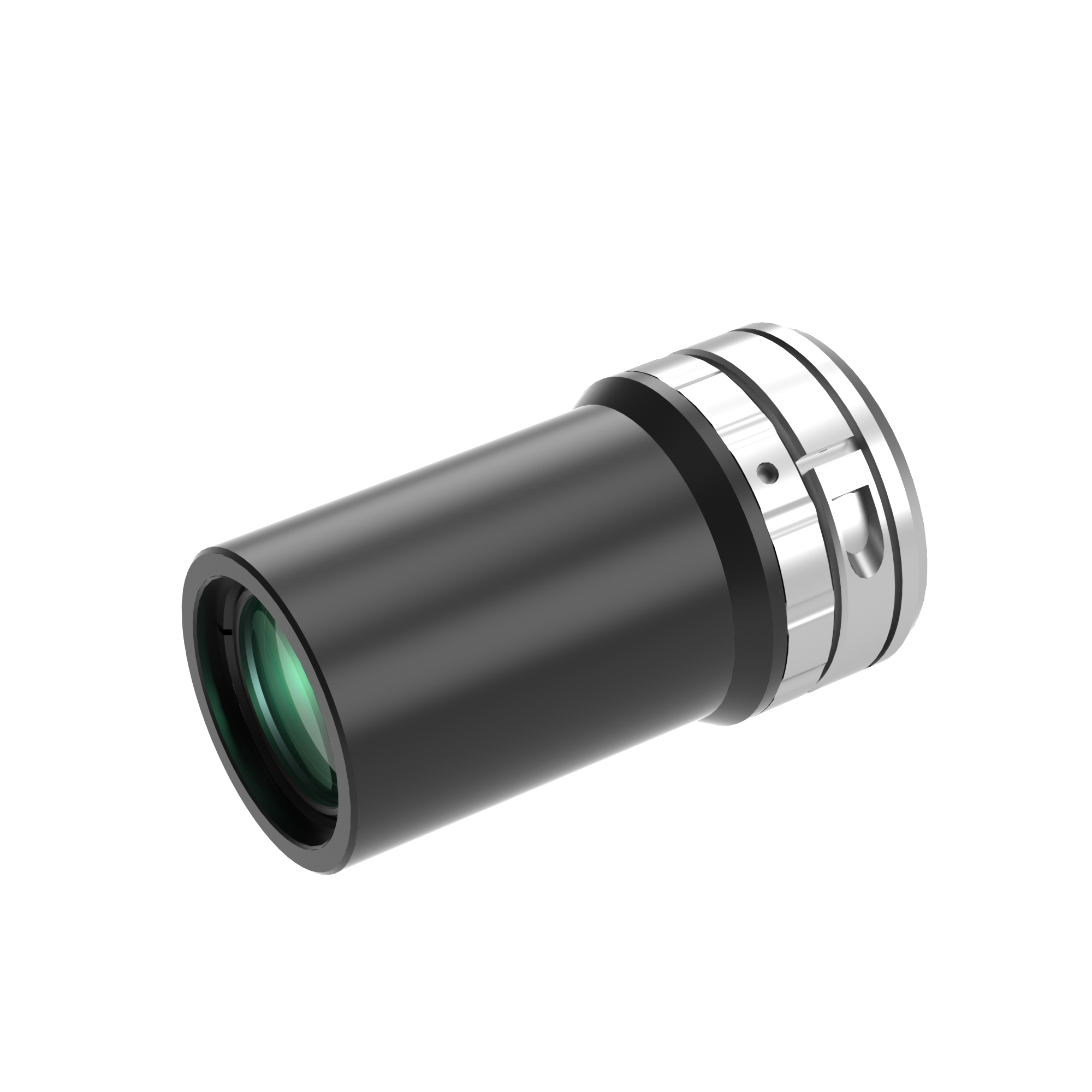

1.2" 58.76mm Fixed Magnification Focal Length Lens | WWT121-045-143 COOLENS®-OKLAB

Home / 1.2" 58.76mm Fixed Magnification Focal Length Lens | WWT121-045-143 COOLENS®

1.2" 58.76mm Fixed Magnification Focal Length Lens | WWT121-045-143 COOLENS®

Name: 1.2" 58.76mm Fixed Magnification Focal Length Lens | WWT121-045-143 COOLENS®
Brand: COOLENS
SKU: WWT121-045-143
Price: 254 USD
Availability: InStock
Rating: 0 (0 reviews)

WWT121-045-143

Image Circle:19.2(1.2") Focal Length:58.76mm Magnification:0.45X WD:143mm MTF30 (lp/mm):136 Mount:C

$254.00 USD

Quantity

Description

Model NO.	WWT121-045-143	Image Circle Diameter (Φmm)	19.2(1.2")
Focal Length(mm)	58.76	Magnification(x)	0.45
Working Distance(mm)	143	MTF30 (lp/mm)	136
Type	Fixed Magnification Focal Length	Mount	C
NA	0.0376	Best Aperture(f/#)	6
Object Resolution(μm)	8.9	Depth of Field(mm)	2.4
TV Distortion	0.15	Length (mm)	70.9
Measured Depth of Field (mm)	0.8	Filter Screw Size	M30x0.5
Field of View (mm x mm)

1/2” IMX530/540（14.6x12.6）		32.4x28

1.2" 58.76mm Fixed Magnification Focal Length Lens | WWT121-045-143 COOLENS®

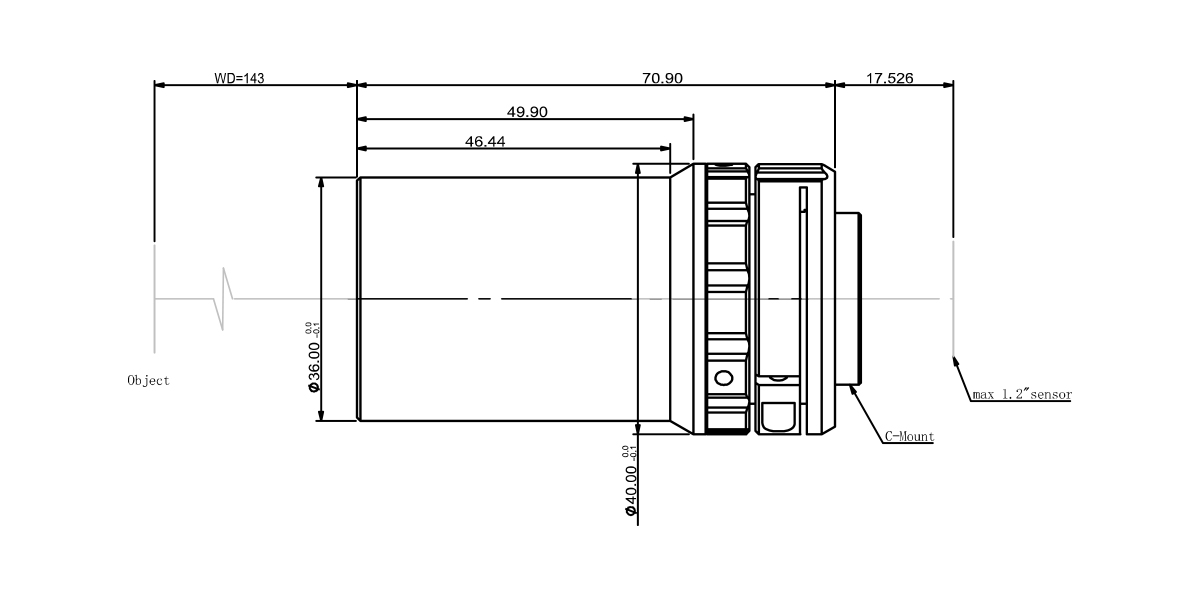

Dimensions

Naming Rule
