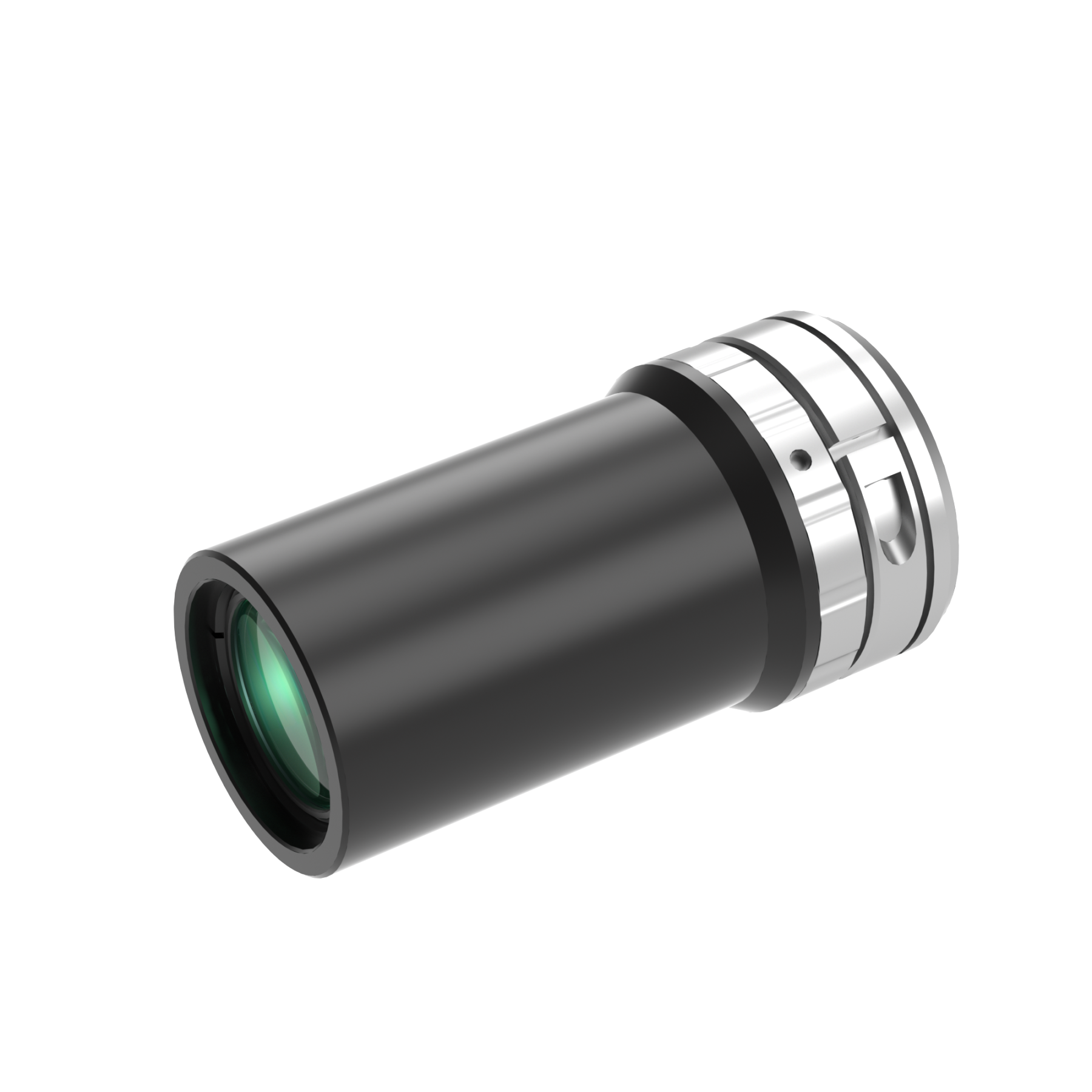

1.2" 61.8mm Fixed Magnification Focal Length Lens | WWT121-055-124 COOLENS®-OKLAB

Home / 1.2" 61.8mm Fixed Magnification Focal Length Lens | WWT121-055-124 COOLENS®

1.2" 61.8mm Fixed Magnification Focal Length Lens | WWT121-055-124 COOLENS®

Name: 1.2" 61.8mm Fixed Magnification Focal Length Lens | WWT121-055-124 COOLENS®
Brand: COOLENS
SKU: WWT121-055-124
Price: 254 USD
Availability: InStock
Rating: 0 (0 reviews)

WWT121-055-124

Image Circle:20.0(1.2") Focal Length:61.8mm Magnification:0.55X WD:124mm MTF30 (lp/mm):120 Mount:C

$254.00 USD

Quantity

Description

Model NO.	WWT121-055-124	Image Circle Diameter (Φmm)	20.0(1.2")
Focal Length(mm)	61.8	Magnification(x)	0.55
Working Distance(mm)	124	MTF30 (lp/mm)	120
Type	Fixed Magnification Focal Length	Mount	C
NA	0.0458	Best Aperture(f/#)	6
Object Resolution(μm)	7.3	Depth of Field(mm)	1.6
TV Distortion	0.25	Length (mm)	75.8
Measured Depth of Field (mm)	0.6	Filter Screw Size	M30x0.5
Field of View (mm x mm)

1/2” IMX530/540（14.6x12.6）		26.5x22.9

1.2" 61.8mm Fixed Magnification Focal Length Lens | WWT121-055-124 COOLENS®

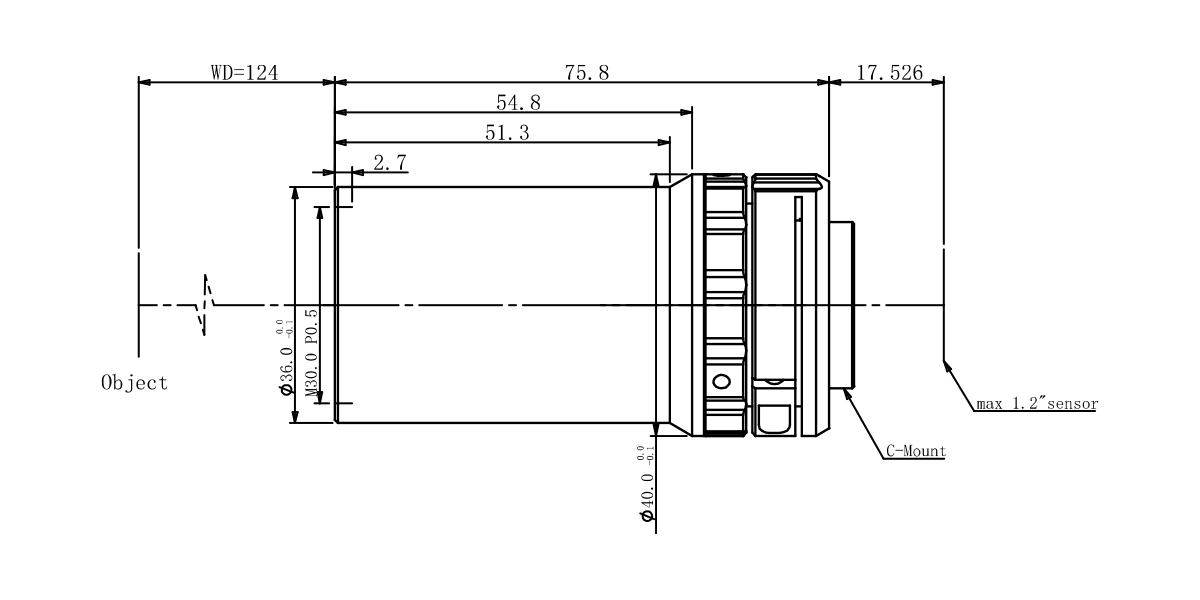

Dimensions

Naming Rule
