Model NO. |
WWT121-06-117 |
Image Circle Diameter (Φmm) |
19.2(1.2") |
Focal Length(mm) |
63.48 |
Magnification(x) |
0.6 |
Working Distance(mm) |
117 |
MTF30 (lp/mm) |
108 |
Type |
Fixed Magnification Focal Length |
Mount |
C |
NA |
0.0500 |
Best Aperture(f/#) |
6 |
Object Resolution(μm) |
6.7 |
Depth of Field(mm) |
1.3 |
TV Distortion |
0.3 |
Length (mm) |
78.6 |
Measured Depth of Field (mm) |
0.6 |
Filter Screw Size |
M30x0.5 |
Field of View (mm x mm) |
1/2” IMX530/540(14.6x12.6) |
24.3x21 |

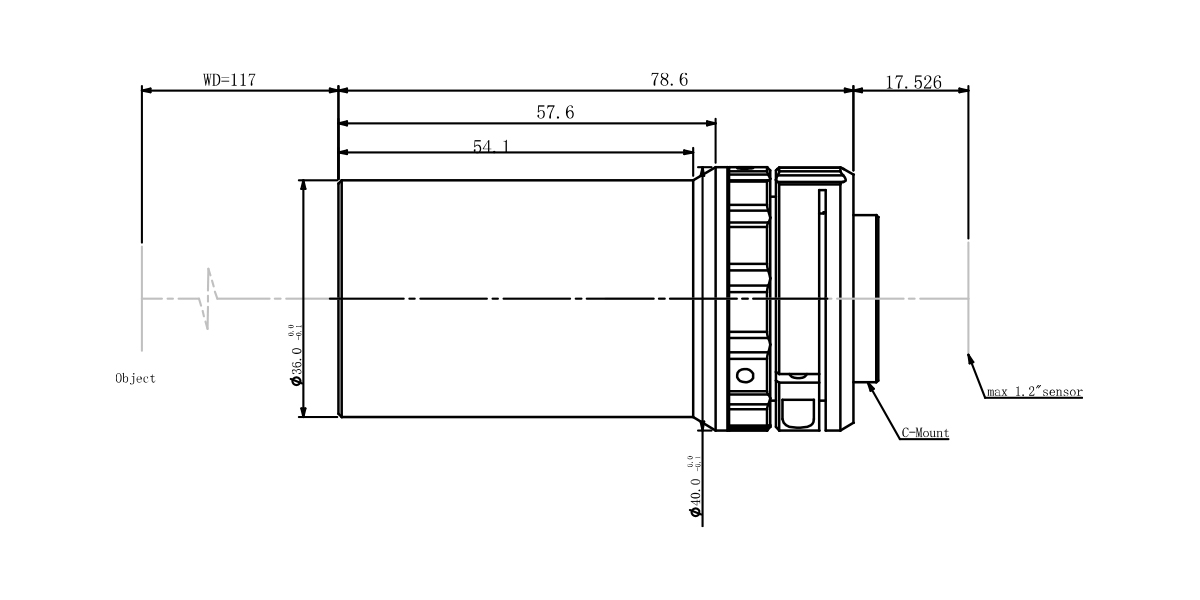

Dimensions
![]()
Naming Rule
![]()
