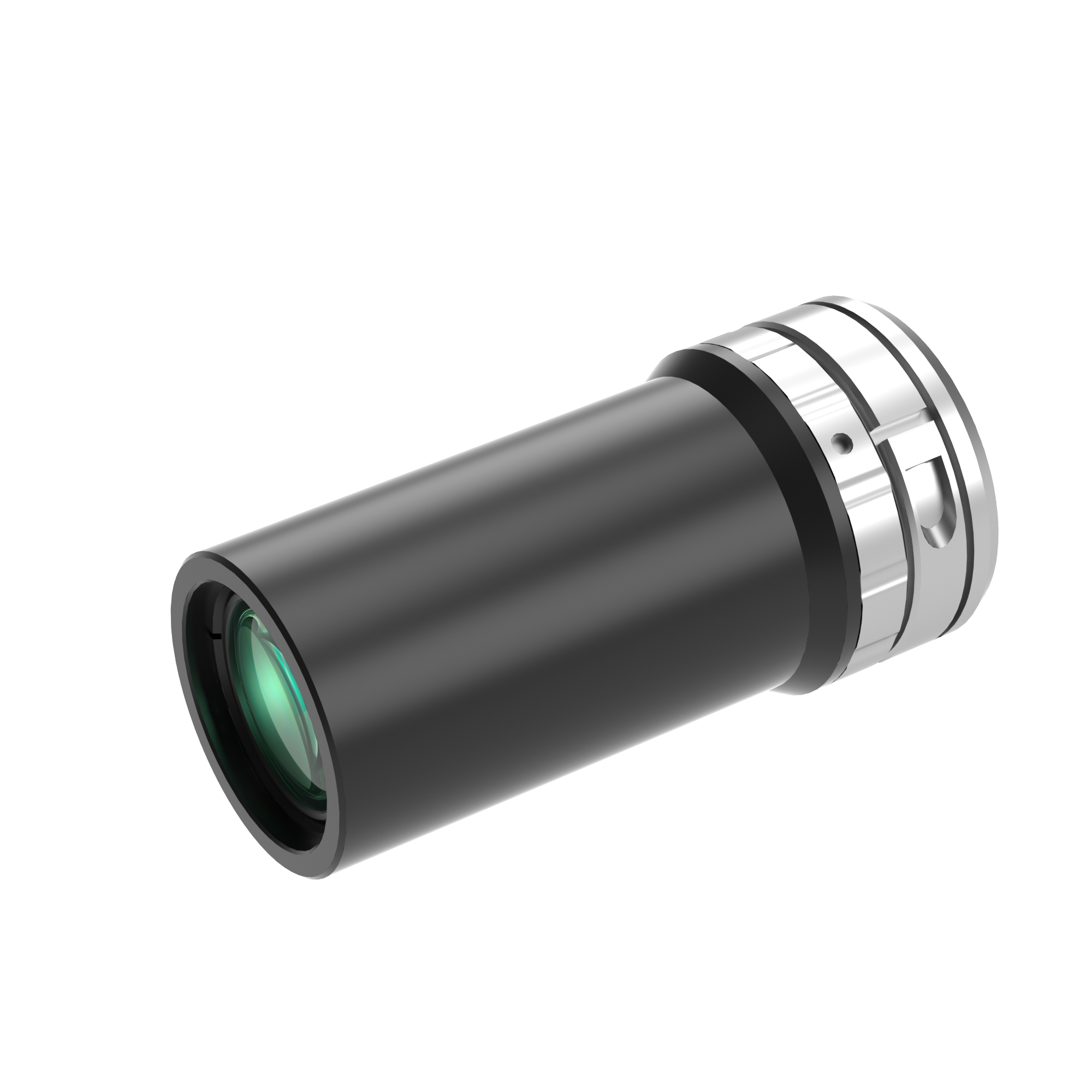

1.2" 65.45mm Fixed Magnification Focal Length Lens | WWT121-065-110 COOLENS®-OKLAB

Home / 1.2" 65.45mm Fixed Magnification Focal Length Lens | WWT121-065-110 COOLENS®

1.2" 65.45mm Fixed Magnification Focal Length Lens | WWT121-065-110 COOLENS®

Name: 1.2" 65.45mm Fixed Magnification Focal Length Lens | WWT121-065-110 COOLENS®
Brand: COOLENS
SKU: WWT121-065-110
Price: 254 USD
Availability: InStock
Rating: 0 (0 reviews)

WWT121-065-110

Image Circle:19.2(1.2") Focal Length:65.45mm Magnification:0.65X WD:110mm MTF30 (lp/mm):94 Mount:C

$254.00 USD

Quantity

Description

Model NO.	WWT121-065-110	Image Circle Diameter (Φmm)	19.2(1.2")
Focal Length(mm)	65.45	Magnification(x)	0.65
Working Distance(mm)	110	MTF30 (lp/mm)	94
Type	Fixed Magnification Focal Length	Mount	C
NA	0.0546	Best Aperture(f/#)	6
Object Resolution(μm)	6.1	Depth of Field(mm)	1.1
TV Distortion	0.35	Length (mm)	81.8
Measured Depth of Field (mm)	0.5	Filter Screw Size	M30x0.5
Field of View (mm x mm)

1/2” IMX530/540（14.6x12.6）		22.5x19.4

1.2" 65.45mm Fixed Magnification Focal Length Lens | WWT121-065-110 COOLENS®

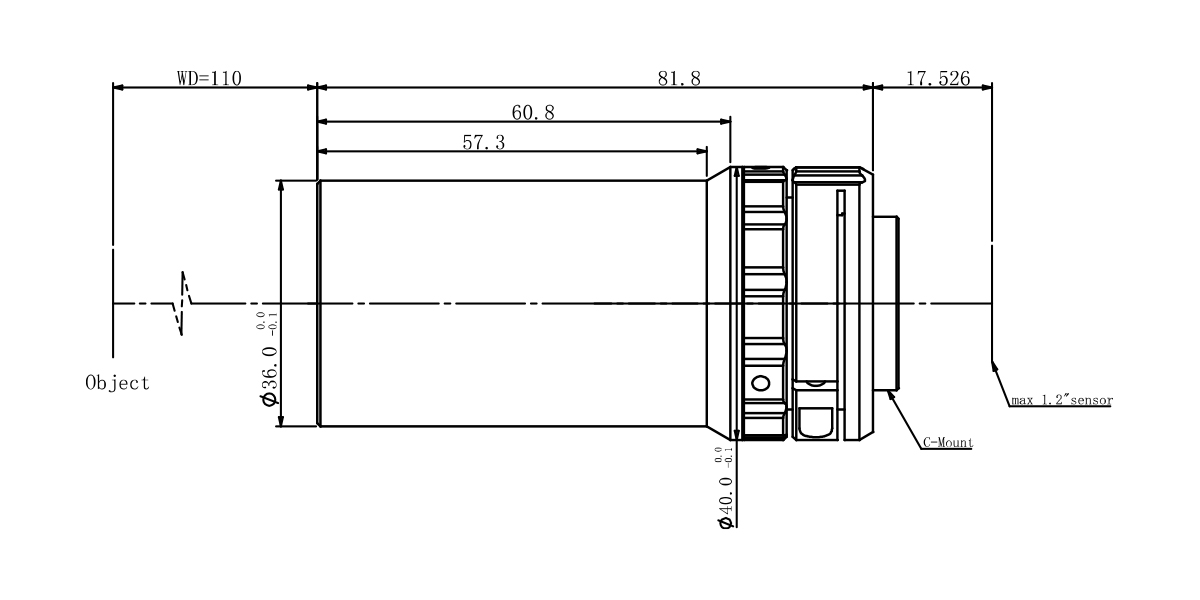

Dimensions

Naming Rule
