1.2" 71.41mm Fixed Magnification Focal Length Lens | WWT121-08-98 COOLENS®

Name: 1.2" 71.41mm Fixed Magnification Focal Length Lens | WWT121-08-98 COOLENS®
Brand: COOLENS
SKU: WWT121-08-98
Price: 254 USD
Availability: InStock
Rating: 0 (0 reviews)

WWT121-08-98

Image Circle:19.2(1.2") Focal Length:71.41mm Magnification:0.8X WD:98mm MTF30 (lp/mm):78 Mount:C

$254.00 USD

Quantity

Description

Model NO.	WWT121-08-98	Image Circle Diameter (Φmm)	19.2(1.2")
Focal Length(mm)	71.41	Magnification(x)	0.8
Working Distance(mm)	98	MTF30 (lp/mm)	78
Type	Fixed Magnification Focal Length	Mount	C
NA	0.0500	Best Aperture(f/#)	8
Object Resolution(μm)	6.7	Depth of Field(mm)	1
TV Distortion	0.4	Length (mm)	88.9
Measured Depth of Field (mm)	0.3	Filter Screw Size	M30x0.5
Field of View (mm x mm)

1/2” IMX530/540（14.6x12.6）		18.3x15.8

1.2" 71.41mm Fixed Magnification Focal Length Lens | WWT121-08-98 COOLENS®

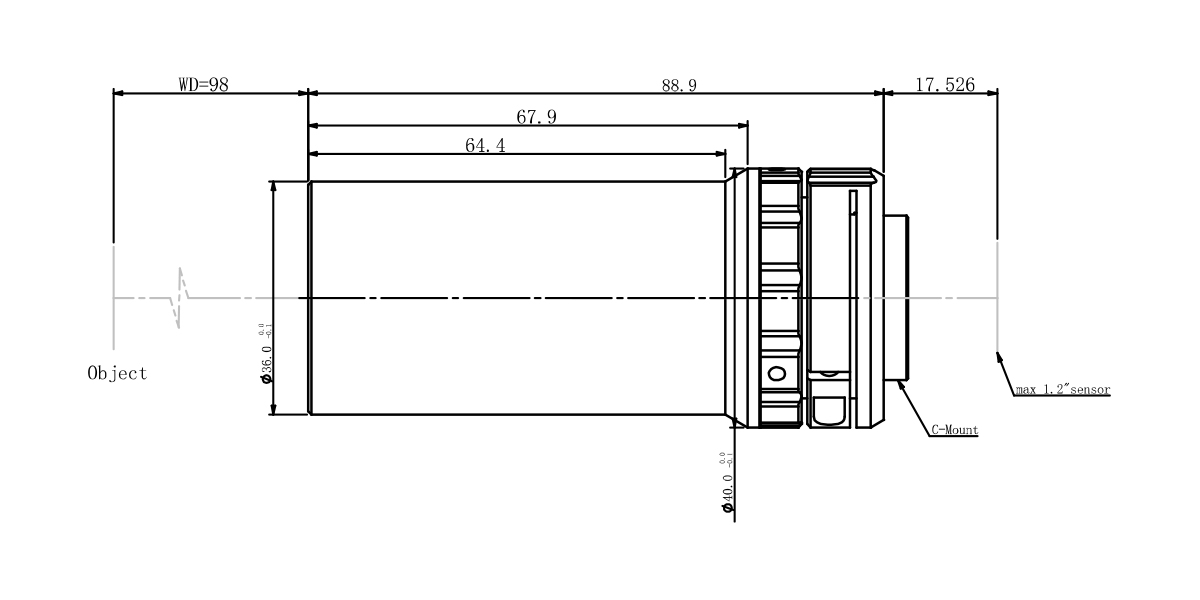

Dimensions

Naming Rule
