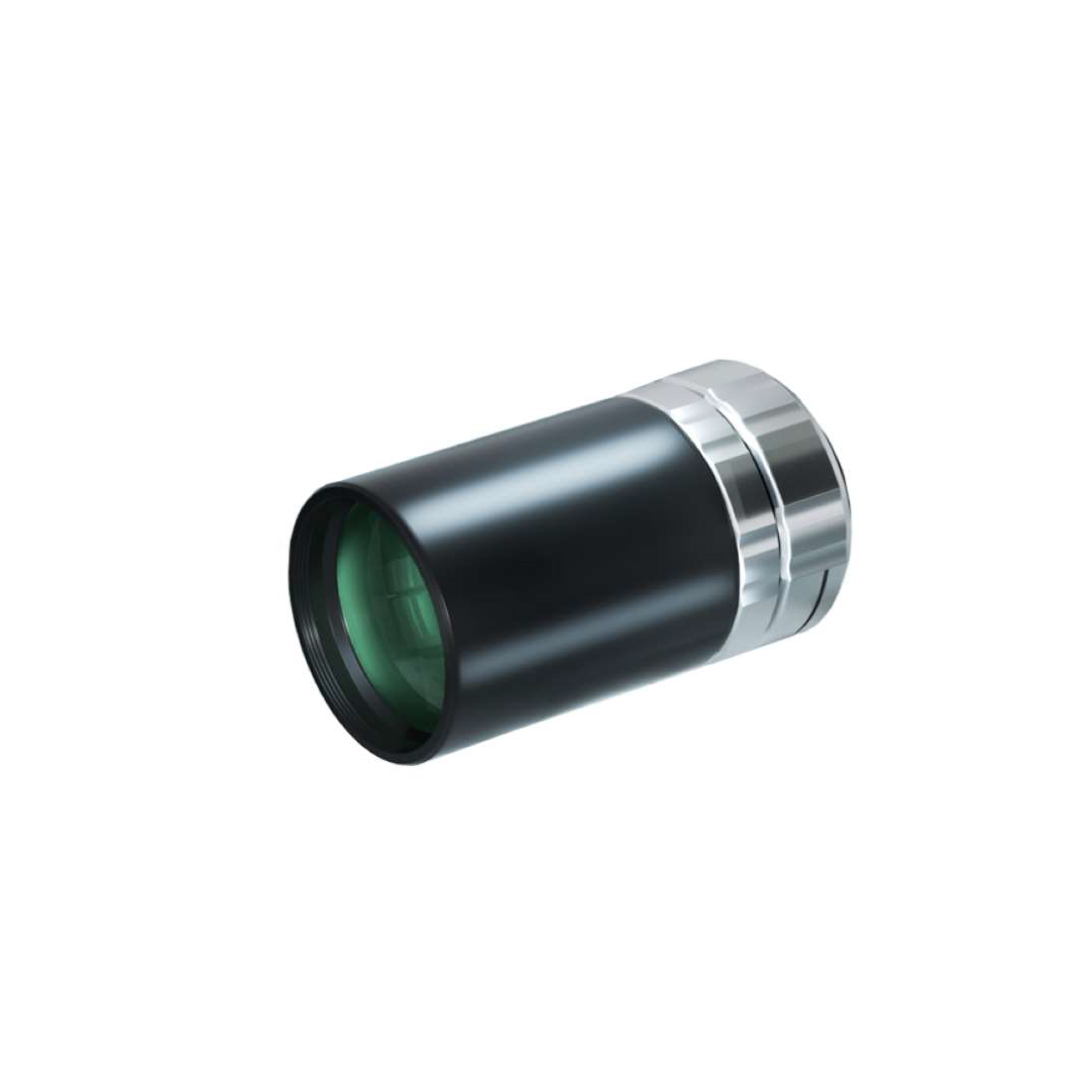

1.2" 73.66mm Fixed Magnification Focal Length Lens | WWT121-085-94 COOLENS®
1.2" 73.66mm Fixed Magnification Focal Length Lens | WWT121-085-94 COOLENS®
Home / 1.2" 73.66mm Fixed Magnification Focal Length Lens | WWT121-085-94 COOLENS®

1.2" 73.66mm Fixed Magnification Focal Length Lens | WWT121-085-94 COOLENS®

WWT121-085-94
Image Circle:20.0(1.2") Focal Length:73.66mm Magnification:0.85X WD:94mm MTF30 (lp/mm):73 Mount:C
$254.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$254.00 USD each
Description

Model NO. WWT121-085-94 Image Circle Diameter (Φmm) 20.0(1.2")
Focal Length(mm) 73.66 Magnification(x) 0.85
Working Distance(mm) 94 MTF30 (lp/mm) 73
Type Fixed Magnification Focal Length Mount C
NA 0.0532 Best Aperture(f/#) 8
Object Resolution(μm) 6.3 Depth of Field(mm) 0.9
TV Distortion 0.45 Length (mm) 91.7
Measured Depth of Field (mm) / Filter Screw Size M30x0.5
Field of View (mm x mm)
1/2” IMX530/540（14.6x12.6） 17.2x14.8

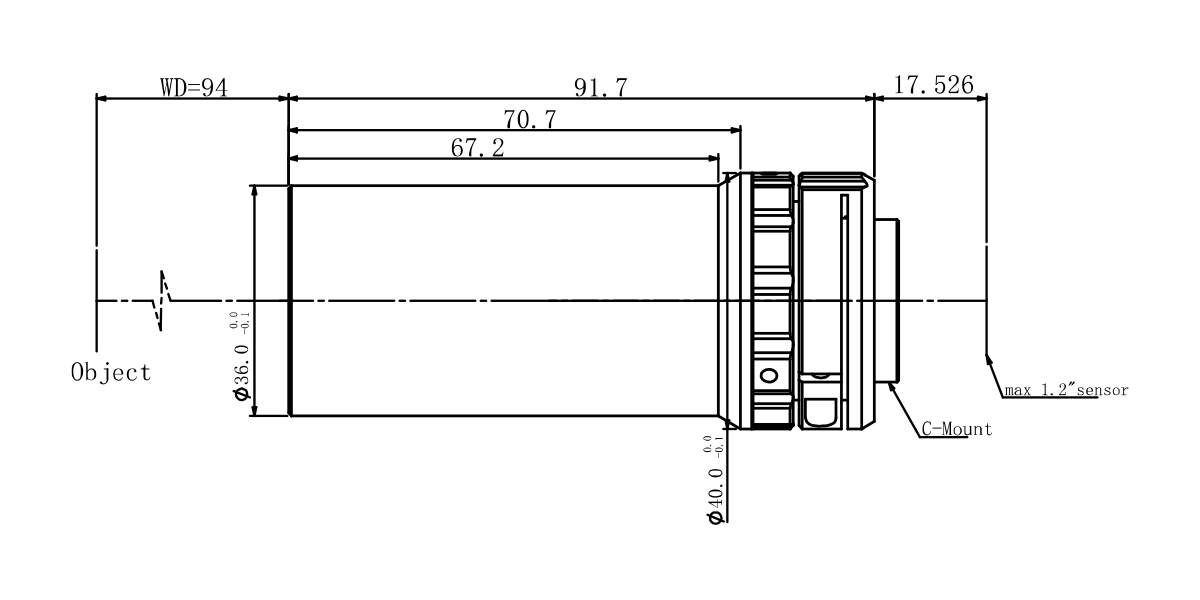

Dimensions

Naming Rule
