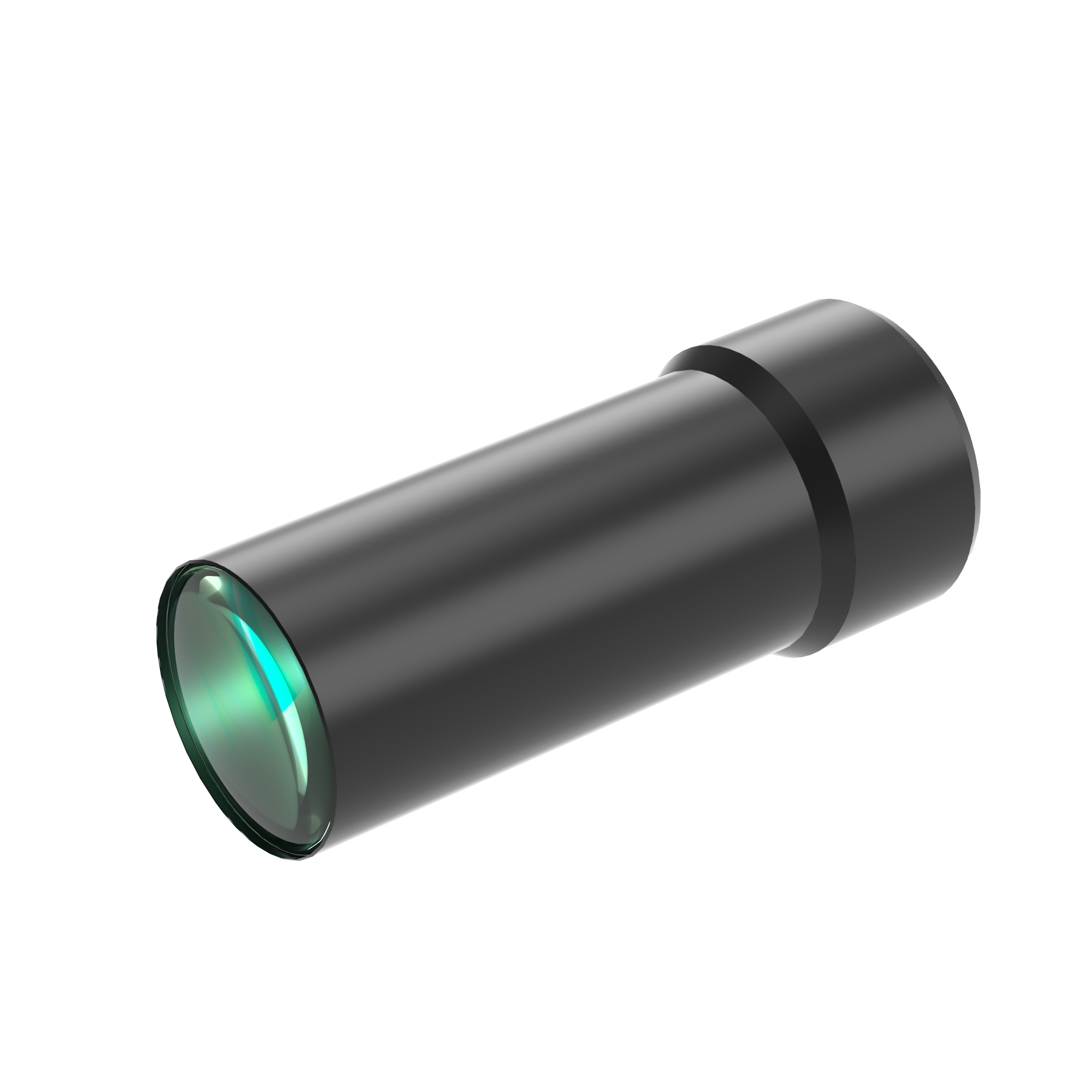

1.2" 76.09mm Fixed Magnification Focal Length Lens | WWT121-09-91 COOLENS®

Name: 1.2" 76.09mm Fixed Magnification Focal Length Lens | WWT121-09-91 COOLENS®
Brand: COOLENS
SKU: WWT121-09-91
Price: 254 USD
Availability: InStock
Rating: 0 (0 reviews)

WWT121-09-91

Image Circle:19.2(1.2") Focal Length:76.09mm Magnification:0.9X WD:91mm MTF30 (lp/mm):65 Mount:C

$254.00 USD

Quantity

Description

Model NO.	WWT121-09-91	Image Circle Diameter (Φmm)	19.2(1.2")
Focal Length(mm)	76.09	Magnification(x)	0.9
Working Distance(mm)	91	MTF30 (lp/mm)	65
Type	Fixed Magnification Focal Length	Mount	C
NA	0.0562	Best Aperture(f/#)	8
Object Resolution(μm)	6	Depth of Field(mm)	0.8
TV Distortion	0.5	Length (mm)	94.4
Measured Depth of Field (mm)	0.4	Filter Screw Size	M30x0.5
Field of View (mm x mm)

1/2” IMX530/540（14.6x12.6）		16.2x14.0

1.2" 76.09mm Fixed Magnification Focal Length Lens | WWT121-09-91 COOLENS®

Dimensions

Naming Rule
