Model NO. | WWT121-02-413 | Image Circle Diameter (Φmm) | 20.0(1.2") | ||||
Focal Length(mm) | 76 | Magnification(x) | 0.2 | ||||
Working Distance(mm) | 413 | MTF30 (lp/mm) | 124 | ||||
Type | Fixed Magnification Focal Length | Mount | C | ||||
NA | 0.0176 | Best Aperture(f/#) | 5.6 | ||||
Object Resolution(μm) | 19.1 | Depth of Field(mm) | 11.2 | ||||
TV Distortion | 0.05 | Length (mm) | 77 | ||||
Measured Depth of Field (mm) | 3.6 | Filter Screw Size | M30x0.5 | ||||
Field of View (mm x mm) | |||||||
1/2” IMX530/540(14.6x12.6) | 73x63 |

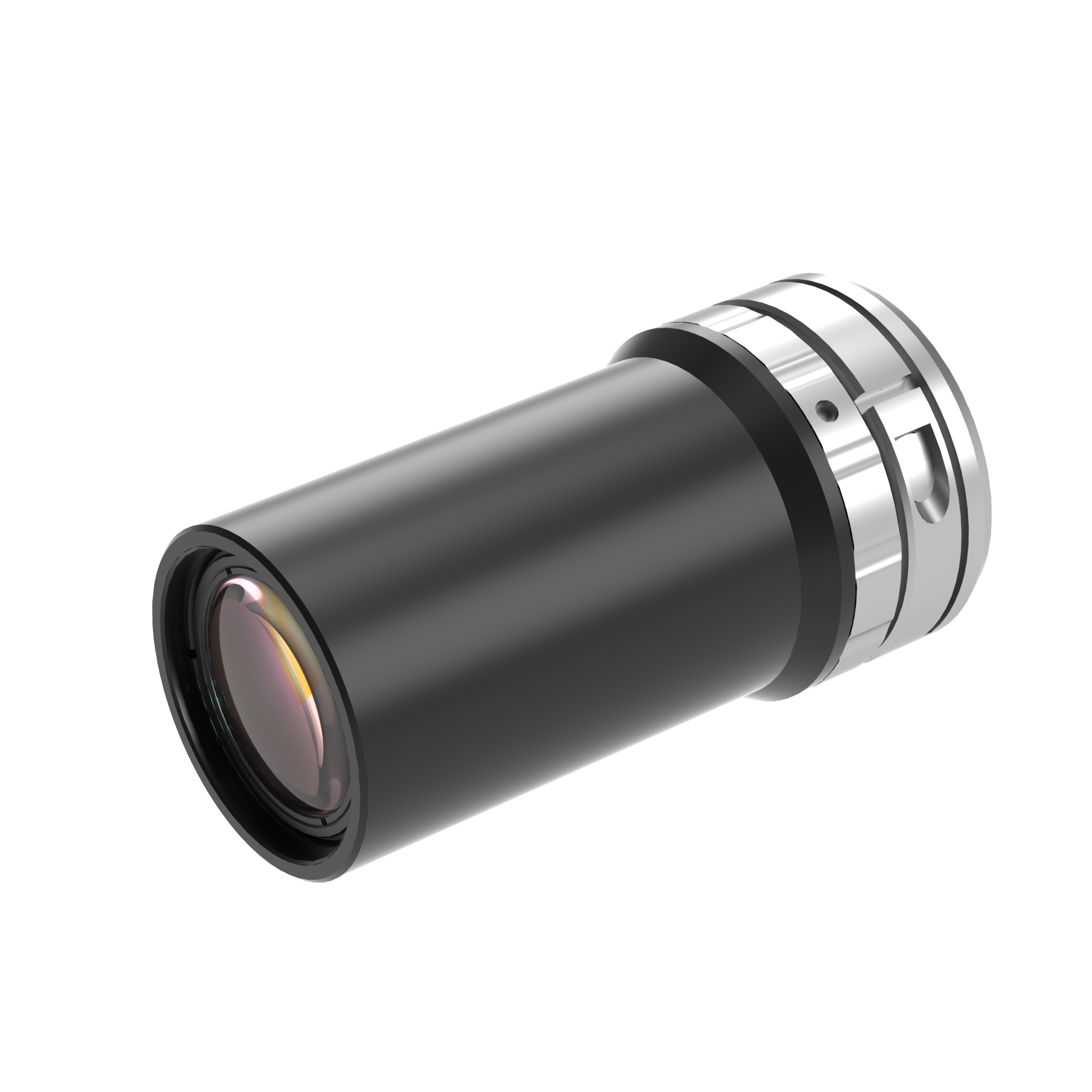

1.2" 76mm Fixed Magnification Focal Length Lens | WWT121-02-413 COOLENS®
$254.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | WWT121-02-413 | Image Circle Diameter (Φmm) | 20.0(1.2") | ||||
Focal Length(mm) | 76 | Magnification(x) | 0.2 | ||||
Working Distance(mm) | 413 | MTF30 (lp/mm) | 124 | ||||
Type | Fixed Magnification Focal Length | Mount | C | ||||
NA | 0.0176 | Best Aperture(f/#) | 5.6 | ||||
Object Resolution(μm) | 19.1 | Depth of Field(mm) | 11.2 | ||||
TV Distortion | 0.05 | Length (mm) | 77 | ||||
Measured Depth of Field (mm) | 3.6 | Filter Screw Size | M30x0.5 | ||||
Field of View (mm x mm) | |||||||
1/2” IMX530/540(14.6x12.6) | 73x63 |
