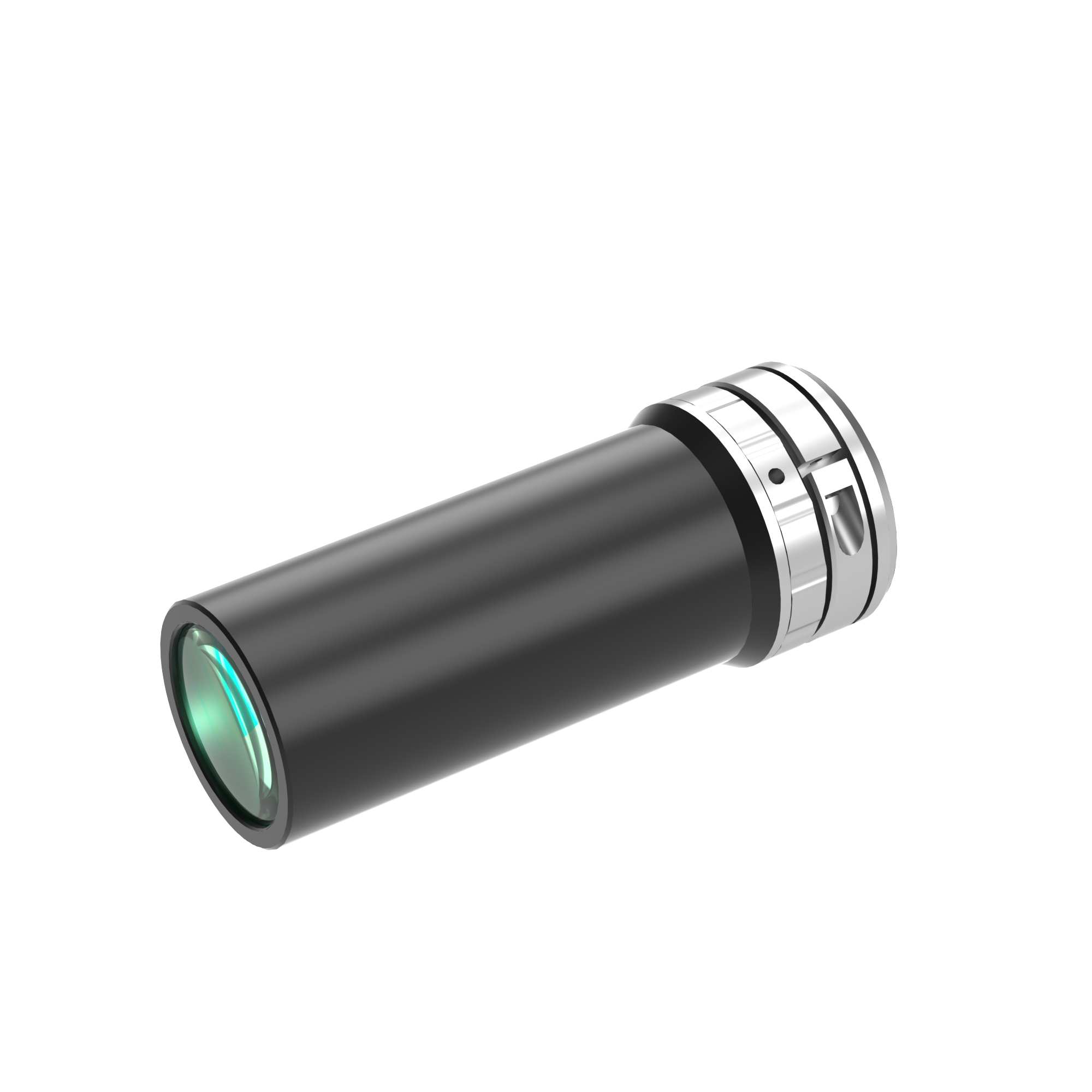

1.2" 78.49mm Fixed Magnification Focal Length Lens | WWT121-095-86 COOLENS®

WWT121-095-86
Image Circle:20.0(1.2") Focal Length:78.49mm Magnification:0.95X WD:86mm MTF30 (lp/mm):60 Mount:C
$254.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$254.00 USD each
Description

Model NO. WWT121-095-86 Image Circle Diameter (Φmm) 20.0(1.2")
Focal Length(mm) 78.49 Magnification(x) 0.95
Working Distance(mm) 86 MTF30 (lp/mm) 60
Type Fixed Magnification Focal Length Mount C
NA 0.059 Best Aperture(f/#) 8
Object Resolution(μm) 6 Depth of Field(mm) 0.7
TV Distortion 0.5 Length (mm) 98.7
Measured Depth of Field (mm) 0.4 Filter Screw Size M30x0.5
Field of View (mm x mm)
1/2” IMX530/540（14.6x12.6） 15.4x13.3

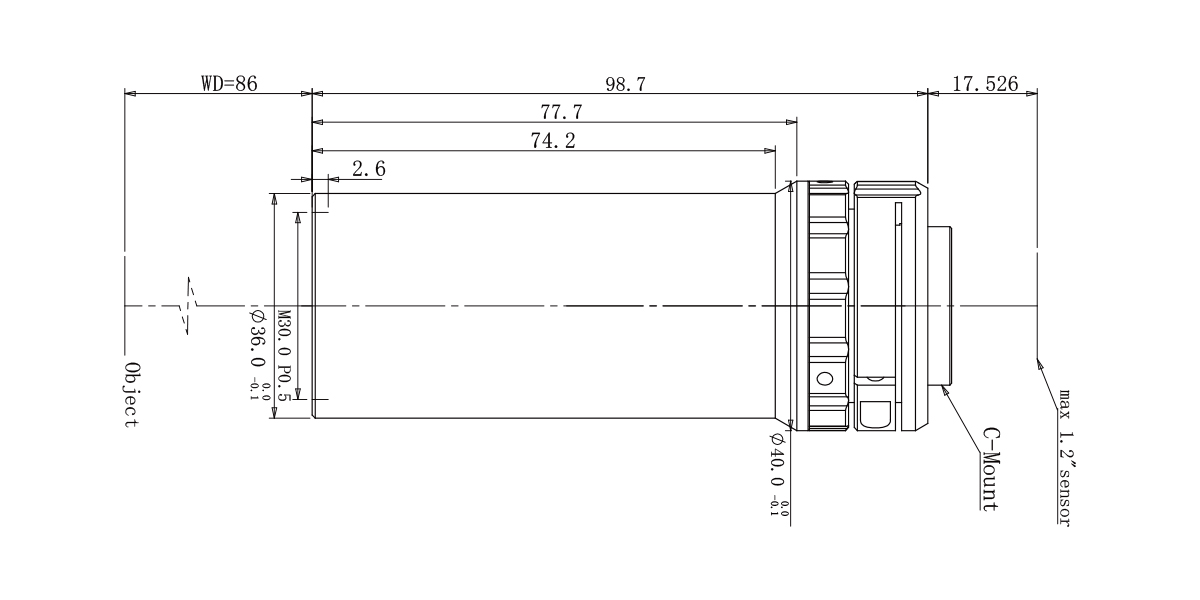

Dimensions

Naming Rule
