1.2" 84.09mm Fixed Magnification Focal Length Lens | WWT121-085-130 COOLENS®-OKLAB

Home / 1.2" 84.09mm Fixed Magnification Focal Length Lens | WWT121-085-130 COOLENS®

1.2" 84.09mm Fixed Magnification Focal Length Lens | WWT121-085-130 COOLENS®

Name: 1.2" 84.09mm Fixed Magnification Focal Length Lens | WWT121-085-130 COOLENS®
Brand: COOLENS
SKU: WWT121-085-130
Price: 254 USD
Availability: InStock
Rating: 0 (0 reviews)

WWT121-085-130

Image Circle:20.0(1.2") Focal Length:84.09mm Magnification:0.85X WD:130mm MTF30 (lp/mm):73 Mount:C

$254.00 USD

Quantity

Description

Model NO.	WWT121-085-130	Image Circle Diameter (Φmm)	20.0(1.2")
Focal Length(mm)	84.09	Magnification(x)	0.85
Working Distance(mm)	130	MTF30 (lp/mm)	73
Type	Fixed Magnification Focal Length	Mount	C
NA	0.0444	Best Aperture(f/#)	9.5
Object Resolution(μm)	6.3	Depth of Field(mm)	1.1
TV Distortion	0.45	Length (mm)	108.3
Measured Depth of Field (mm)	0.4	Filter Screw Size	M30x0.5
Field of View (mm x mm)

1/2” IMX530/540（14.6x12.6）		17.2x14.8

1.2" 84.09mm Fixed Magnification Focal Length Lens | WWT121-085-130 COOLENS®

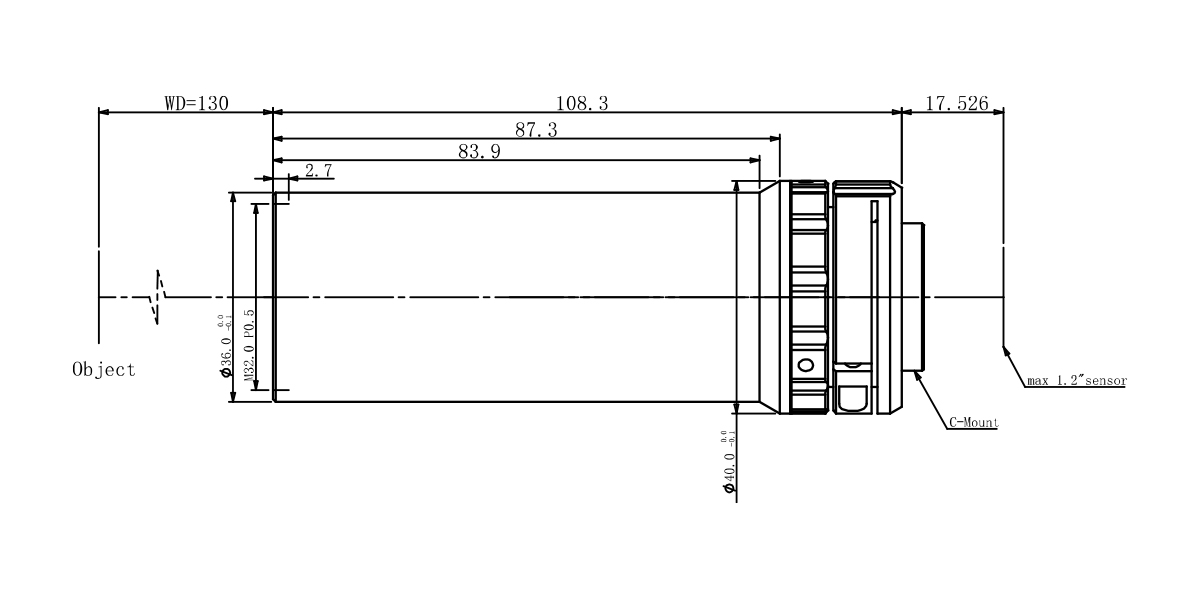

Dimensions

Naming Rule
