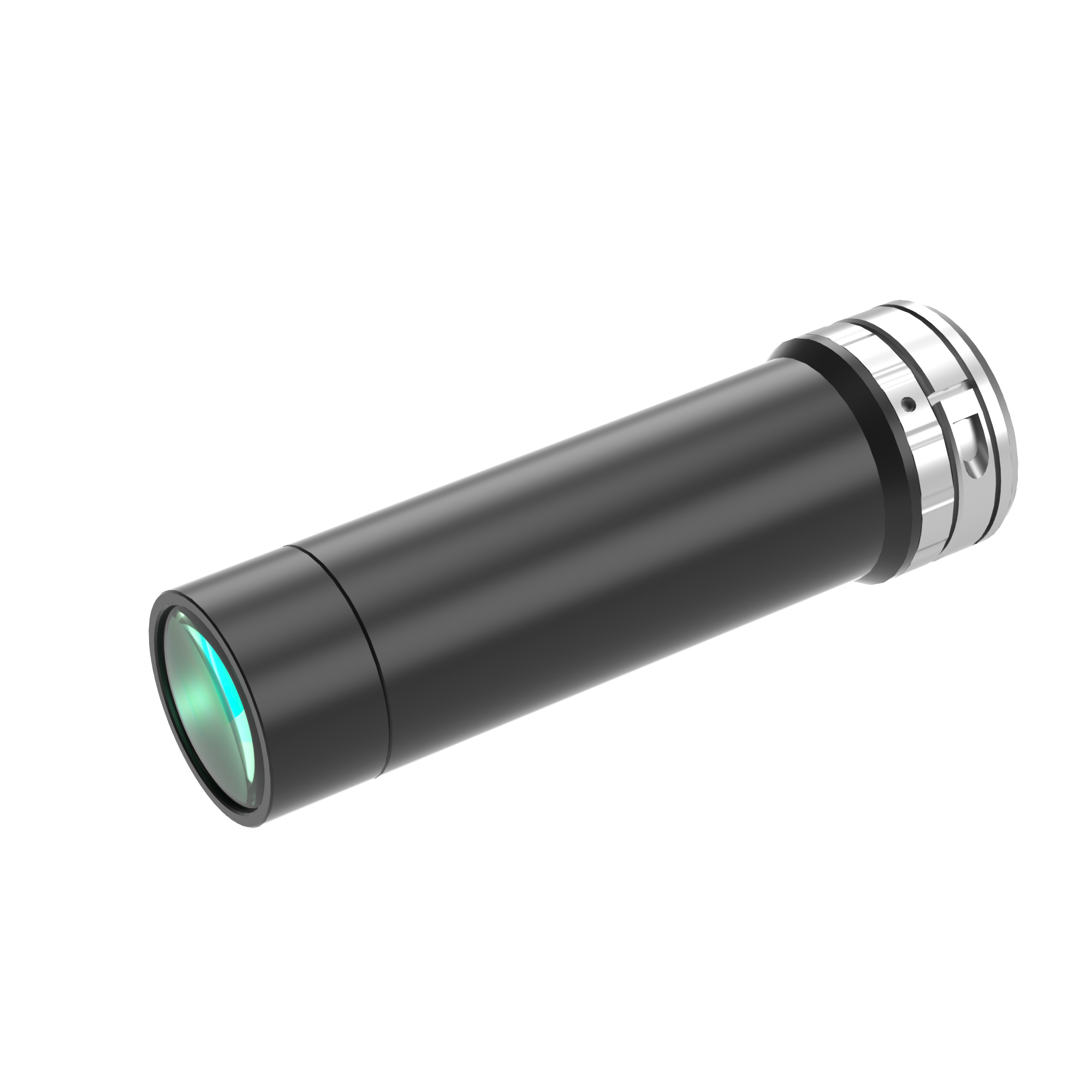

1.2" 84.92mm Fixed Magnification Focal Length Lens | WWT121-09-106 COOLENS®

Name: 1.2" 84.92mm Fixed Magnification Focal Length Lens | WWT121-09-106 COOLENS®
Brand: COOLENS
SKU: WWT121-09-106
Price: 254 USD
Availability: InStock
Rating: 0 (0 reviews)

WWT121-09-106

Image Circle:20.0(1.2") Focal Length:84.92mm Magnification:0.9X WD:106mm MTF30 (lp/mm):66 Mount:C

$254.00 USD

Quantity

Description

Model NO.	WWT121-09-106	Image Circle Diameter (Φmm)	20.0(1.2")
Focal Length(mm)	84.92	Magnification(x)	0.9
Working Distance(mm)	106	MTF30 (lp/mm)	66
Type	Fixed Magnification Focal Length	Mount	C
NA	0.0456	Best Aperture(f/#)	9.8
Object Resolution(μm)	7.4	Depth of Field(mm)	1
TV Distortion	0.57	Length (mm)	130.2
Measured Depth of Field (mm)	0.4	Filter Screw Size	M30x0.5
Field of View (mm x mm)

1/2” IMX530/540（14.6x12.6）		16.2x14.0

1.2" 84.92mm Fixed Magnification Focal Length Lens | WWT121-09-106 COOLENS®

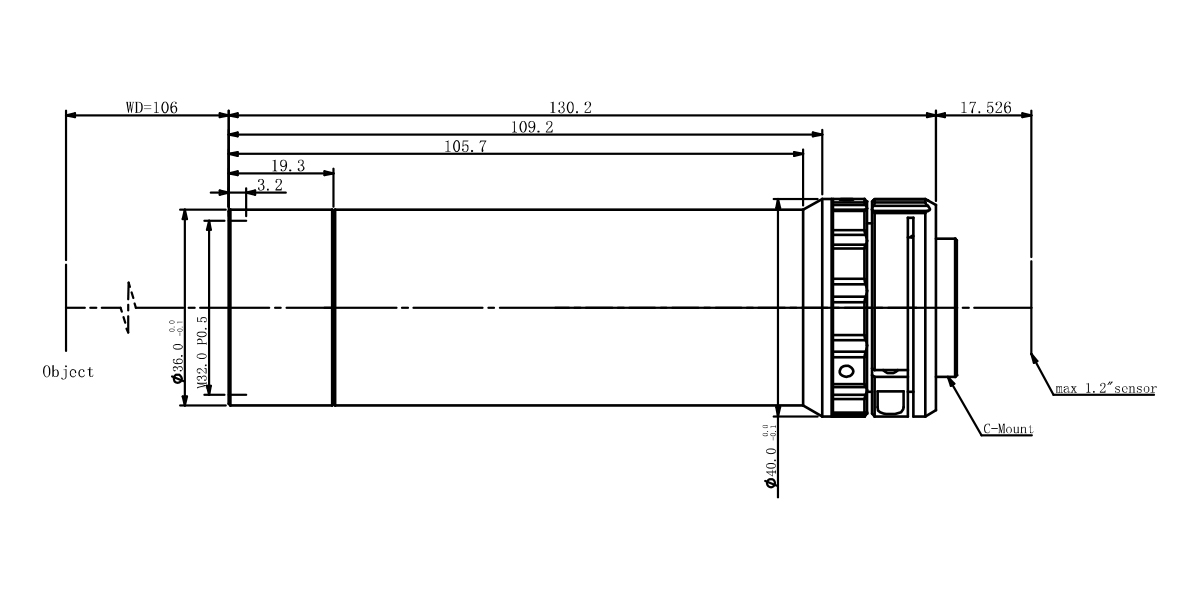

Dimensions

Naming Rule
