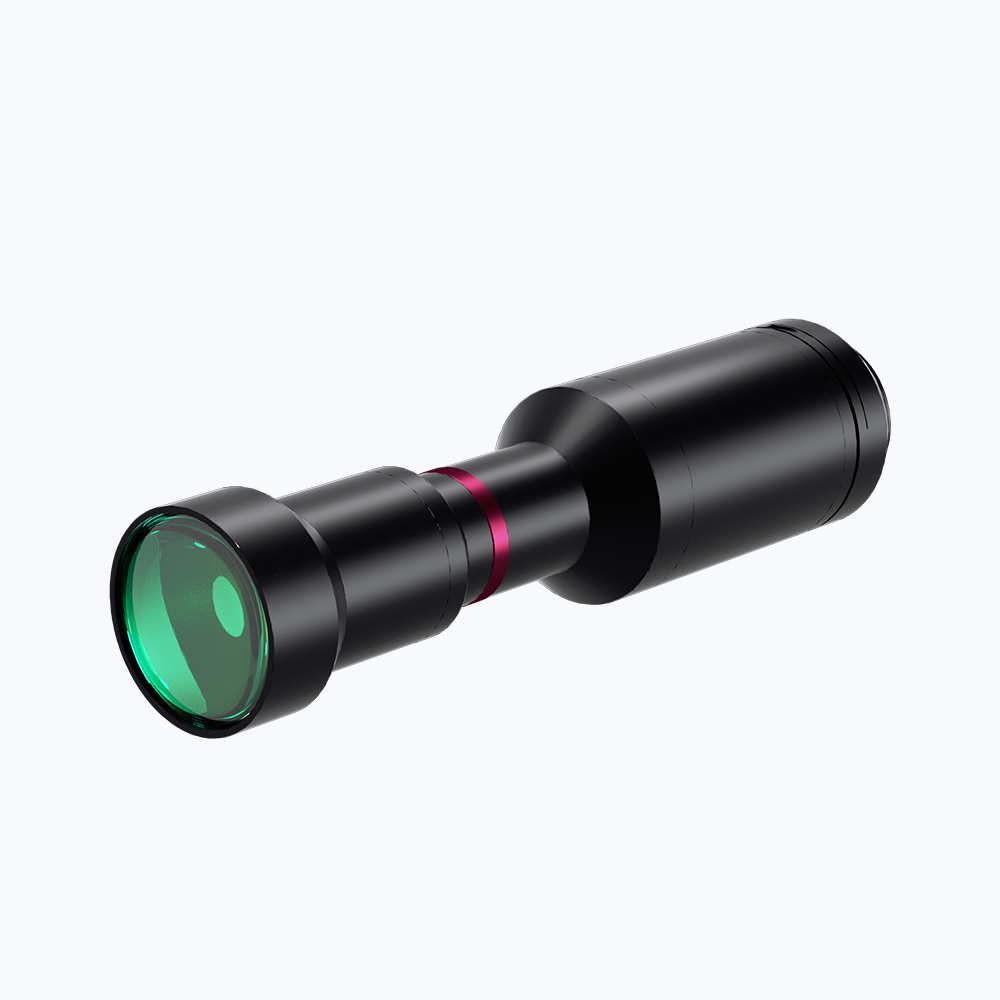

23K 1.3X Bi-Telecentric Lenses | DTCA23K-63-M95-AL COOLENS®

DTCA23K-63-M95-AL
$3,896.00 USD
Shipping calculated at checkout.
Quantity
23K 1.3X Bi-Telecentric Lenses | DTCA23K-63-M95-AL COOLENS®-OKLAB

Description

Model NO. DTCA23K-63-M95-AL Image Circle Diameter (Φmm) 82(23K)
Magnification(x) 1.3 Working Distance(mm) 146
NA 0.0460 Type Bi-Telecentric
Mount M95 Object Field of View(Φmm) 63
Best Aperture(f/#) 7.5 MTF30 (lp/mm) >124
Object Resolution(μm) 3.9 Depth of Field(mm) 0.4
Distortion Typical(% max) 0.03 Telecentricity Typical (°max) 0.04
Length of I/O(mm) 672 Length (mm) 513.5
Weight(kg) 5.5 Iris Adjustable No
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.05
Filter Screw Size M90x1.0
Field of View (mm × mm)
 DALSA 86M (64.32X37.2) 49.5x37.2
Linescan-16K 5um (23.04X23.04) 63

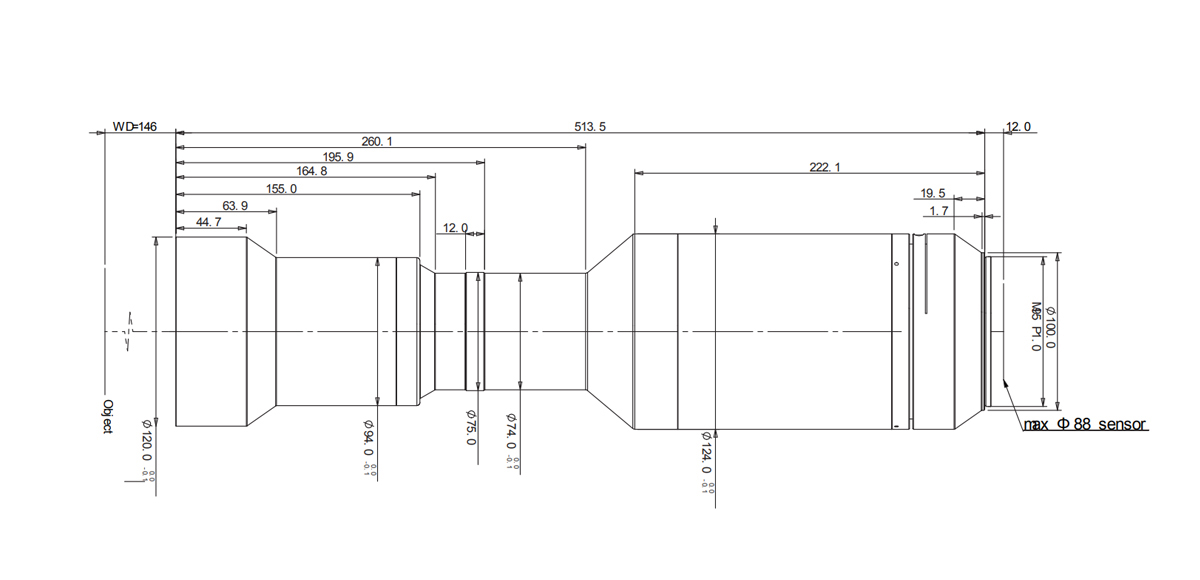

Dimensions

Naming Rule

Important Note
