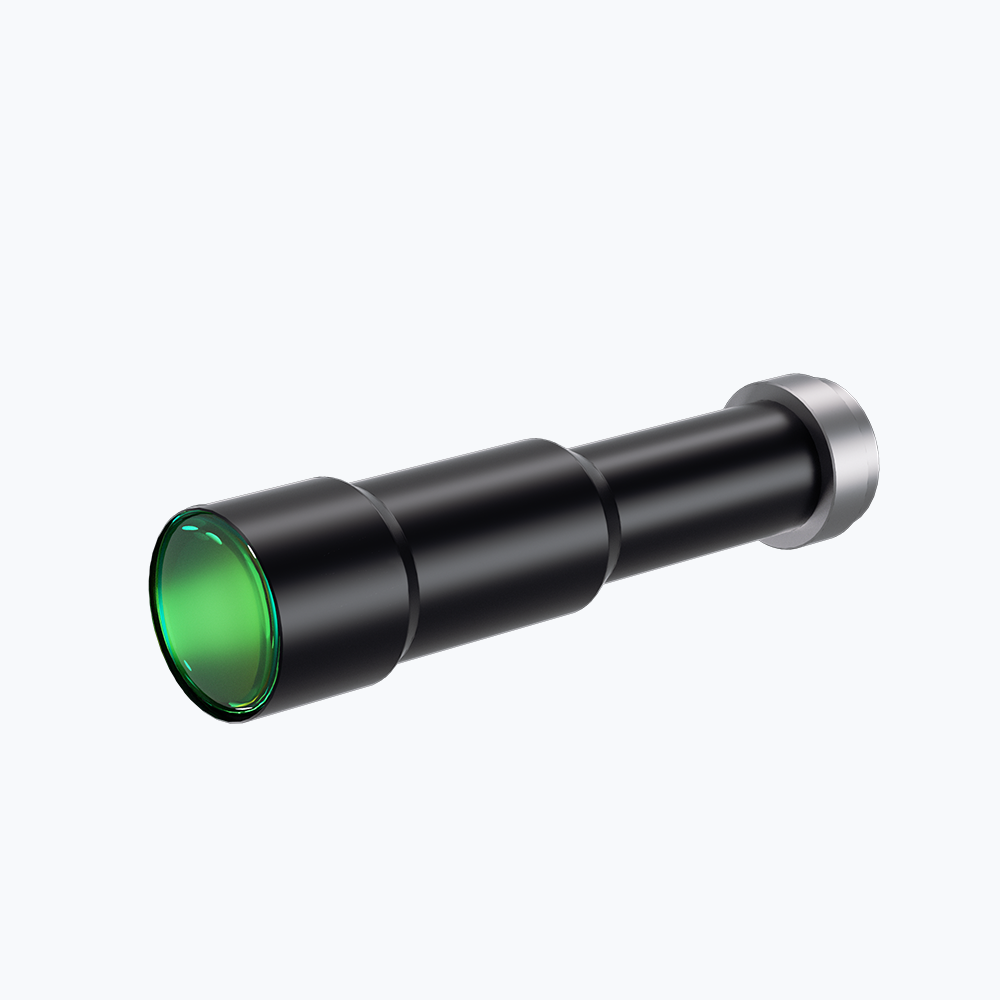

2/3" 1.5X Telecentric Lenses | WWH15-108ATV3 COOLENS®

$351.00 USD
Shipping calculated at checkout.
Quantity
2/3" 1.5X Telecentric Lenses | WWH15-108ATV3 COOLENS®-OKLAB

Description

Model NO. WWH15-108ATV3 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1.500 Working Distance(mm) 108±2
NA 0.0854 Type Telecentric
Mount C Best Aperture(f/#) 7.3
MTF30 (lp/mm) 98 Object Resolution(μm) 3.9
Depth of Field(mm) 0.3 Distortion Typical(% max) 0.04
Telecentricity Typical (°max) 0.02 Length (mm) 122.4
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.3
Filter Screw Size M30x0.5
Field of View (mm x mm)
1/2”(6.4x4.8) 4.3x3.2
1/1.8”(7.13x5.37) 4.8x3.6
2/3”(8.45x7.1) 5.9x4.4

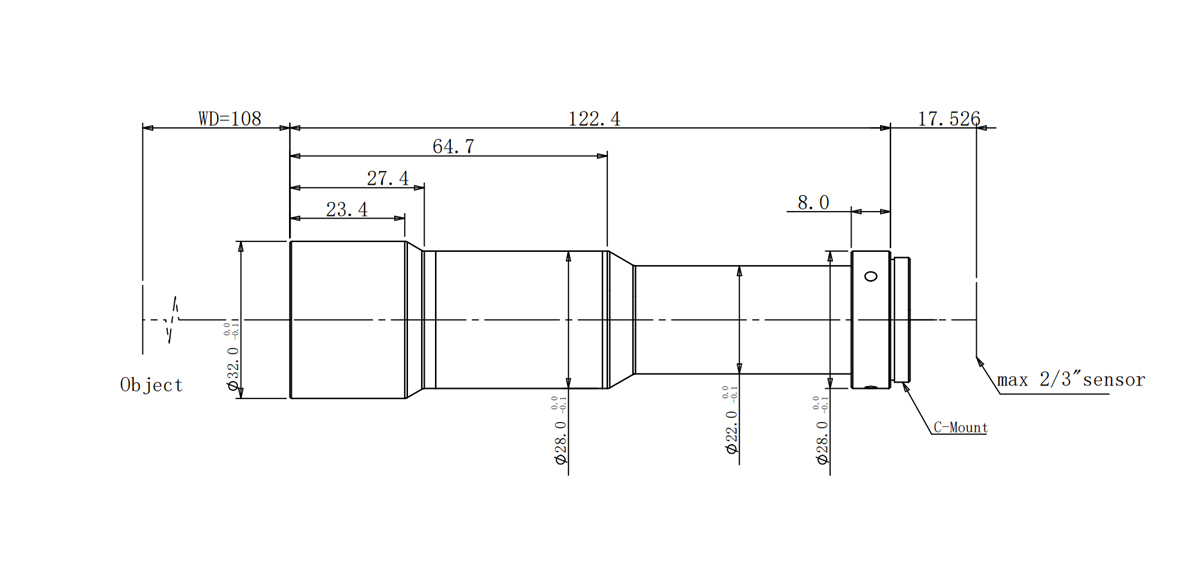

Dimensions

Naming Rule

  • Description

Model NO. WWH15-108ATV3 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1.500 Working Distance(mm) 108±2
NA 0.0854 Type Telecentric
Mount C Best Aperture(f/#) 7.3
MTF30 (lp/mm) 98 Object Resolution(μm) 3.9
Depth of Field(mm) 0.3 Distortion Typical(% max) 0.04
Telecentricity Typical (°max) 0.02 Length (mm) 122.4
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.3
Filter Screw Size M30x0.5
Field of View (mm x mm)
1/2”(6.4x4.8) 4.3x3.2
1/1.8”(7.13x5.37) 4.8x3.6
2/3”(8.45x7.1) 5.9x4.4

Dimensions

Naming Rule
