Model NO. |
DTCA175-15.7-M42-AL |
Image Circle Diameter (Φmm) |
29(1.75") |
Magnification(x) |
1.846 |
Working Distance(mm) |
71 |
NA |
0.0461 |
Type |
Bi-Telecentric |
Mount |
M42 |
Object Field of View(Φmm) |
15.7 |
Best Aperture(f/#) |
20 |
MTF30 (lp/mm) |
>45 |
Object Resolution(μm) |
7.28 |
Depth of Field(mm) |
0.5 |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
400 |
Length (mm) |
311.9 |
Weight(kg) |
1.25 |
Iris Adjustable |
No |
With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
0.5 |
Filter Screw Size |
/ |
Field of View (mm × mm)
|
1.75" IMX342 (22.3X16.7) |
12.1x9 |

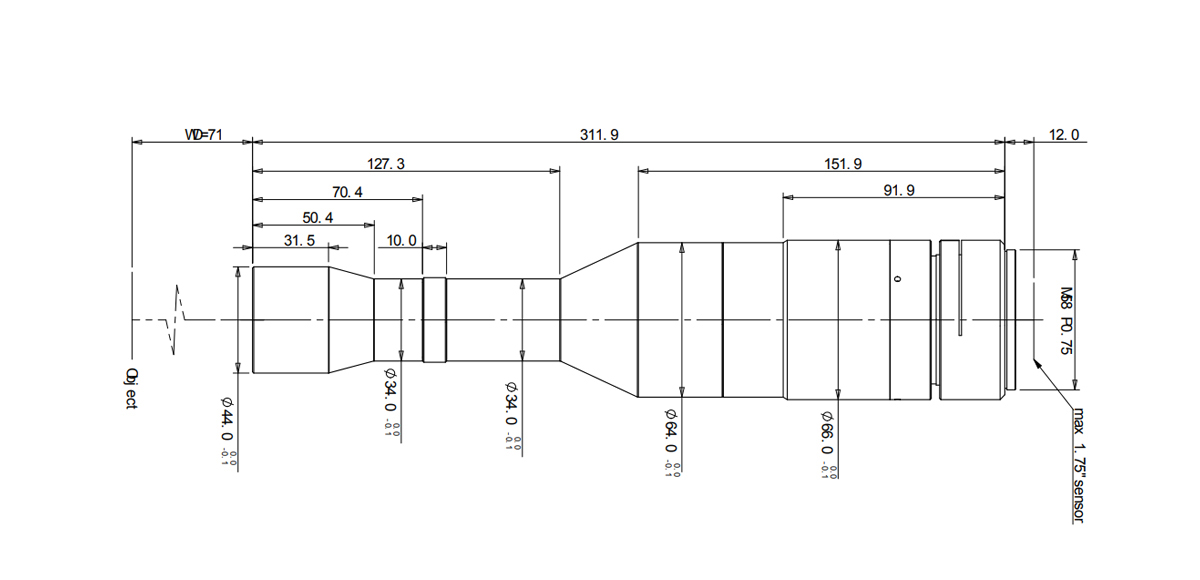

Dimensions
![]()
Naming Rule
![]()
