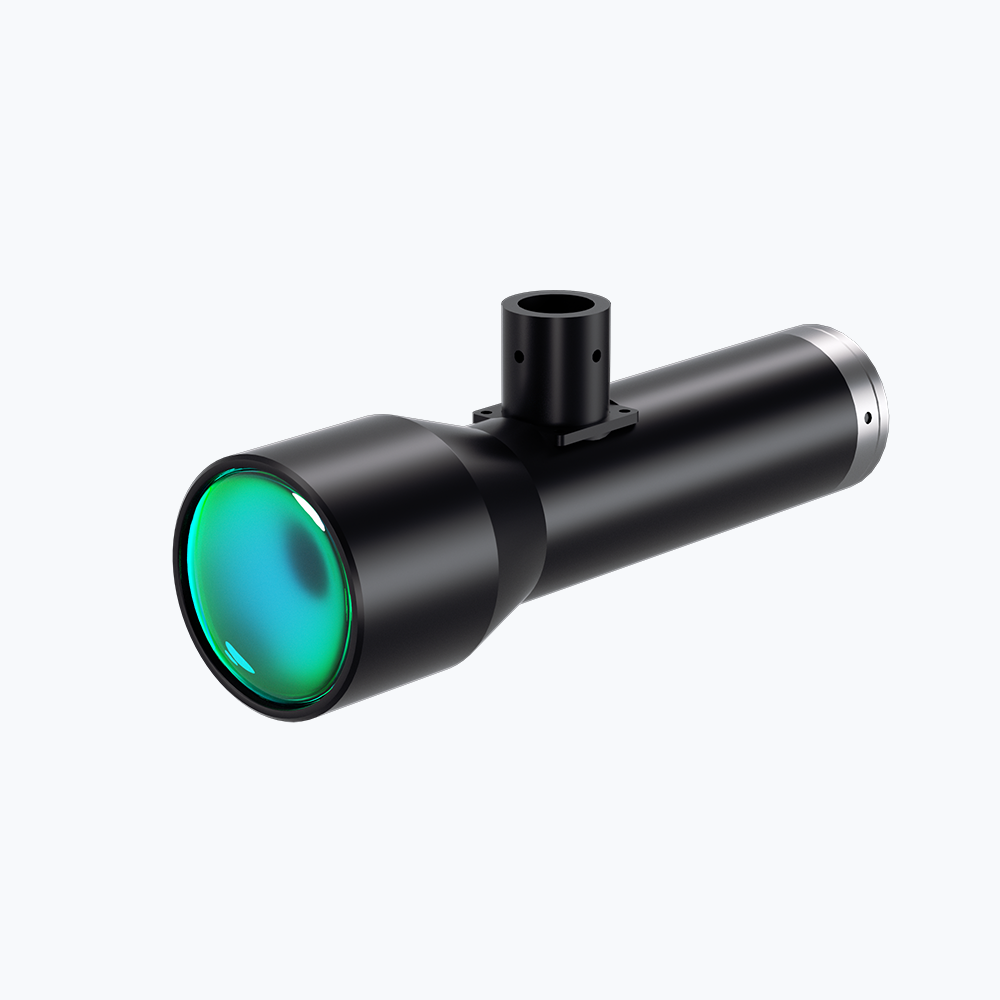

Model NO. |
WWK10-180C-111V3 |
Image Circle Diameter (Φmm) |
18(1.1") |
Magnification(x) |
1.000 |
Working Distance(mm) |
180±2 |
NA |
0.0622 |
Type |
Telecentric |
Mount |
C |
Best Aperture(f/#) |
8 |
MTF30 (lp/mm) |
>107 |
Object Resolution(μm) |
5.4 |
Depth of Field(mm) |
±0.3@F8 |
Distortion Typical(% max) |
<0.01 |
Telecentricity Typical (°max) |
<0.08 |
Length (mm) |
179.1 |
With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
0.25 |
Filter Screw Size |
M44x0.5 |
Field of View (mm x mm) |
1" IMX183 (13.13x8.76) |
13.1x8.8 |
1.1" IMX253 (14.19x10.38) |
4.2x10.4 |

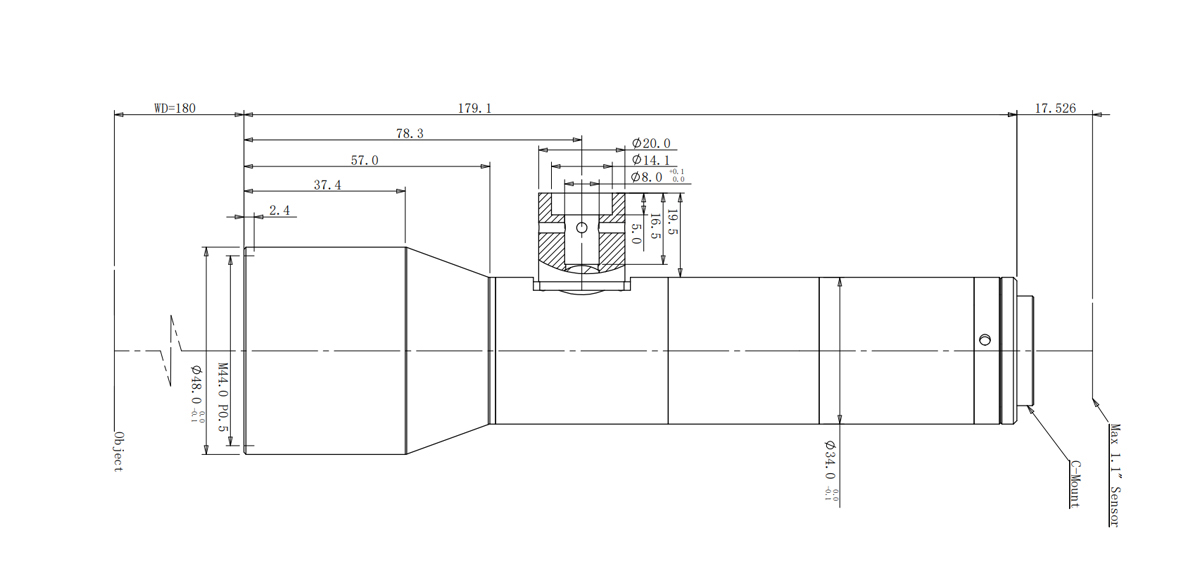

Dimensions
![]()
Naming Rule
![]()
