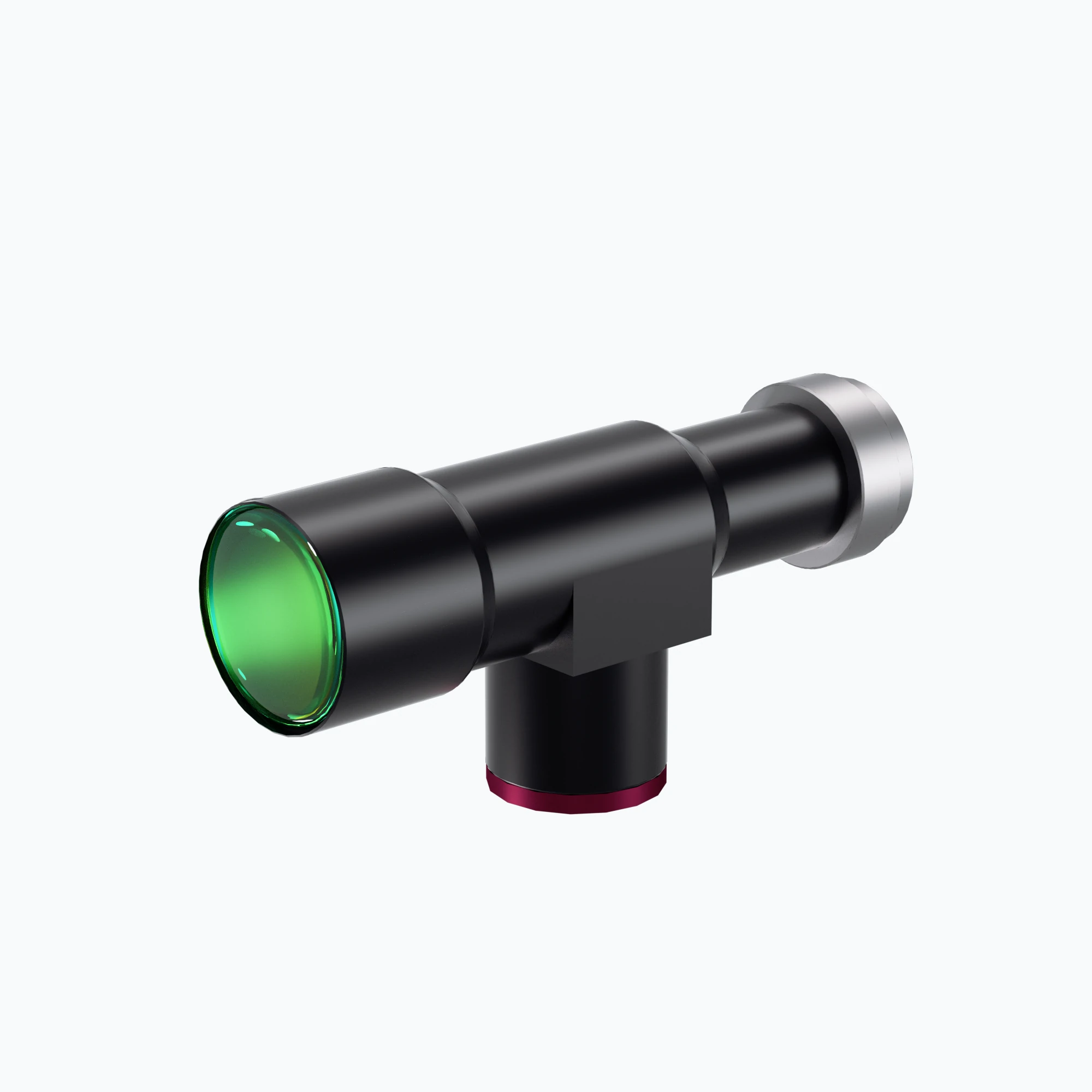

2/3" 1X Telecentric Lenses | WWH10-108CTLV3 COOLENS®

WWH10-108CTLV3

Image Circle:11(2/3")mm, Magnification:1X, WD:108±2mm, NA:0.0712, Mount:C, Type:Telecentric Lenses

$410.00 USD

Quantity

Description

Model NO.		WWH10-108CTLV3		Image Circle Diameter (Φmm)		11(2/3")
Magnification(x)		1.000		Working Distance(mm)		108±2
NA		0.0712		Type		Telecentric
Mount		C		Best Aperture(f/#)		7
MTF30 (lp/mm)		114		Object Resolution(μm)		4.7
Depth of Field(mm)		0.6		Distortion Typical(% max)		0.04
Telecentricity Typical (°max)		0.05		Length (mm)		107.9
With Coaxial Illumination Port		Yes		Measured Depth of Field (mm)		0.3
Filter Screw Size		M30x0.5
Field of View (mm x mm)

1/2”（6.4x4.8）				6.4x4.8
1/1.8”（7.13x5.37）				7.13x5.37
2/3”（8.45x7.1）				8.45x7.1

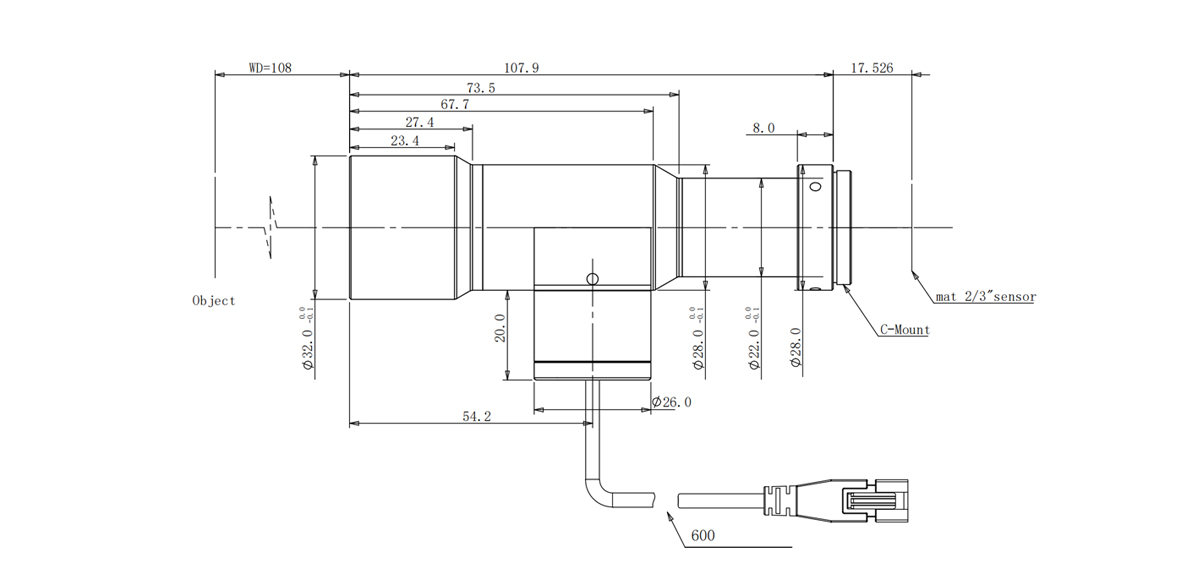

Dimensions

Naming Rule
