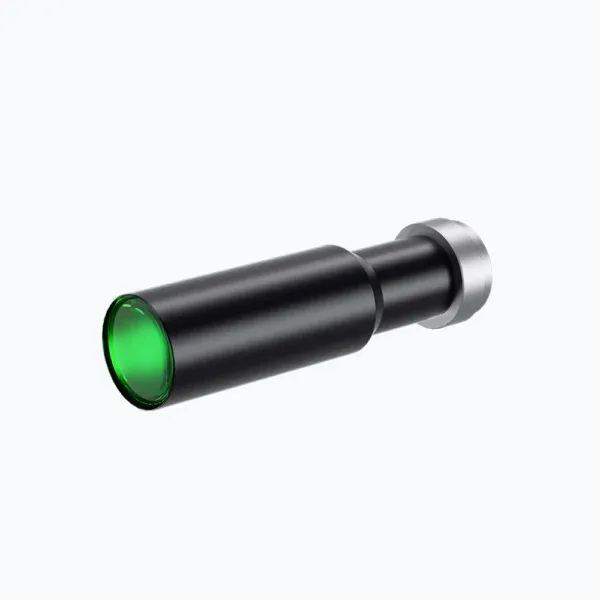

1X 2/3″ Telecentric Lenses | WWH 63 COOLENS®
1X 2/3″ Telecentric Lenses | WWH 63 COOLENS®
WWH10-63ATV3
Model No: WWH10-63ATV3 •NA 0.03-0.13, Telecentric Lenses with Coaxial Illumination Port Optional •Up to 5 MegaPixels, 3.45μm Pixel Size Sensors •Up to 2/3″, WD63, C-Mount Telecentric Lenses •Magnification(x) 1.0
$0.00 USD
$0.00 USD
Quantity
Only 0 left
Sold Out
Add to cart
Share
Tweet
Pin it
LINE
Whatsapp
Tumblr
Description
Click to Download the Specification
Model NO.
WWH10-63ATV3
Magnification(x)
1.0
Working Distance(mm)
63±1
Max Sensor Size(φmm)
11.0(2/3")
Aperture(F/#)
8
Telecentricity Typical(max)(deg)
0.1
Distortion Typical(max)(%)
0.07
NA
0.0625
Resolution(μm)
5.4
Depth of Field
0.6
Mount
C
Length (mm)
101.3
Coaxial Illumination Port Option
No
Iris Adjustable
No
Field of View (mm x mm)
1/2”（6.4x4.8）
6.4x4.8
1/1.8”（7.13x5.37）
7.13x5.37
2/3”（8.45x7.1）
8.45x7.1

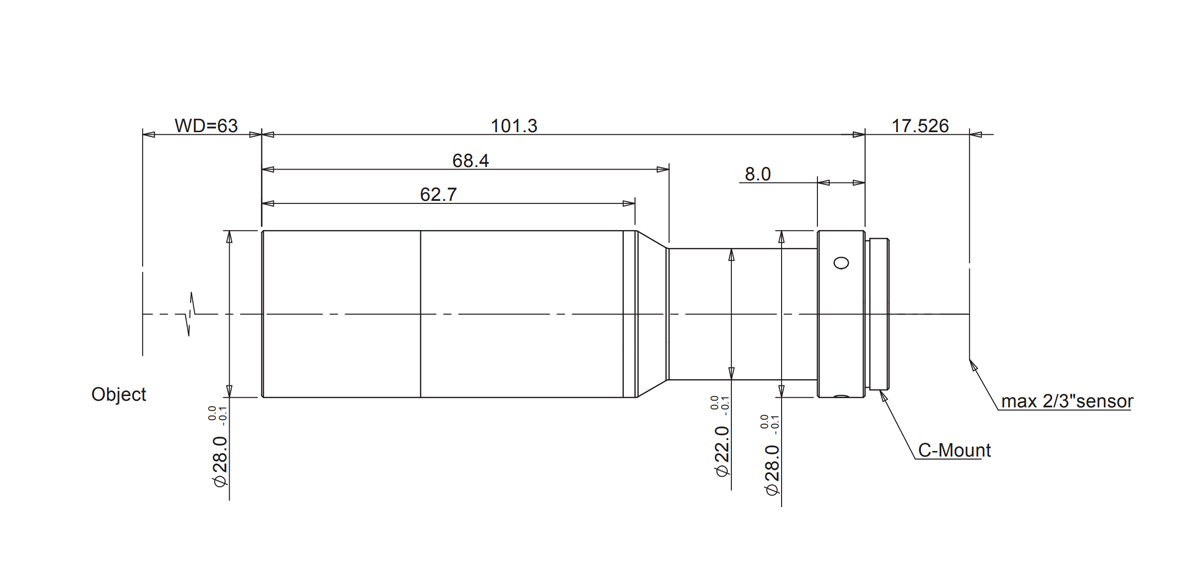

Dimensions
