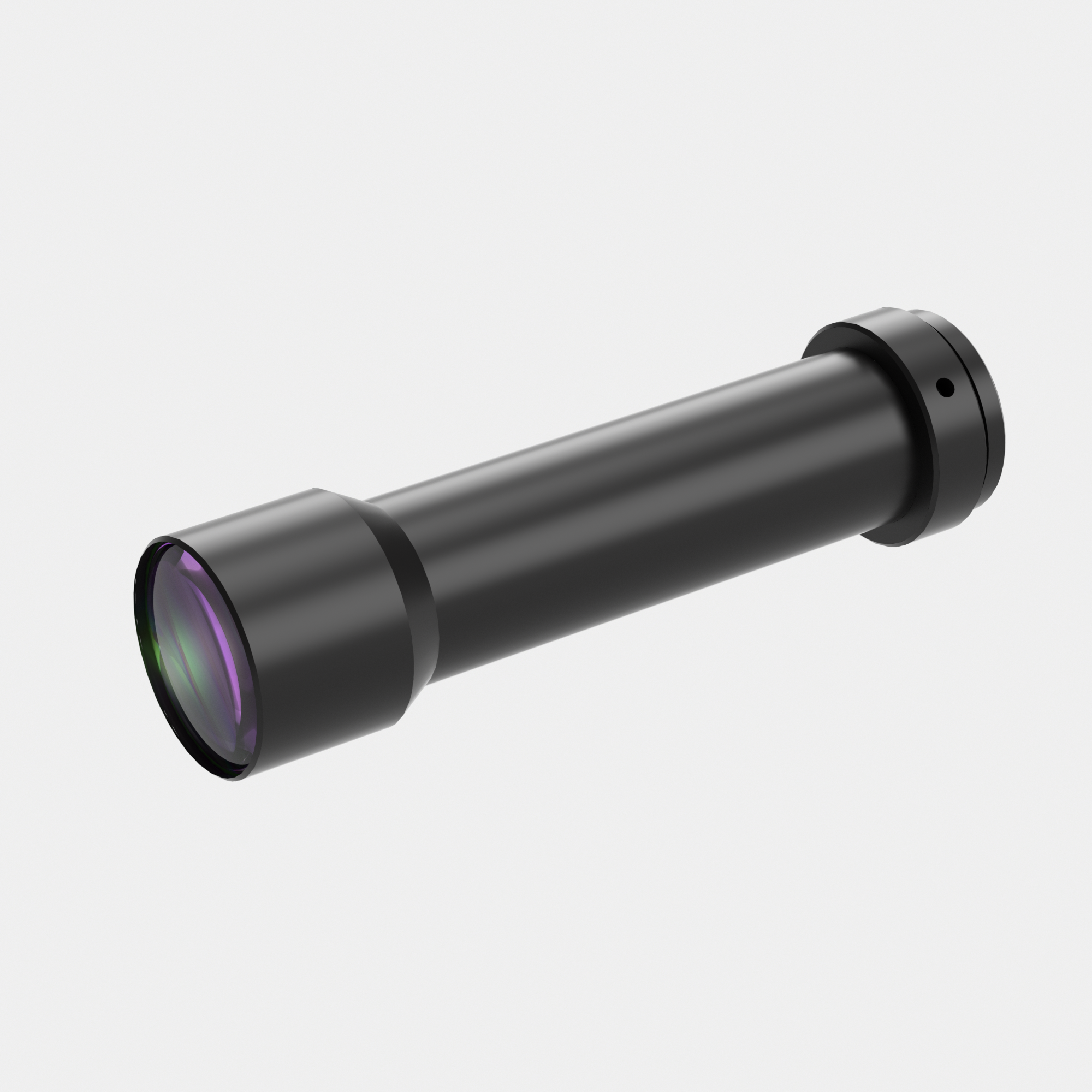

Model NO. | WH011-580A | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.11 | Working Distance(mm) | 580 | ||||
NA | 0.0046 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 12 | ||||
MTF30 (lp/mm) | 78 | Object Resolution(μm) | 73.3 | ||||
Depth of Field(mm) | 79.3 | Distortion Typical(% max) | 0.1 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 100 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 20 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2"(6.4×4.8) | 58.2x43.6 | ||||||
1/1.8"(7.13×5.37) | 64.8x48.8 | ||||||
2/3"(8.8×6.6) | 80.0x60.0 |
