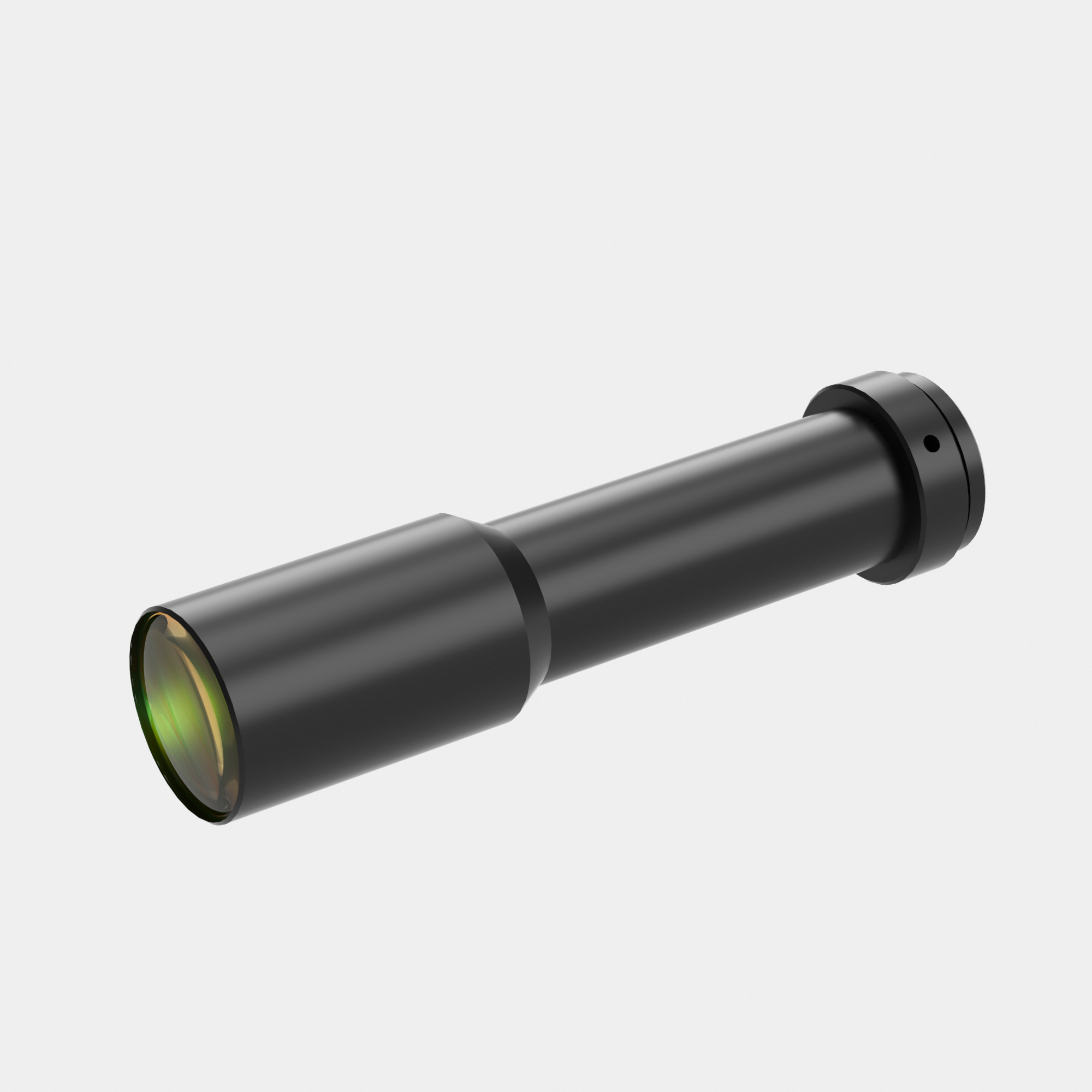

Model NO. | WH011-660A | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.11 | Working Distance(mm) | 660 | ||||
NA | 0.0049 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 11.2 | ||||
MTF30 (lp/mm) | 67 | Object Resolution(μm) | 68.6 | ||||
Depth of Field(mm) | 74 | Distortion Typical(% max) | 0.18 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 111.7 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 25 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2"(6.4×4.8) | 58.2×43.6 | ||||||
1/1.8"(7.13×5.37) | 64.8×48.8 | ||||||
2/3"(8.8×6.6) | 88.0×66.0 |

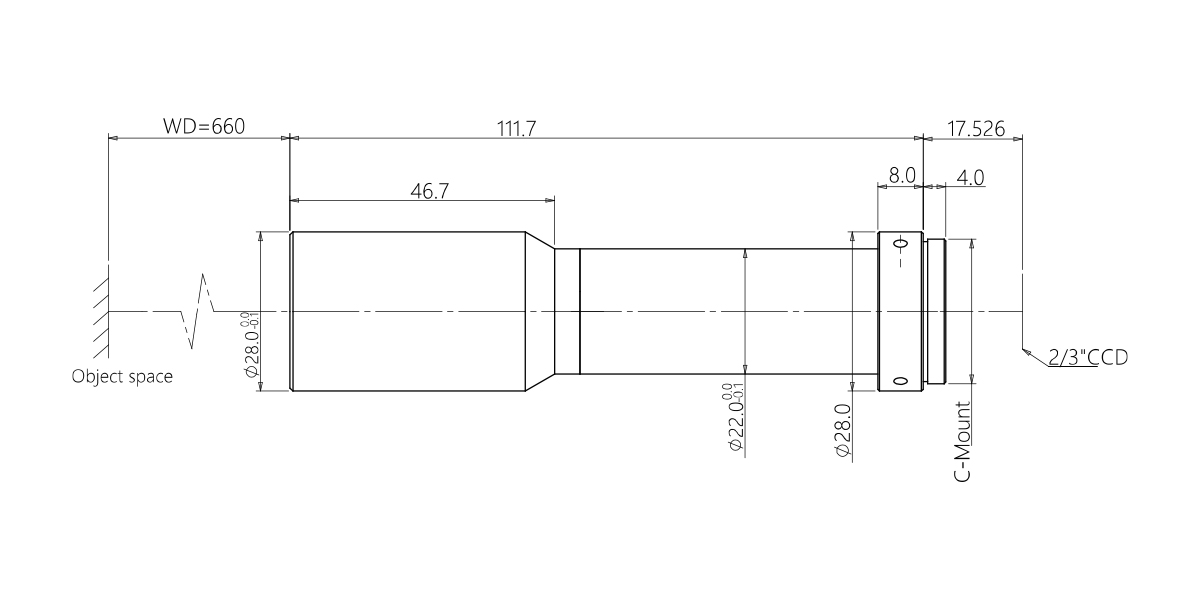

Dimensions
Naming Rule
