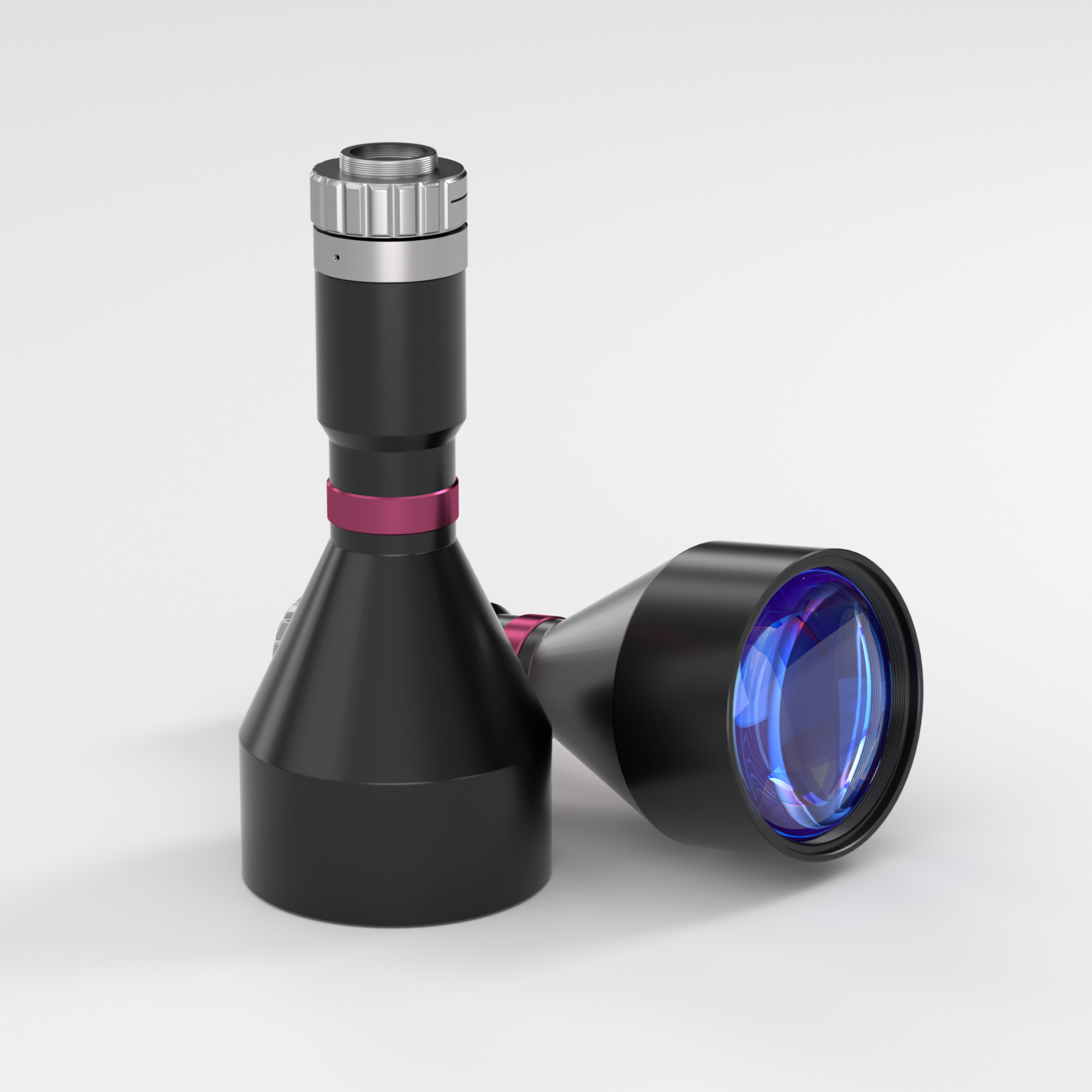

1/2" 0.12X Telecentric Lenses | WWK012-330-120-AL COOLENS®

Name: 1/2" 0.12X Telecentric Lenses | WWK012-330-120-AL COOLENS®
Brand: COOLENS
SKU: WWK012-330-120-AL
Price: 1157 USD
Availability: InStock
Rating: 0 (0 reviews)

WWK012-330-120-AL

Image Circle:8(1/2")mm, Magnification:0.12X, WD:330±2mm, NA:0.00858, Mount:C, Type:Telecentric Lenses

$1,157.00 USD

Quantity

Description

Model NO.	WWK012-330-120-AL	Image Circle Diameter (Φmm)	8(1/2")
Magnification(x)	0.12	Working Distance(mm)	330±2
NA	0.0086	Type	Telecentric
Mount	C	Best Aperture(f/#)	7
MTF30 (lp/mm)	>135	Object Resolution(μm)	39.1
Depth of Field(mm)	±19.4@F7	Distortion Typical(% max)	<0.05
Telecentricity Typical (°max)	<0.1	Length (mm)	192.6
With Coaxial Illumination Port	No	Measured Depth of Field (mm)	8
Filter Screw Size	M80x0.75
Field of View (mm x mm)

1/2.5" 9P001/31 (5.7x4.28)		47.5x35.7
1/2" 9J003 (6.44x4.62)		53.7x38.5

1/2" 0.12X Telecentric Lenses | WWK012-330-120-AL COOLENS®

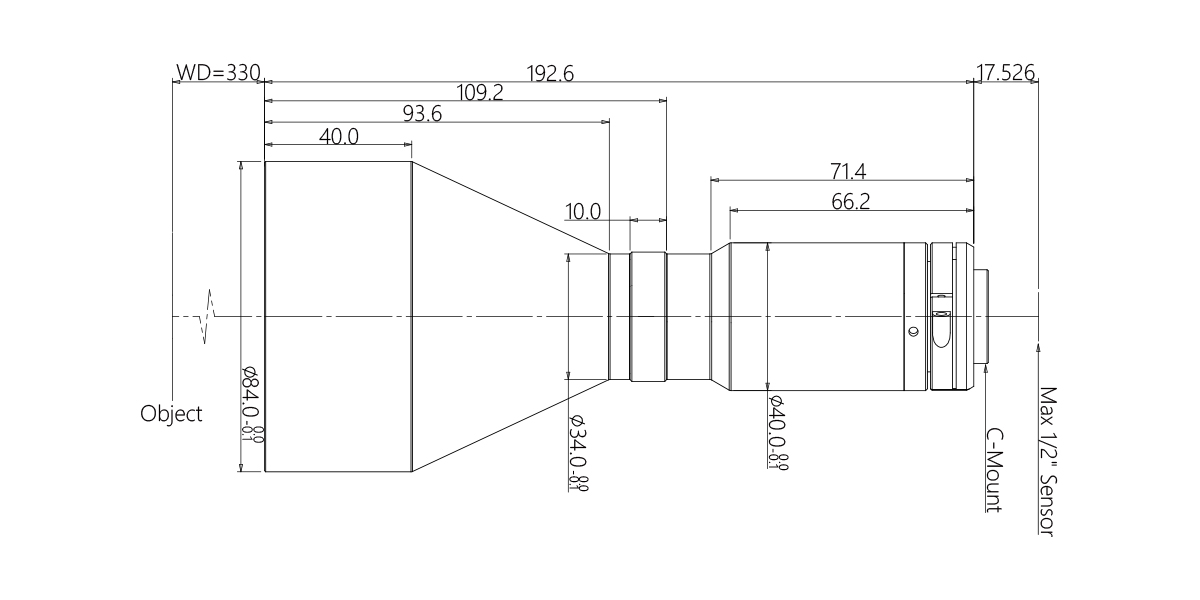

Dimensions

Naming Rule
