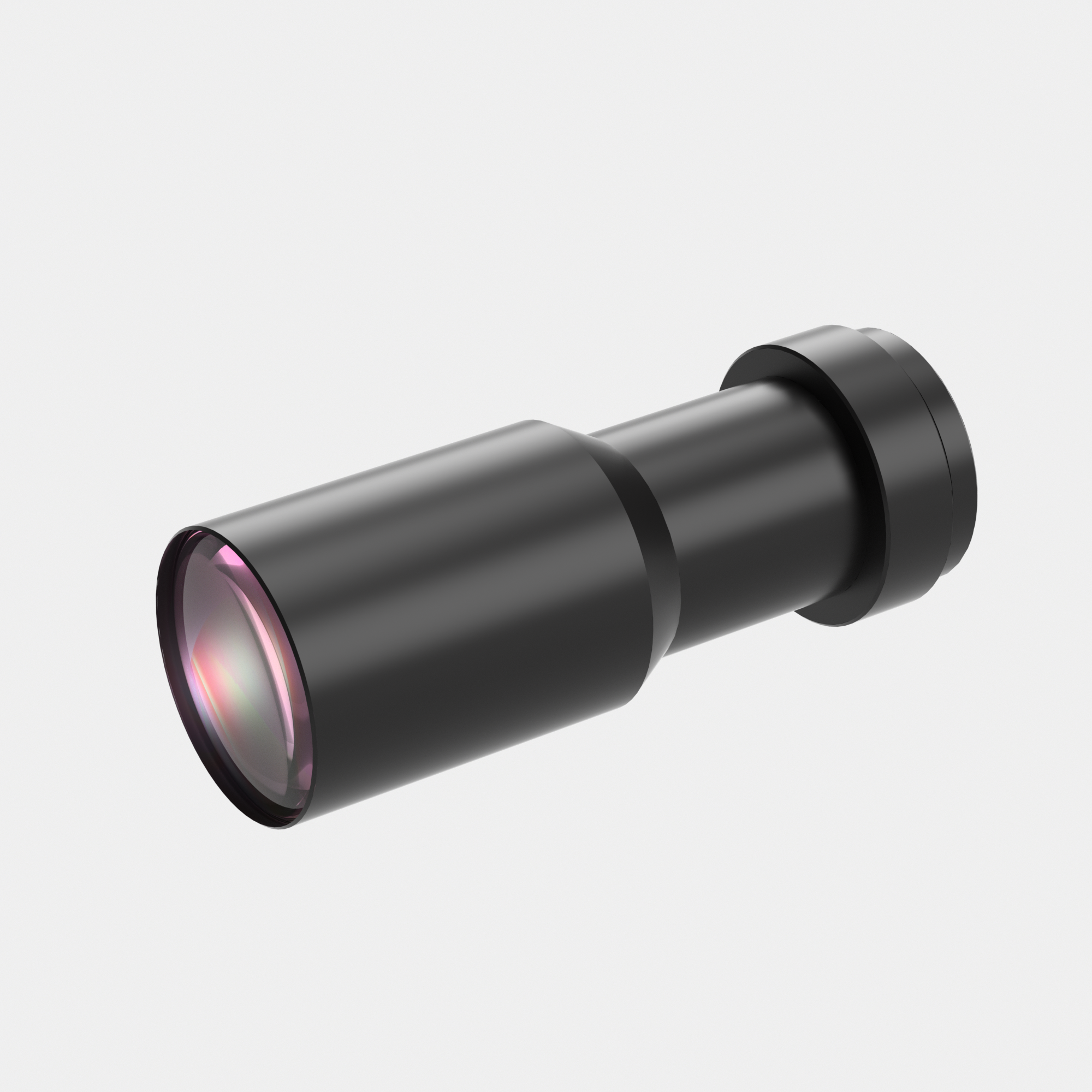

2/3" 0.14X Industrial Lenses | WH014-250A-230 COOLENS®

$386.00 USD
Shipping calculated at checkout.
Quantity
2/3" 0.14X  Industrial Lenses | WH014-250A-230 COOLENS®-OKLAB

Description

Model NO. WH014-250A-230 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 0.14 Working Distance(mm) 250
NA 0.0064 Type Fixed Magnification
Mount C Best Aperture(f/#) 11
MTF30 (lp/mm) 70 Object Resolution(μm) 52.6
Depth of Field(mm) 44.9 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) Non-telecentric Length (mm) 70.2
With Coaxial Illumination Port No Measured Depth of Field (mm) 14
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2"(6.4x4.8) 45.7x34.3
1/1.8"(7.13x5.37) 50.9x38.4
2/3"(8.8x6.6) 62.9x47.1

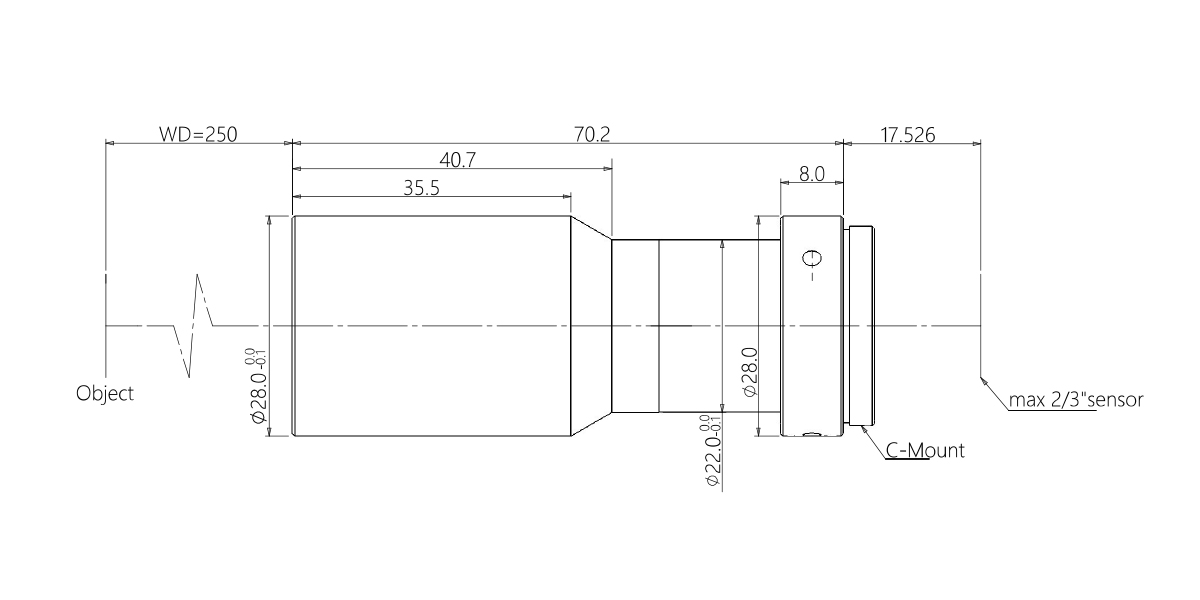

Dimensions

Naming Rule



  • Description

Model NO. WH014-250A-230 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 0.14 Working Distance(mm) 250
NA 0.0064 Type Fixed Magnification
Mount C Best Aperture(f/#) 11
MTF30 (lp/mm) 70 Object Resolution(μm) 52.6
Depth of Field(mm) 44.9 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) Non-telecentric Length (mm) 70.2
With Coaxial Illumination Port No Measured Depth of Field (mm) 14
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2"(6.4x4.8) 45.7x34.3
1/1.8"(7.13x5.37) 50.9x38.4
2/3"(8.8x6.6) 62.9x47.1

Dimensions

Naming Rule
