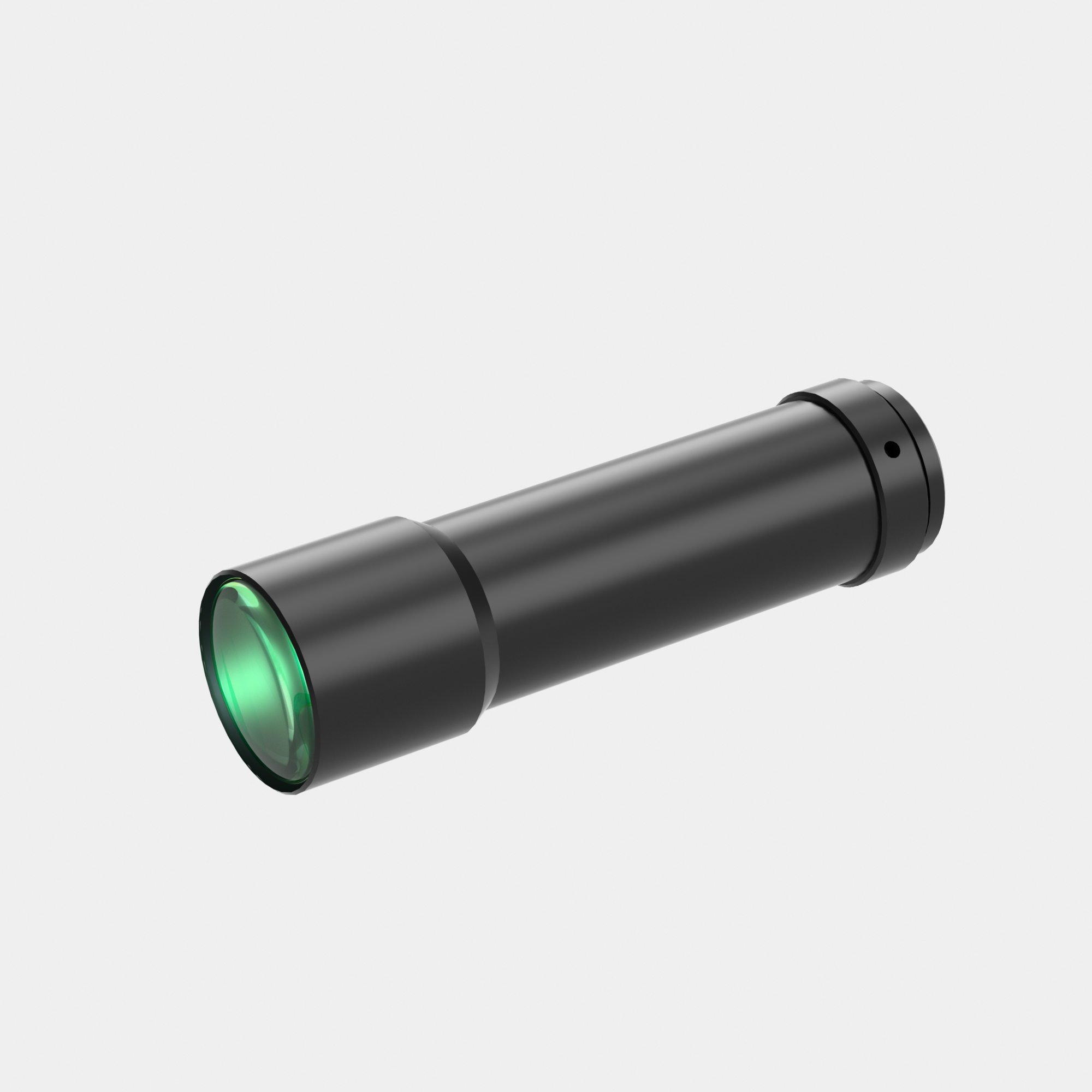

| Model NO. |
WH014-600A |
Image Circle Diameter (Φmm) |
11(2/3") |
| Magnification(x) |
0.14 |
Working Distance(mm) |
600 |
| NA |
0.0041 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
17 |
| MTF30 (lp/mm) |
55 |
Object Resolution(μm) |
81.4 |
| Depth of Field(mm) |
69.4 |
Distortion Typical(% max) |
0.25 |
| Telecentricity Typical (°max) |
Non-telecentric |
Length (mm) |
98 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
30 |
| Filter Screw Size |
M25x0.5 |
| Field of View (mm x mm) |
|
| 1/2"(6.4x4.8) |
45.7x34.3 |
| 1/1.8"(7.13x5.37) |
50.9x38.4 |
| 2/3"(8.8x6.6) |
62.9x47.1 |

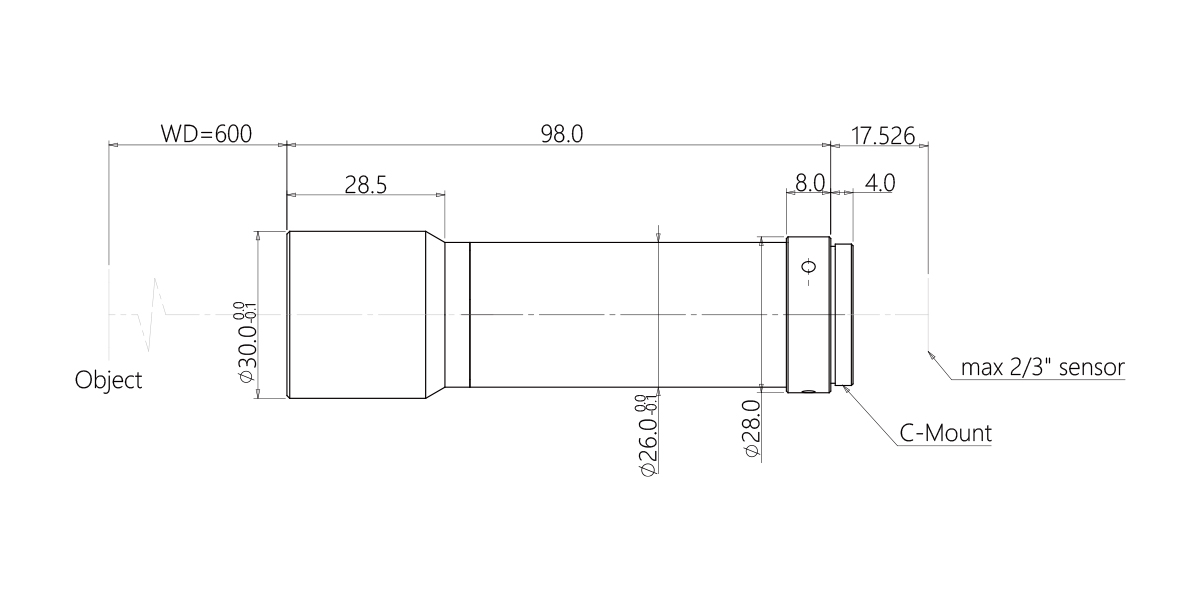

Dimensions
Naming Rule
