Model NO. | WH024-490A | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.24 | Working Distance(mm) | 490 | ||||
NA | 0.012 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 10 | ||||
MTF30 (lp/mm) | 90 | Object Resolution(μm) | 28 | ||||
Depth of Field(mm) | 13.9 | Distortion Typical(% max) | 0.1 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 142.6 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 6.5 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2"(6.4x4.8) | 26.7x20.0 | ||||||
1/1.8"(7.13x5.37) | 29.7x22.4 | ||||||
2/3"(8.8x6.6) | 36.7x27.5 |

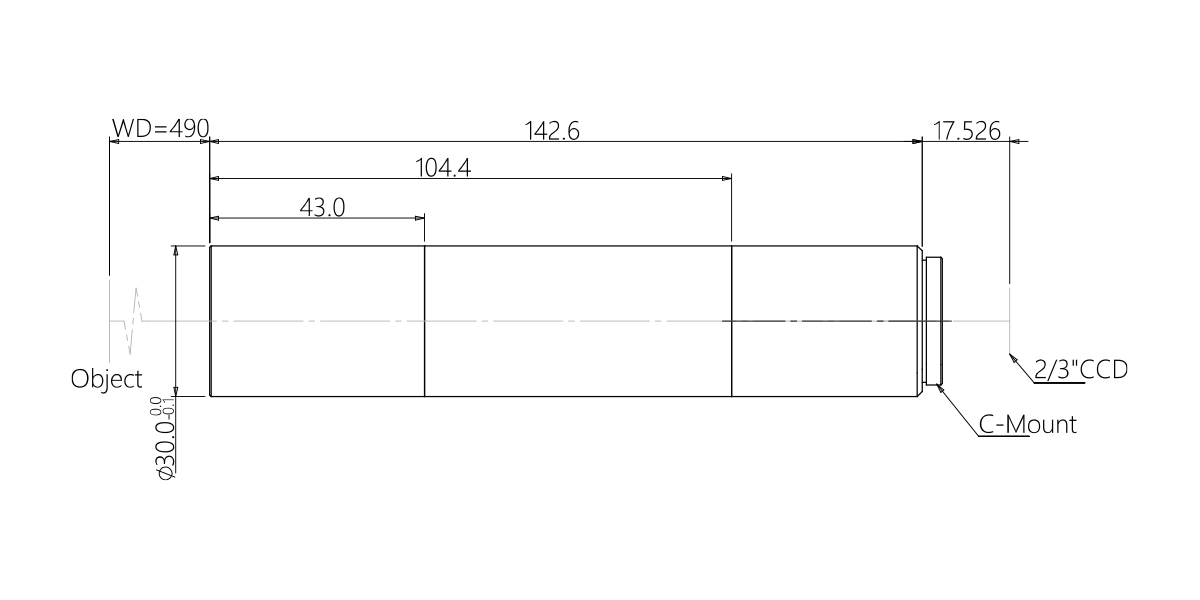

Dimensions
Naming Rule
