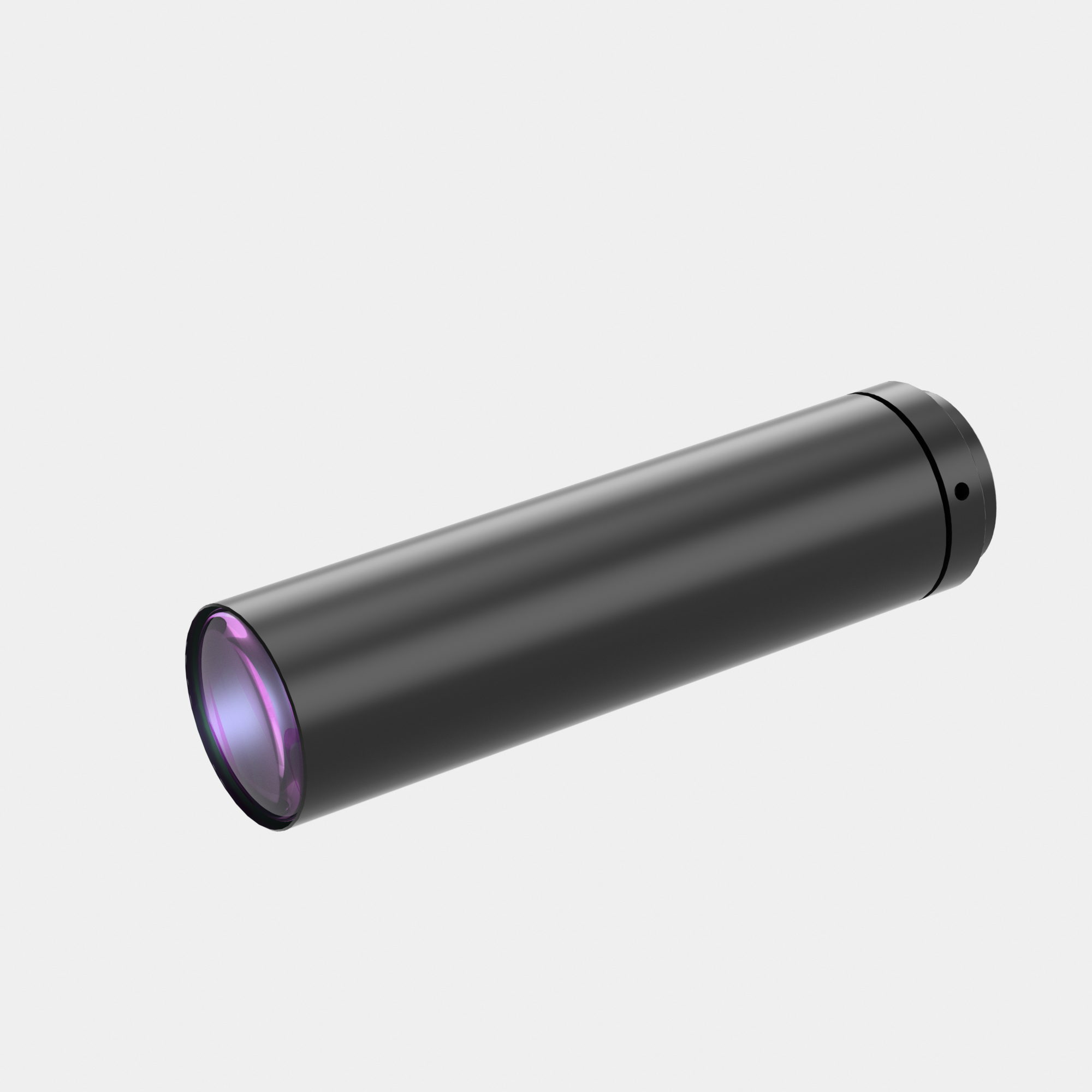

Model NO. | WH03-300A | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.3 | Working Distance(mm) | 300 | ||||
NA | 0.0134 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 11.3 | ||||
MTF30 (lp/mm) | 50 | Object Resolution(μm) | 25.1 | ||||
Depth of Field(mm) | 10 | Distortion Typical(% max) | 0.15 | ||||

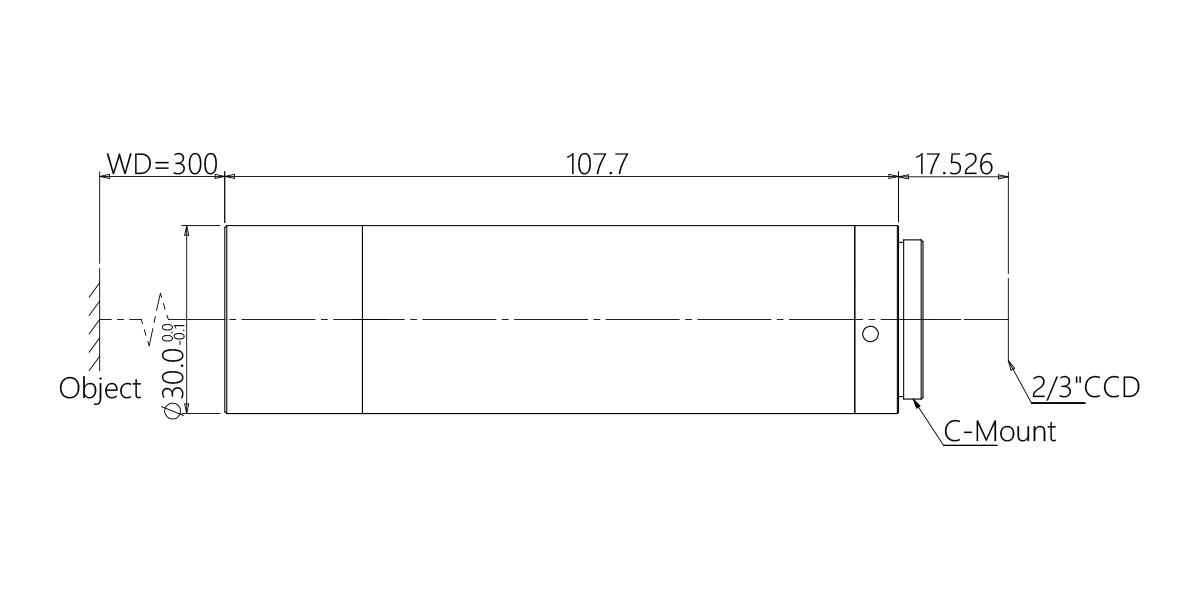

Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 107.7 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 6 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) |
|||||||
1/2"(6.4x4.8) | 21.3x16.0 | ||||||
1/1.8"(7.13x5.37) | 23.8x17.9 | ||||||
2/3"(8.8x6.6) | 29.3x22.0 |
