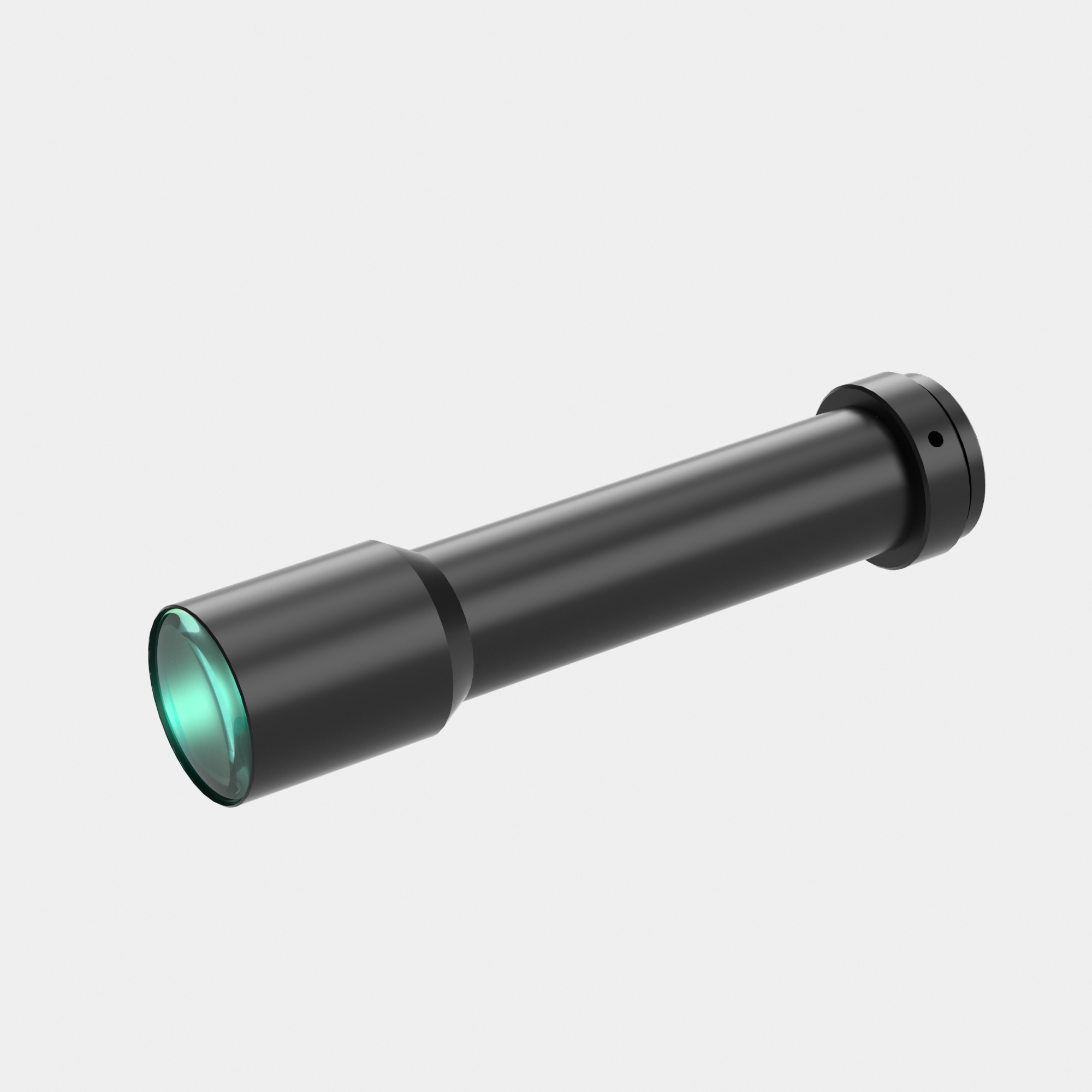

2/3" 0.4X Industrial Lenses | WH04-240AIR-230 COOLENS®

$386.00 USD
Shipping calculated at checkout.
Quantity
2/3" 0.4X  Industrial Lenses | WH04-240AIR-230 COOLENS®-OKLAB

Description

Model NO. WH04-240AIR-230 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 0.4 Working Distance(mm) 240
NA 0.0166 Type Fixed Magnification
Mount C Best Aperture(f/#) 12.1
MTF30 (lp/mm) 45 Object Resolution(μm) 30.9
Depth of Field(mm) 6.1 Distortion Typical(% max) 0.15
Telecentricity Typical (°max) Non-telecentric Length (mm) 119.2
With Coaxial Illumination Port No Measured Depth of Field (mm) 3
Filter Screw Size M25x0.5

Field of View (mm x mm)

1/2"(6.4x4.8) 16.0x12.0
1/1.8"(7.13x5.37) 17.8x13.4
2/3"(8.8x6.6) 22.0x16.5

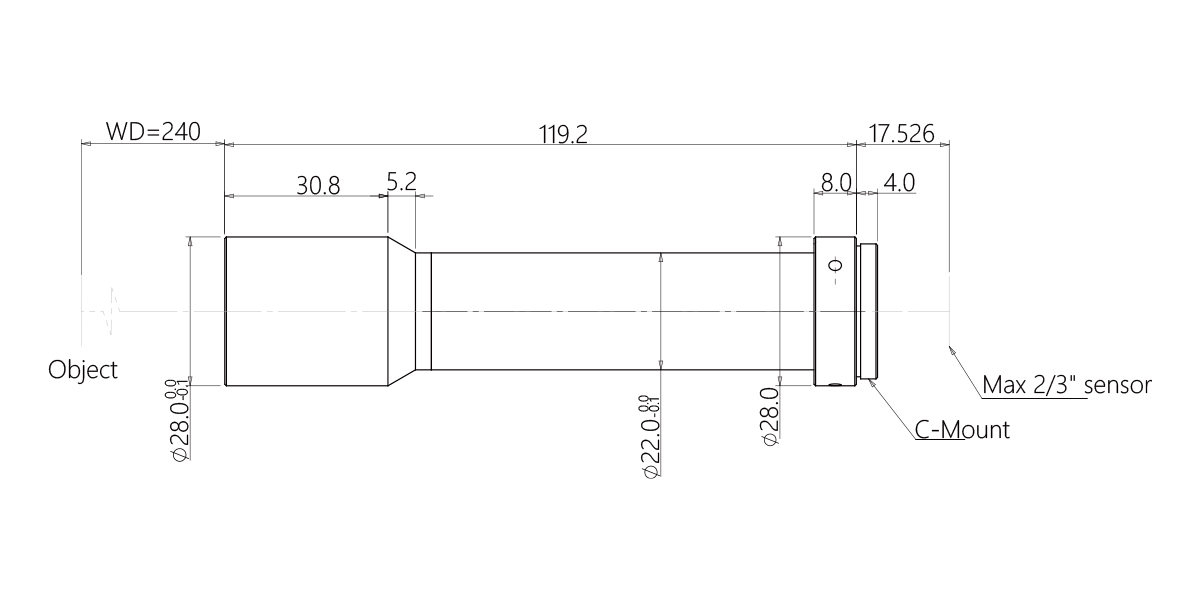

Dimensions

Naming Rule



  • Description

Model NO. WH04-240AIR-230 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 0.4 Working Distance(mm) 240
NA 0.0166 Type Fixed Magnification
Mount C Best Aperture(f/#) 12.1
MTF30 (lp/mm) 45 Object Resolution(μm) 30.9
Depth of Field(mm) 6.1 Distortion Typical(% max) 0.15
Telecentricity Typical (°max) Non-telecentric Length (mm) 119.2
With Coaxial Illumination Port No Measured Depth of Field (mm) 3
Filter Screw Size M25x0.5

Field of View (mm x mm)

1/2"(6.4x4.8) 16.0x12.0
1/1.8"(7.13x5.37) 17.8x13.4
2/3"(8.8x6.6) 22.0x16.5

Dimensions

Naming Rule
