Model NO. |
WWH05-110AT-G |
Image Circle Diameter (Φmm) |
11(2/3") |
Magnification(x) |
0.5 |
Working Distance(mm) |
110 |
NA |
0.0260 |
Type |
Telecentric |
Mount |
C |
Best Aperture(f/#) |
9.6-Close |
MTF30 (lp/mm) |
80 |
Object Resolution(μm) |
12.904 |
Depth of Field(mm) |
Adjustable |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
135.2 |
With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
Adjustable |
Filter Screw Size |
M32x0.5 |
Field of View (mm x mm) |
1/2" (6.4x4.8) |
12.8x9.6 |
1/1.8”(7.13x5.37) |
14.3x10.7 |
1/3" (4.8x3.6) |
17.6x13.2 |

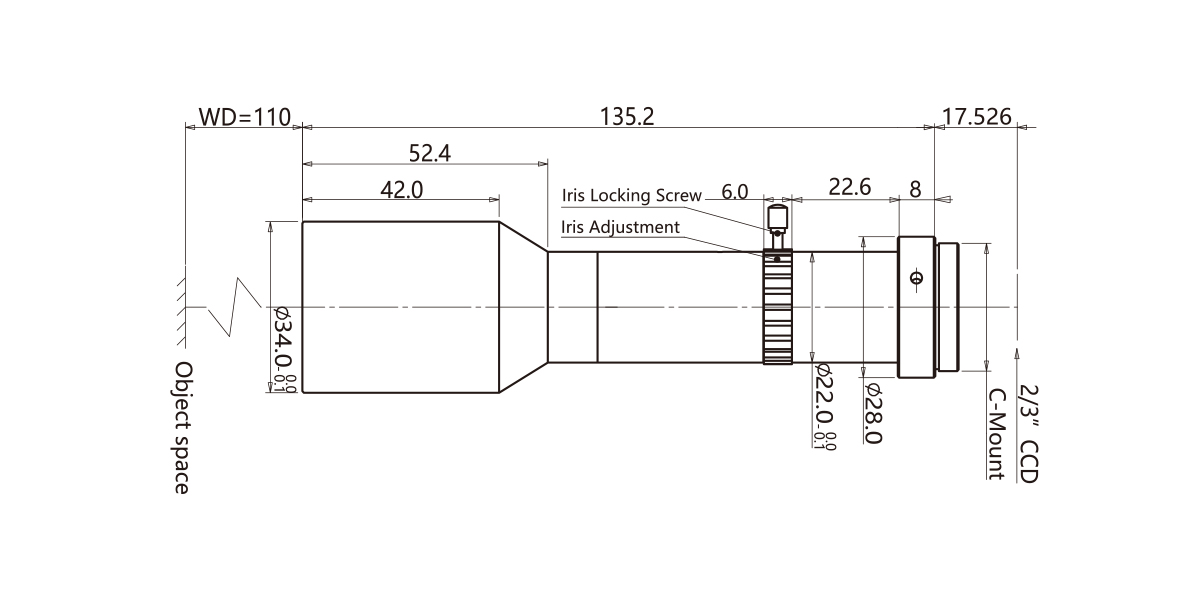

Dimensions
![]()
Naming Rule
![]()
