Model NO. |
WWH075-63ATV3 |
Image Circle Diameter (Φmm) |
11(2/3") |
Magnification(x) |
0.750 |
Working Distance(mm) |
63±1 |
NA |
0.0625 |
Type |
Telecentric |
Mount |
C |
Best Aperture(f/#) |
6 |
MTF30 (lp/mm) |
132 |
Object Resolution(μm) |
5.4 |
Depth of Field(mm) |
0.9 |
Distortion Typical(% max) |
0.05 |
Telecentricity Typical (°max) |
0.22 |
Length (mm) |
96.2 |
With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
0.4 |
Filter Screw Size |
M25x0.5 |
Field of View (mm x mm) |
1/2”(6.4x4.8) |
8.5x6.4 |
1/1.8”(7.13x5.37) |
9.5x7.2 |
2/3" (8.8x6.6) |
11.3x9.5 |

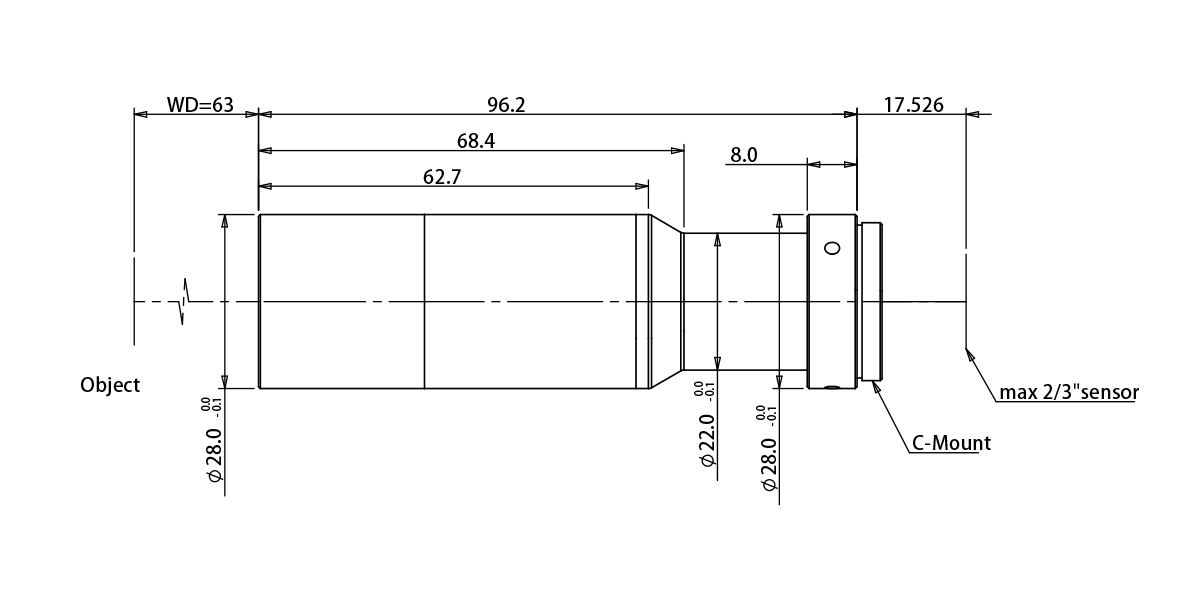

Dimensions
![]()
Naming Rule
![]()
