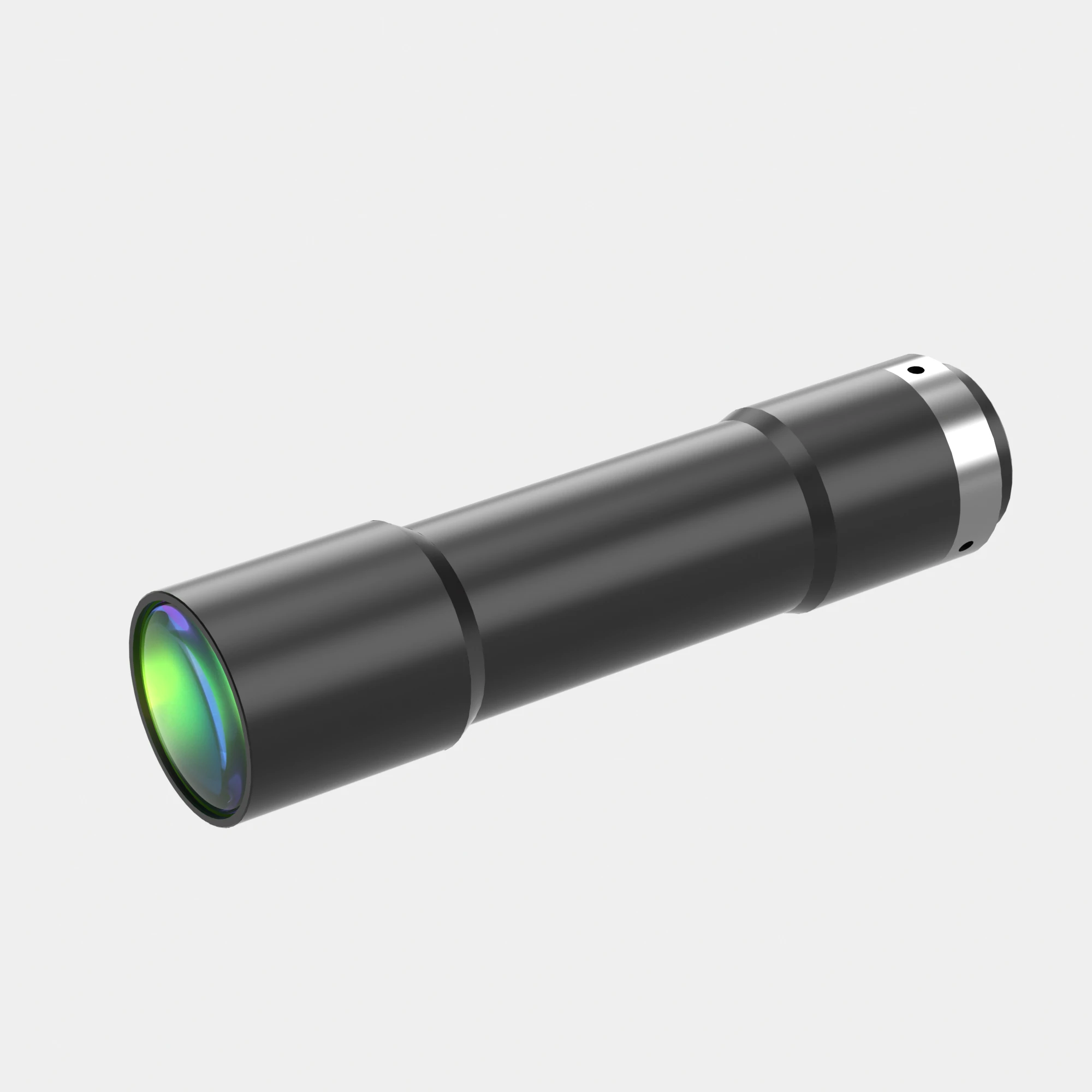

2/3" 0.8X Telecentric Lenses | WWH08-110ATV2 COOLENS®

WWH08-110ATV2
Image Circle:11(2/3")mm, Magnification:0.8X, FoV:/mm, WD:110±2mm, NA:0.05028, Mount:C, Type:Telecentric Lenses
$488.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$488.00 USD each
Description

Model NO. WWH08-110ATV2 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 0.800 Working Distance(mm) 110±2
NA 0.0503 Type Telecentric
Mount C Best Aperture(f/#) 7.9
MTF30 (lp/mm) 105 Object Resolution(μm) 6.7
Depth of Field(mm) 1 Distortion Typical(% max) <0.05
Telecentricity Typical (°max) <0.03 Length (mm) 122.7
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.4
Filter Screw Size M30.0x0.5
Field of View (mm x mm)
1/2”（6.4x4.8） 8.0x6.0
1/1.8”（7.13x5.37） 8.9x6.7
2/3" (8.8x6.6) 11.0x8.3

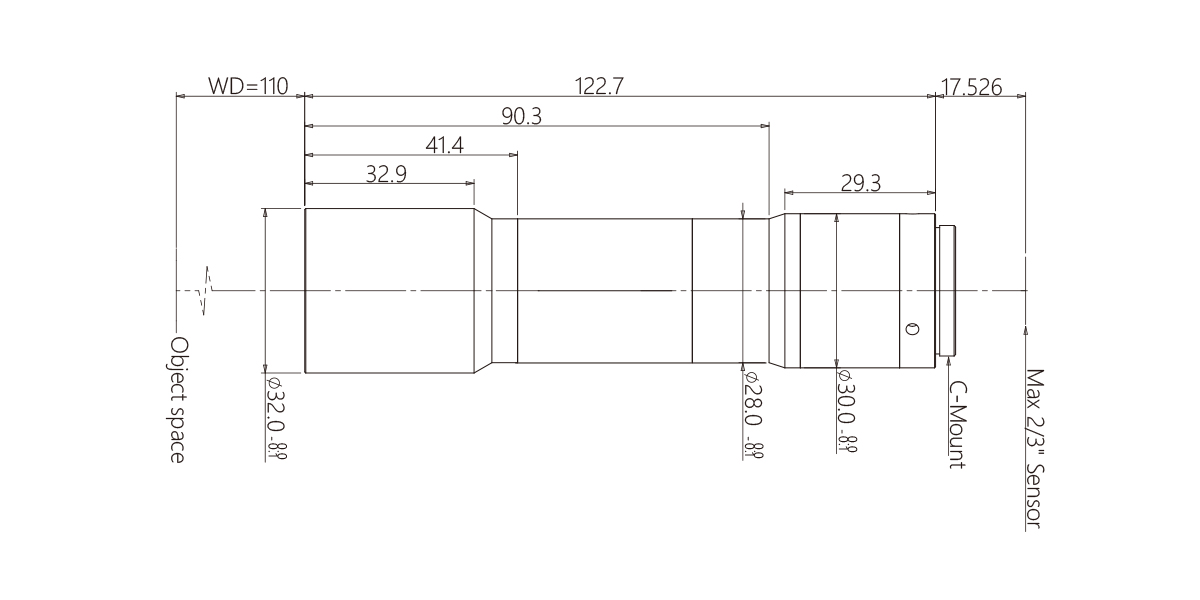

Dimensions

Naming Rule
