Model NO. | WWH08-110CTV2 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.800 | Working Distance(mm) | 110±2 | ||||
NA | 0.0503 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 7.9 | ||||
MTF30 (lp/mm) | 105 | Object Resolution(μm) | 6.7 | ||||
Depth of Field(mm) | 1 | Distortion Typical(% max) | <0.05 | ||||
Telecentricity Typical (°max) | <0.03 | Length (mm) | 122.7 | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.4 | ||||
Filter Screw Size | M30.0x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2”(6.4x4.8) | 8.0x6.0 | ||||||
1/1.8”(7.13x5.37) | 8.9x6.7 | ||||||
2/3" (8.8x6.6) | 11.0x8.3 |

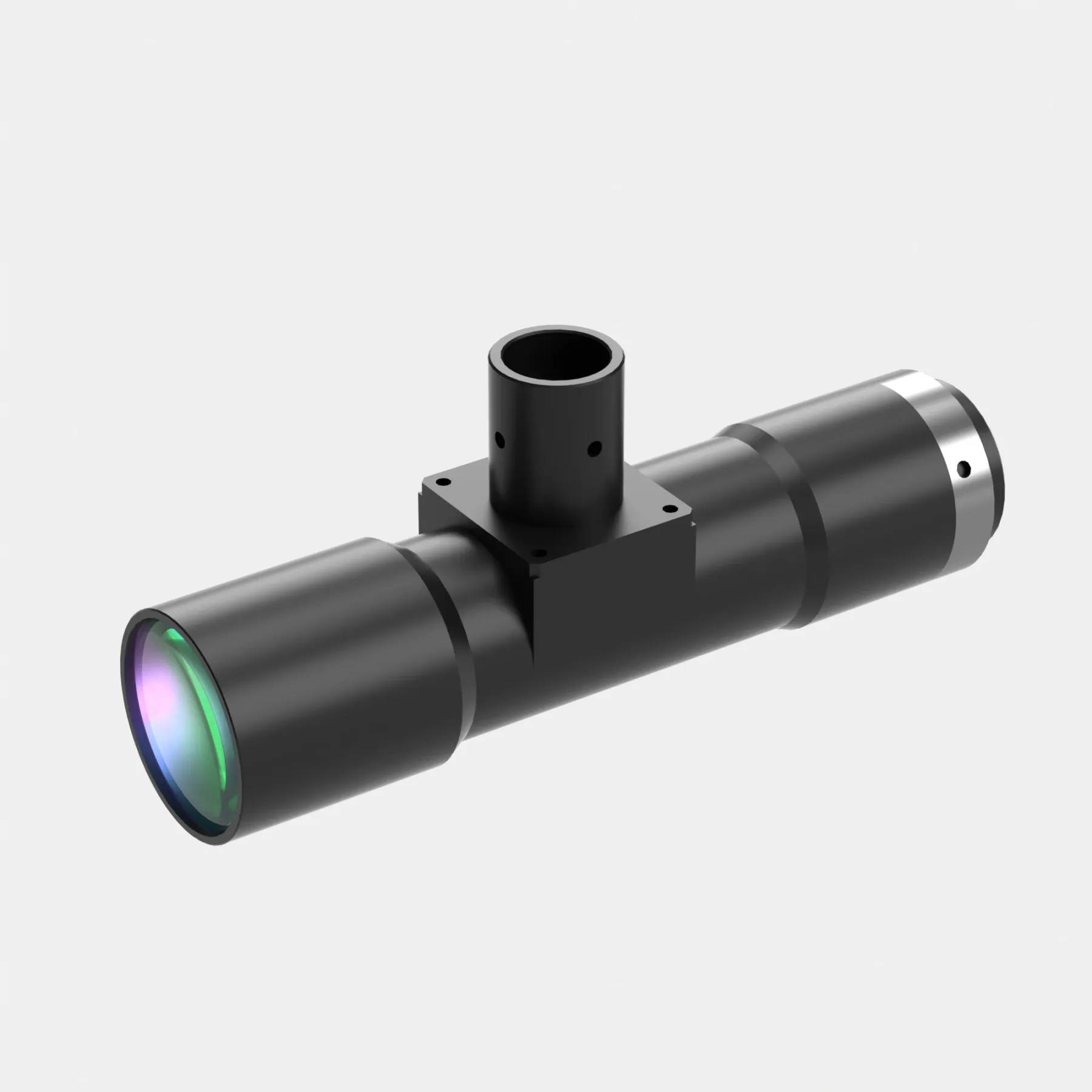

2/3" 0.8X Telecentric Lenses | WWH08-110CTV2 COOLENS®
$605.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | WWH08-110CTV2 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.800 | Working Distance(mm) | 110±2 | ||||
NA | 0.0503 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 7.9 | ||||
MTF30 (lp/mm) | 105 | Object Resolution(μm) | 6.7 | ||||
Depth of Field(mm) | 1 | Distortion Typical(% max) | <0.05 | ||||
Telecentricity Typical (°max) | <0.03 | Length (mm) | 122.7 | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.4 | ||||
Filter Screw Size | M30.0x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2”(6.4x4.8) | 8.0x6.0 | ||||||
1/1.8”(7.13x5.37) | 8.9x6.7 | ||||||
2/3" (8.8x6.6) | 11.0x8.3 |
