| Model NO. |
WWH08-130AT |
Image Circle Diameter (Φmm) |
11(2/3") |
| Magnification(x) |
0.8 |
Working Distance(mm) |
130 |
| NA |
0.0316 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
12.6 |
| MTF30 (lp/mm) |
65 |
Object Resolution(μm) |
10.617 |
| Depth of Field(mm) |
1.575 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
117.1 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
1.4 |
| Filter Screw Size |
M25x0.5 |
| Field of View (mm x mm) |
|
| 1/2" (6.4x4.8) |
8.0x6.0 |
| 1/1.8" (7.13x5.37) |
8.9x6.7 |
| 2/3" (8.8x6.6) |
11.0x8.3 |

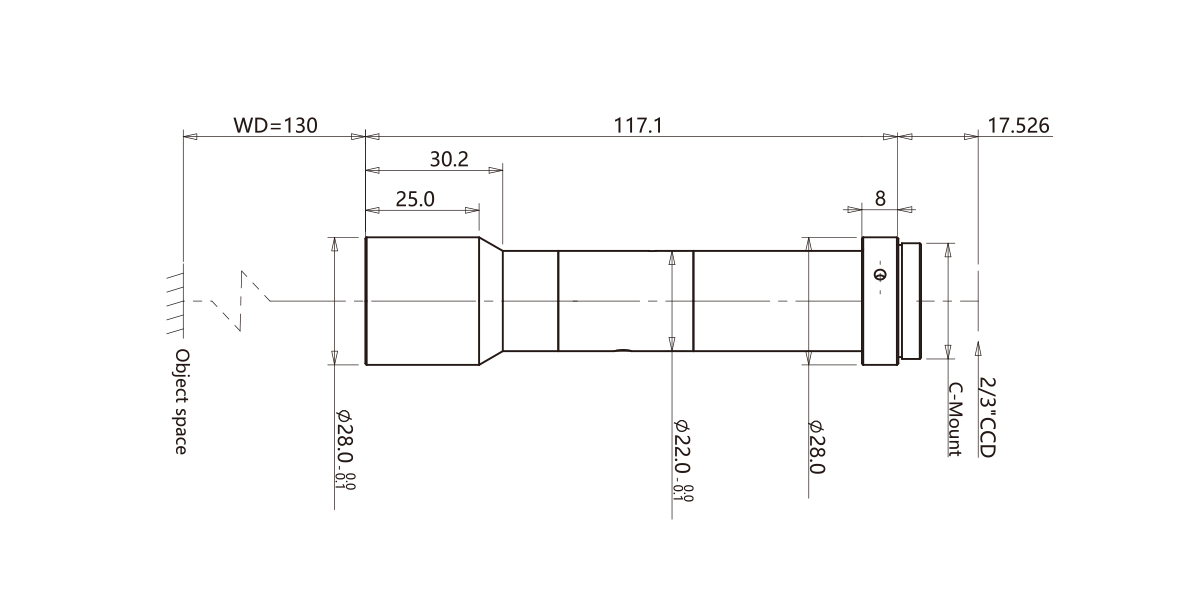

Dimensions
Naming Rule
