| Model NO. |
WWH08-65CT |
Image Circle Diameter (Φmm) |
11(2/3") |
| Magnification(x) |
0.800 |
Working Distance(mm) |
65 |
| NA |
0.0400 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
10 |
| MTF30 (lp/mm) |
75 |
Object Resolution(μm) |
8.388 |
| Depth of Field(mm) |
1.25 |
Distortion Typical(% max) |
<0.05 |
| Telecentricity Typical (°max) |
<0.03 |
Length (mm) |
89.7 |
| With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
0.4 |
| Filter Screw Size |
M23x0.5 |
| Field of View (mm x mm) |
|
| 1/2”（6.4x4.8） |
8.0x6.0 |
| 1/1.8”（7.13x5.37） |
8.9x6.7 |
| 2/3" (8.8x6.6) |
11.0x8.3 |

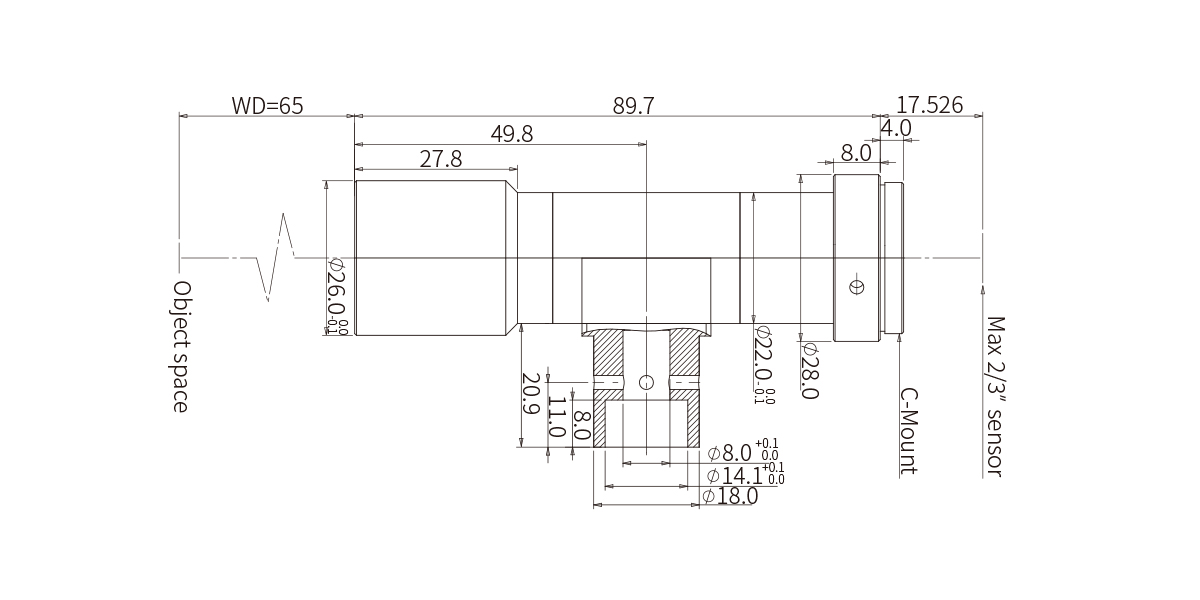

Dimensions
Naming Rule
