2/3" 1.5X Telecentric Lenses | WWH15-110CTV2 COOLENS®-OKLAB
2/3" 1.5X Telecentric Lenses | WWH15-110CTV2 COOLENS®-OKLAB
Home / 2/3" 1.5X Telecentric Lenses | WWH15-110CTV2 COOLENS®

2/3" 1.5X Telecentric Lenses | WWH15-110CTV2 COOLENS®

WWH15-110CTV2
Image Circle:11(2/3")mm, Magnification:1.5X, WD:110±2mm, NA:0.07488, Mount:C, Type:Telecentric Lenses
$605.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$605.00 USD each
Description

Model NO. WWH15-110CTV2 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1.000 Working Distance(mm) 110±2
NA 0.0749 Type Telecentric
Mount C Best Aperture(f/#) 10
MTF30 (lp/mm) 85 Object Resolution(μm) 4.5
Depth of Field(mm) 0.4 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length (mm) 128.9
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.3
Filter Screw Size M28.0x0.5
Field of View (mm x mm)
1/2”（6.4x4.8） 4.3x3.2
1/1.8”（7.13x5.37） 4.8x3.6
2/3" (8.8x6.6) 5.9x4.4

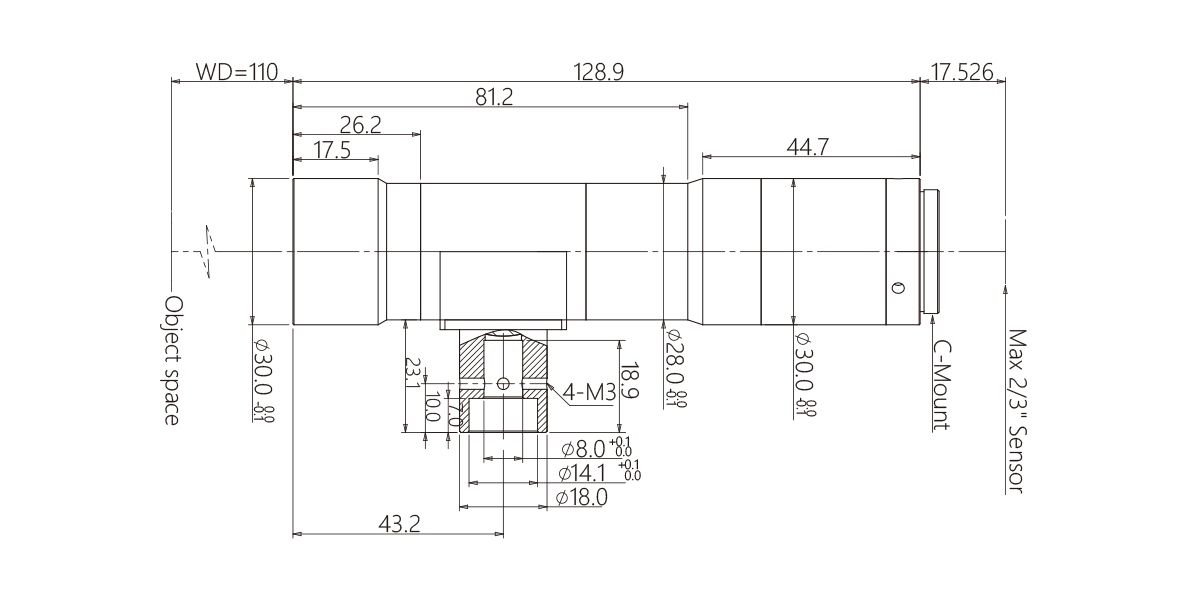

Dimensions

Naming Rule
