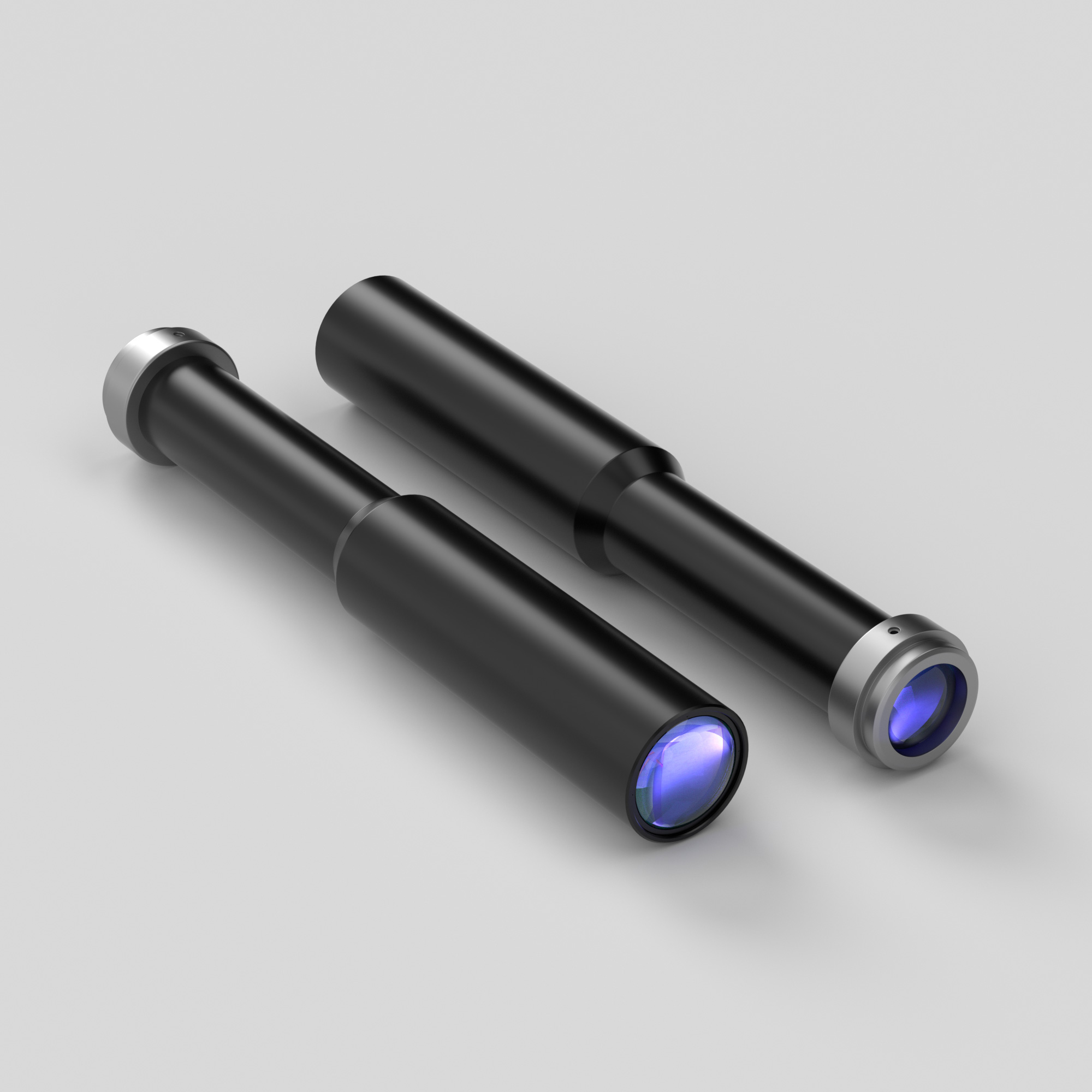

2/3" 1X Industrial Lenses | WH10-390A-230 COOLENS®

$429.00 USD
Shipping calculated at checkout.
Quantity
2/3" 1X  Industrial Lenses | WH10-390A-230 COOLENS®

Description

Model NO. WH10-390A-230 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1 Working Distance(mm) 390
NA 0.0271 Type Fixed Magnification
Mount C Best Aperture(f/#) 17.9
MTF30 (lp/mm) 30 Object Resolution(μm) 12.4
Depth of Field(mm) 1.4 Distortion Typical(% max) 0.3
Telecentricity Typical (°max) Non-telecentric Length (mm) 180.7
With Coaxial Illumination Port No Measured Depth of Field (mm) 1
Filter Screw Size /

Field of View (mm x mm)

1/2"(6.4x4.8) 6.4x4.8
1/1.8"(7.13x5.37) 7.13x5.37
2/3"(8.45x7.1) 8.45x7.1

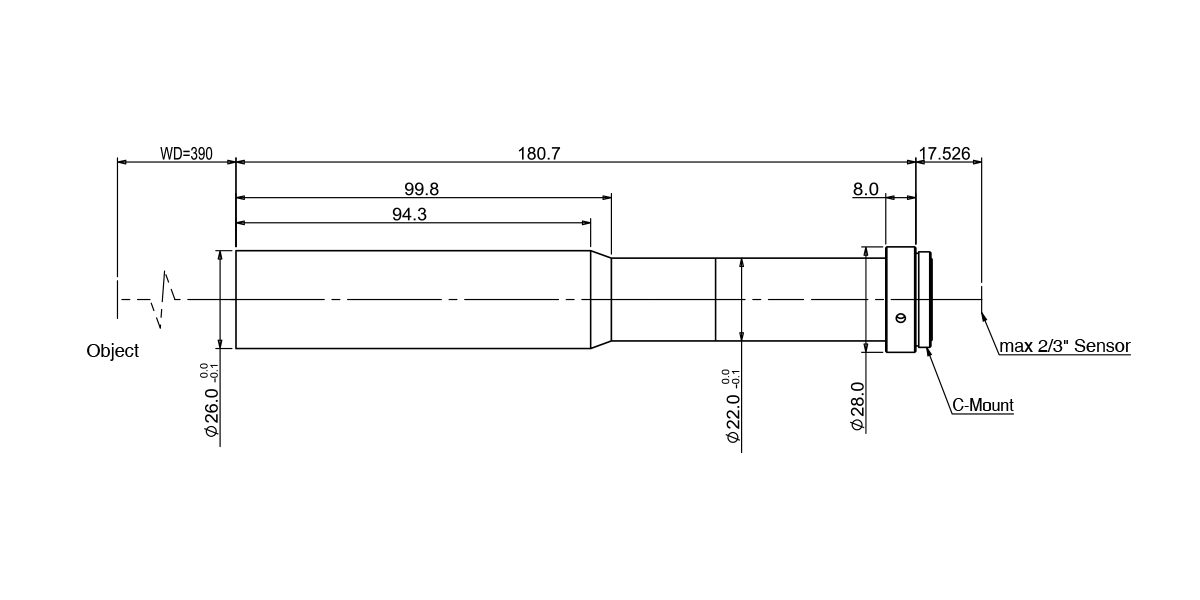

Dimensions

Naming Rule



  • Description

Model NO. WH10-390A-230 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1 Working Distance(mm) 390
NA 0.0271 Type Fixed Magnification
Mount C Best Aperture(f/#) 17.9
MTF30 (lp/mm) 30 Object Resolution(μm) 12.4
Depth of Field(mm) 1.4 Distortion Typical(% max) 0.3
Telecentricity Typical (°max) Non-telecentric Length (mm) 180.7
With Coaxial Illumination Port No Measured Depth of Field (mm) 1
Filter Screw Size /

Field of View (mm x mm)

1/2"(6.4x4.8) 6.4x4.8
1/1.8"(7.13x5.37) 7.13x5.37
2/3"(8.45x7.1) 8.45x7.1

Dimensions

Naming Rule
