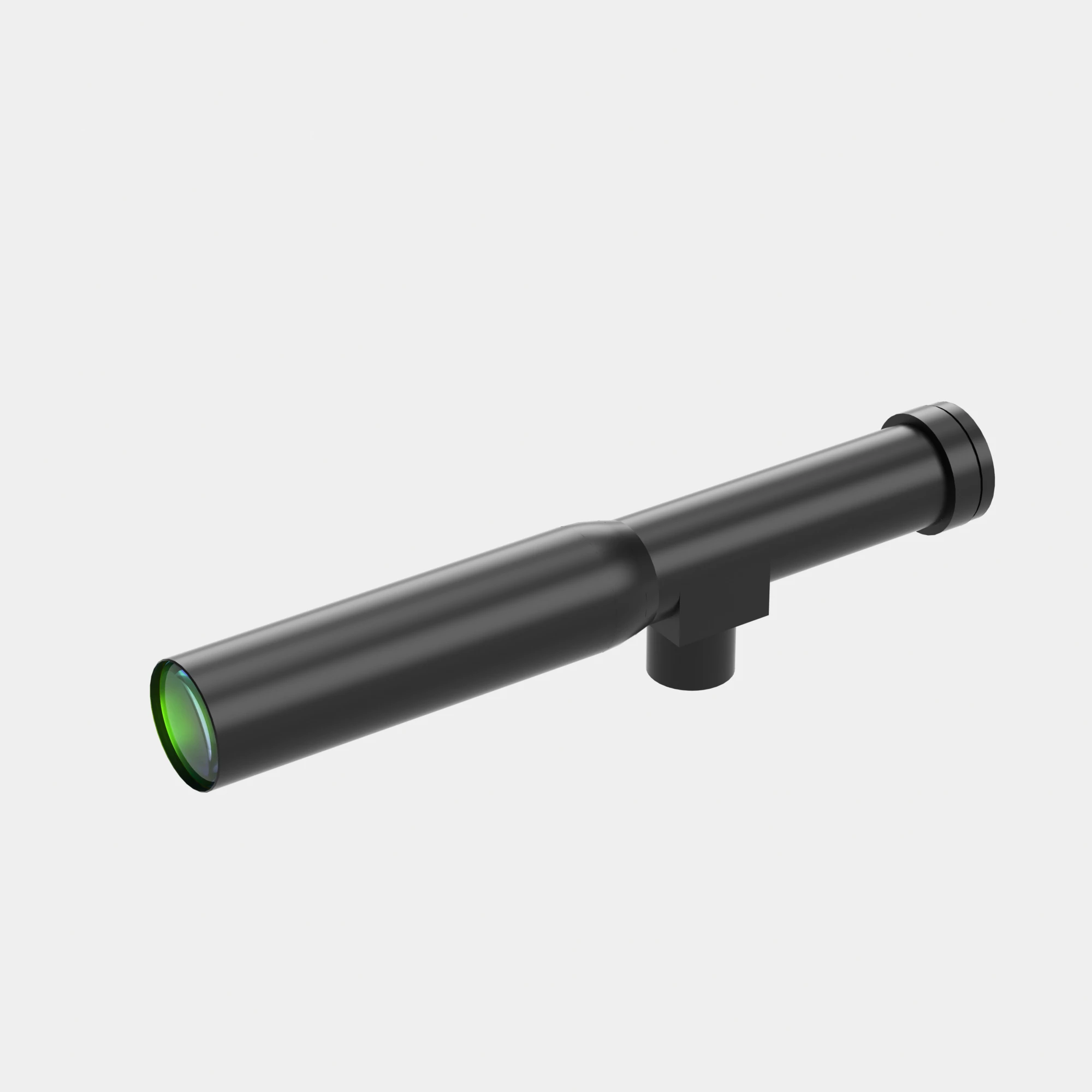

2/3" 1X Telecentric Lenses | WWH10-510CT COOLENS®

WWH10-510CT
$449.00 USD
Shipping calculated at checkout.
Quantity
2/3" 1X Telecentric Lenses | WWH10-510CT COOLENS®-OKLAB

Description

Model NO. WWH10-510CT Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1.0 Working Distance(mm) 510
NA 0.0197 Type Telecentric
Mount C Best Aperture(f/#) 25.7
MTF30 (lp/mm) 32 Object Resolution(μm) 17.030
Depth of Field(mm) 2.056 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length (mm) 178.5
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 2.2
Filter Screw Size /
Field of View (mm x mm)
1/2" (6.4x4.8) 6.4x4.8
1/1.8" (7.13x5.37) 7.13x5.37
2/3" (8.8x6.6) 8.8x6.6

Dimensions

Naming Rule
