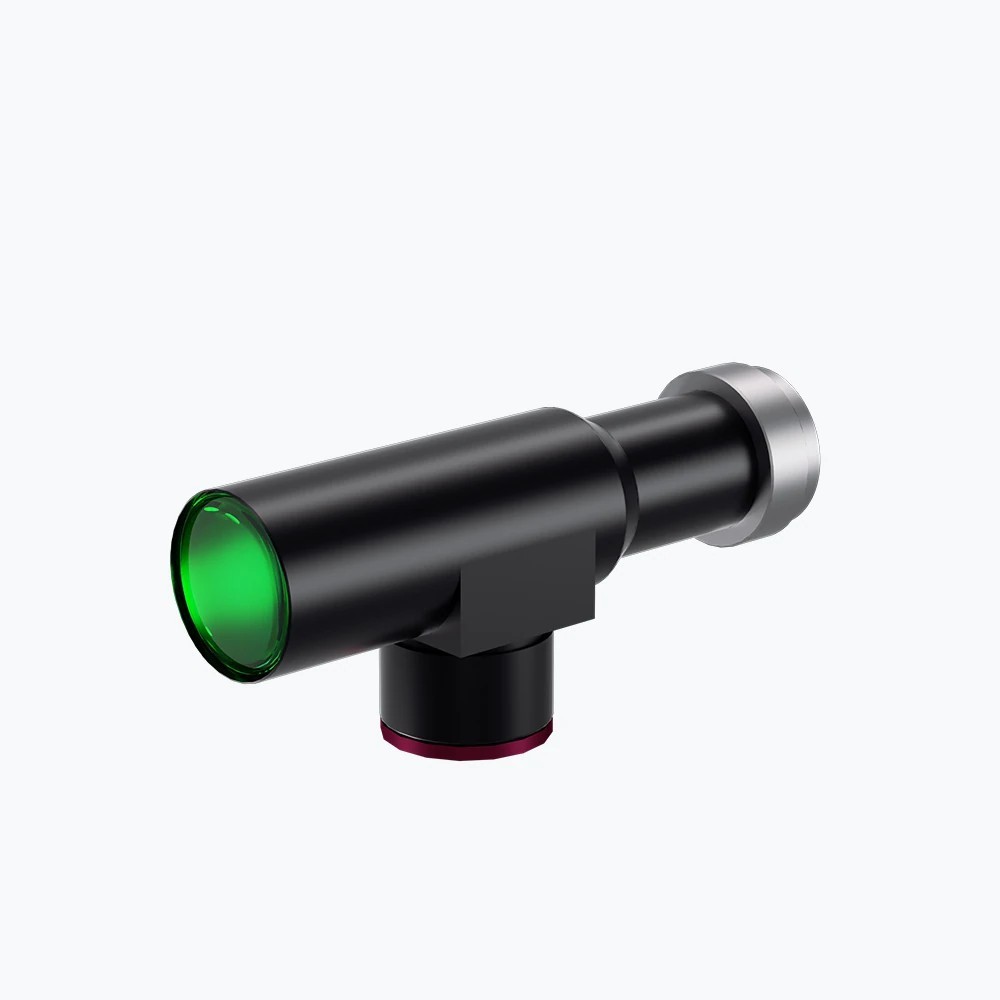

2/3" 1X Telecentric Lenses | WWH10-63CTLV3 COOLENS®

WWH10-63CTLV3
Image Circle:11(2/3")mm, Magnification:1X, WD:63±1mm, NA:0.0625, Mount:C, Type:Telecentric Lenses
$429.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$429.00 USD each
Description

Model NO. WWH10-63CTLV3 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1.000 Working Distance(mm) 63±1
NA 0.0625 Type Telecentric
Mount C Best Aperture(f/#) 8
MTF30 (lp/mm) 115 Object Resolution(μm) 5.4
Depth of Field(mm) 0.6 Distortion Typical(% max) 0.07
Telecentricity Typical (°max) 0.1 Length (mm) 101.3
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.3
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2”（6.4x4.8） 6.4x4.8
1/1.8”（7.13x5.37） 7.13x5.37
2/3" (8.8x6.6) 8.45x7.1

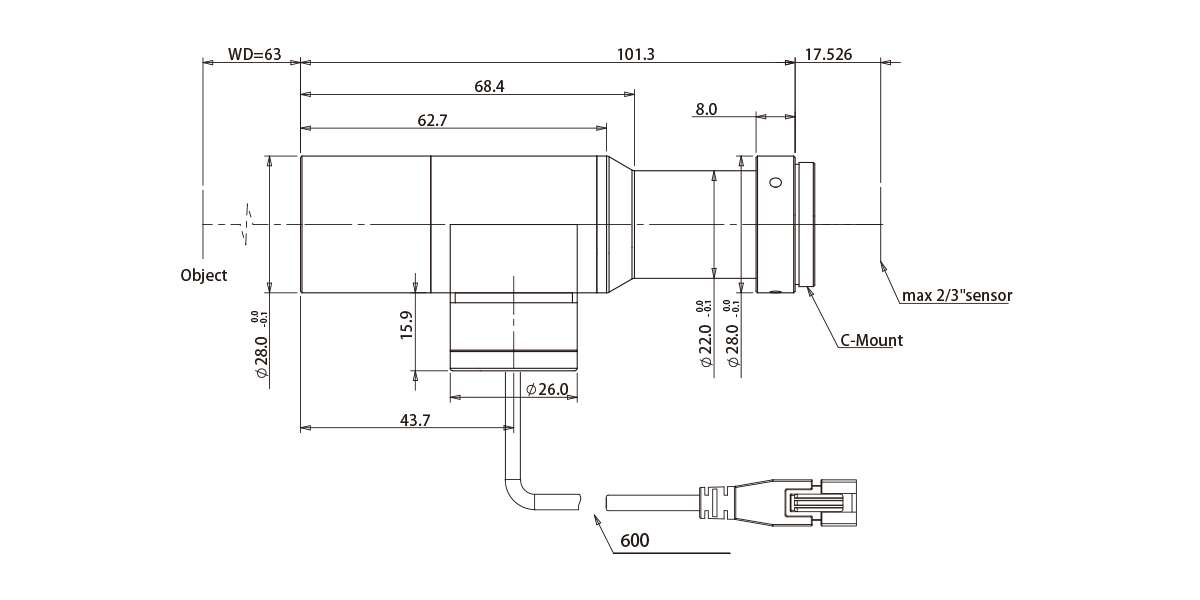

Dimensions



Naming Rule
