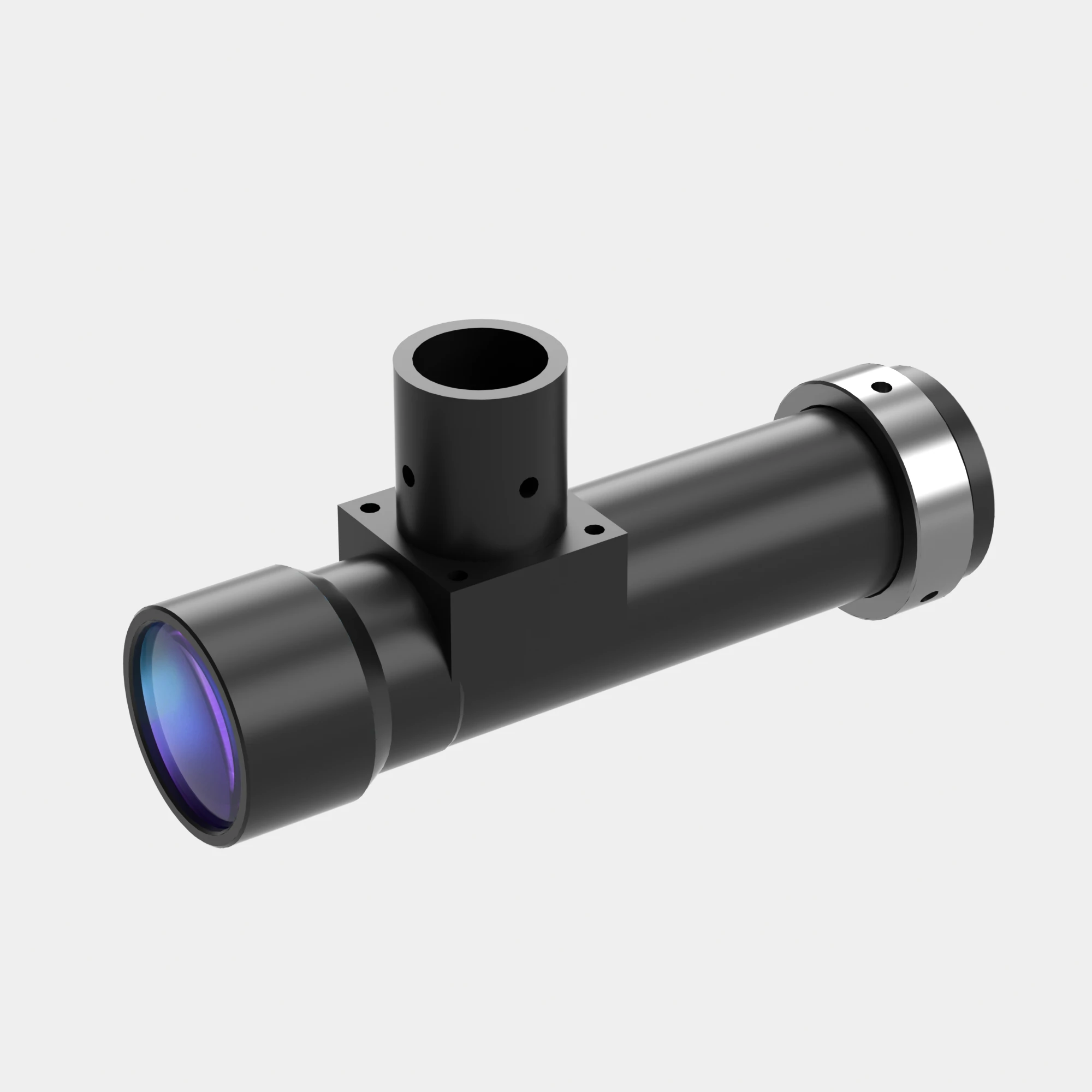

2/3" 2X Telecentric Lenses | WWH20-65CTV2 COOLENS®

WWH20-65CTV2
Image Circle:11(2/3")mm, Magnification:2X, WD:65±1mm, NA:0.07554, Mount:C, Type:Telecentric Lenses
$527.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$527.00 USD each
Description

Model NO. WWH20-65CTV2 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 2.000 Working Distance(mm) 65±1
NA 0.0755 Type Telecentric
Mount C Best Aperture(f/#) 13.2
MTF30 (lp/mm) 75 Object Resolution(μm) 4.4
Depth of Field(mm) 0.3 Distortion Typical(% max) <0.05
Telecentricity Typical (°max) <0.03 Length (mm) 92.5
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.2
Filter Screw Size M23x0.5
Field of View (mm x mm)
1/2”（6.4x4.8） 3.2x2.4
1/1.8" (7.13x5.37) 3.6x2.7
2/3" (8.8x6.6) 4.4x3.3

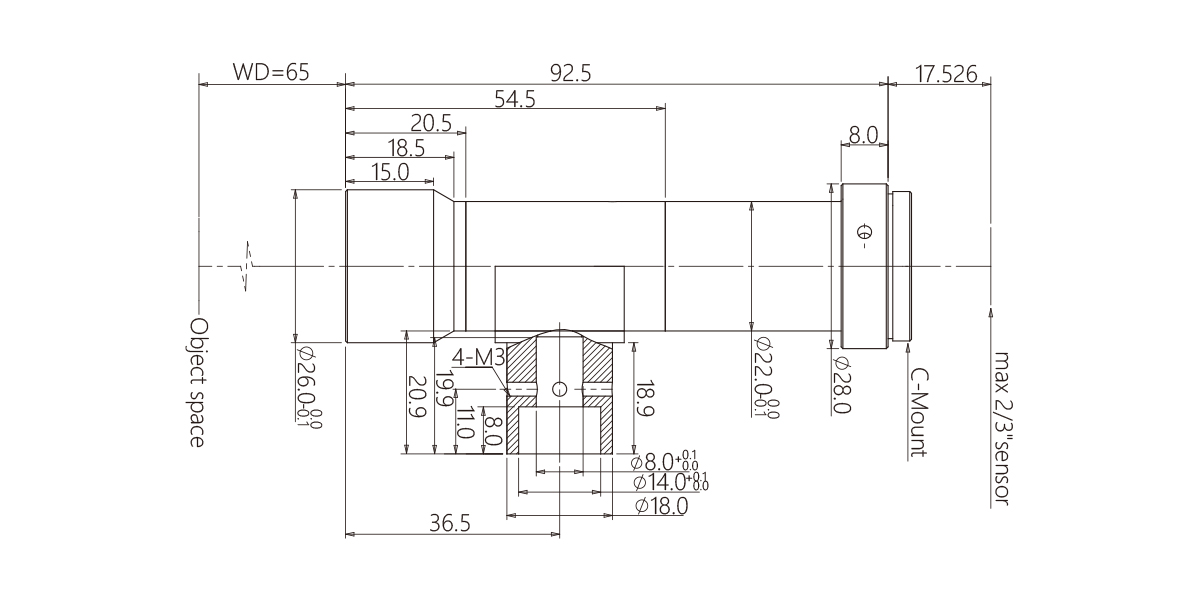

Dimensions

Naming Rule
