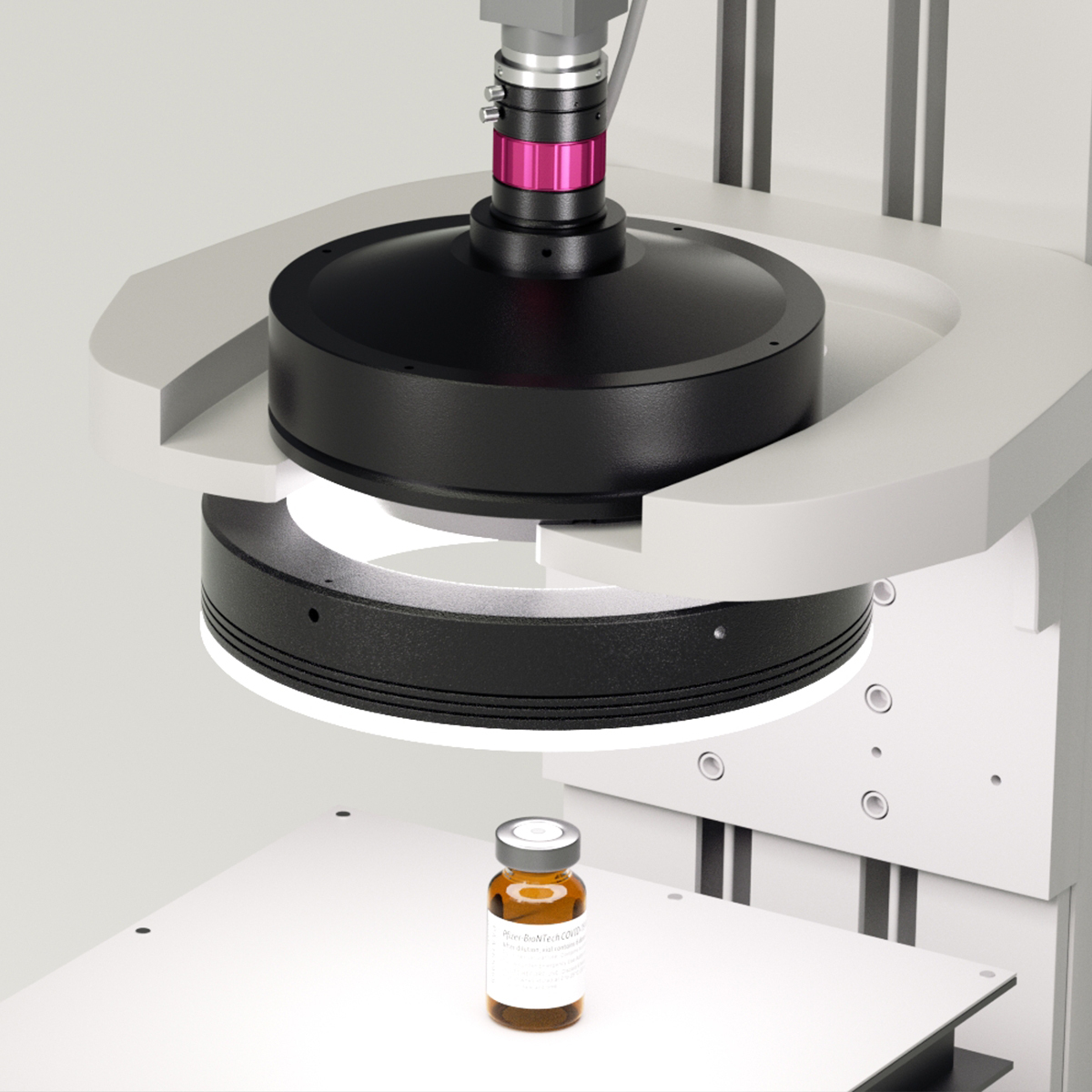

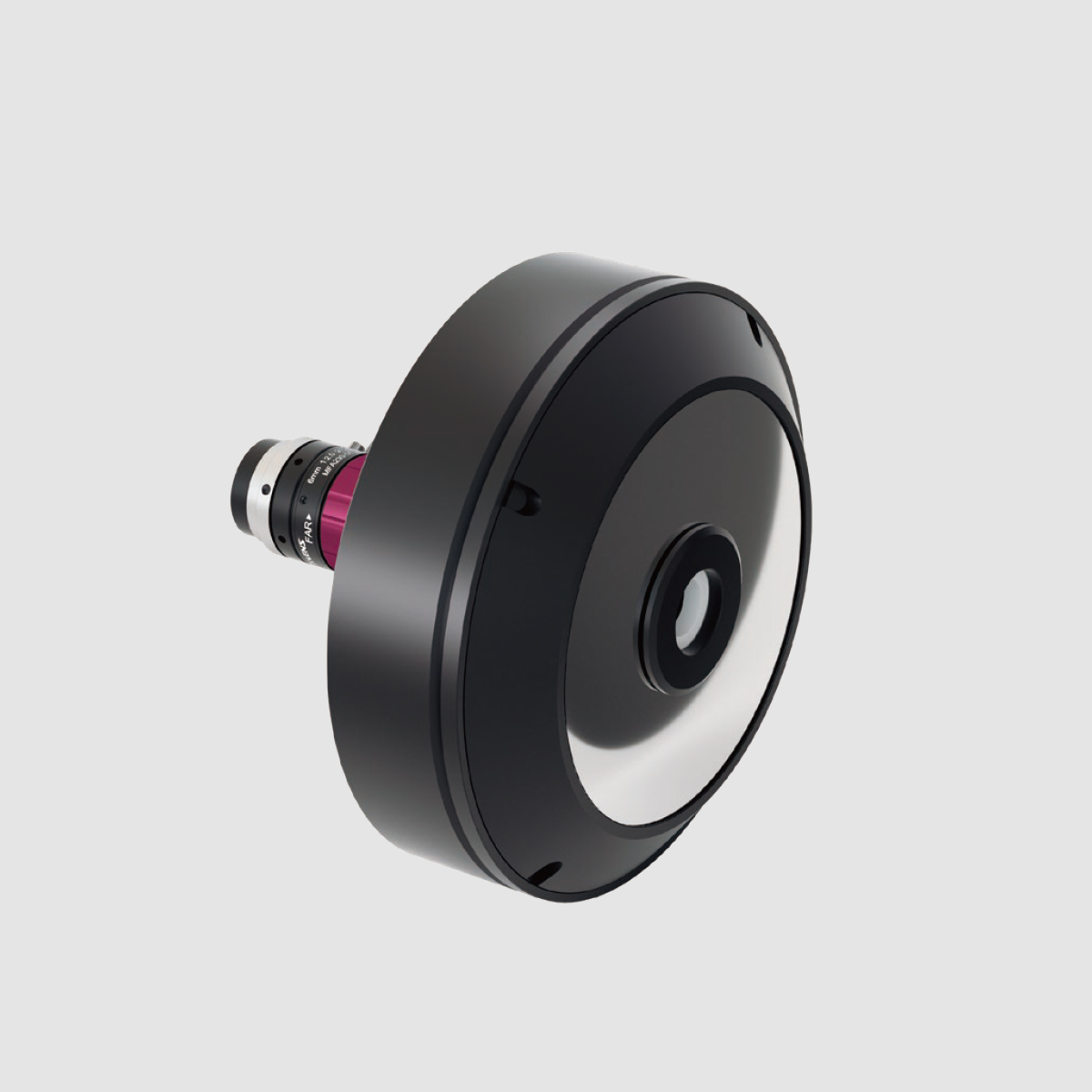

2/3" 360° Outer Wall Inspection Lenses | PRO230-C270-230-S16 COOLENS®

PRO230-C270-230-S16
$2,058.00 USD
Shipping calculated at checkout.
Quantity
2/3" 360° Outer Wall Inspection Lenses | PRO230-C270-230-S16 COOLENS® 2/3" 360° Outer Wall Inspection Lenses | PRO230-C270-230-S16 COOLENS®

Description

Max Sensor Size (φmm) 2/3"
Image Circle (φmm) 7.07
Imaging One-shot Outer Wall Inspection
Compatible with  FA Lens Focal Length 16mm
Mount C
Wavelength (mm) 450~640
Object Diameter (mm) 5~30

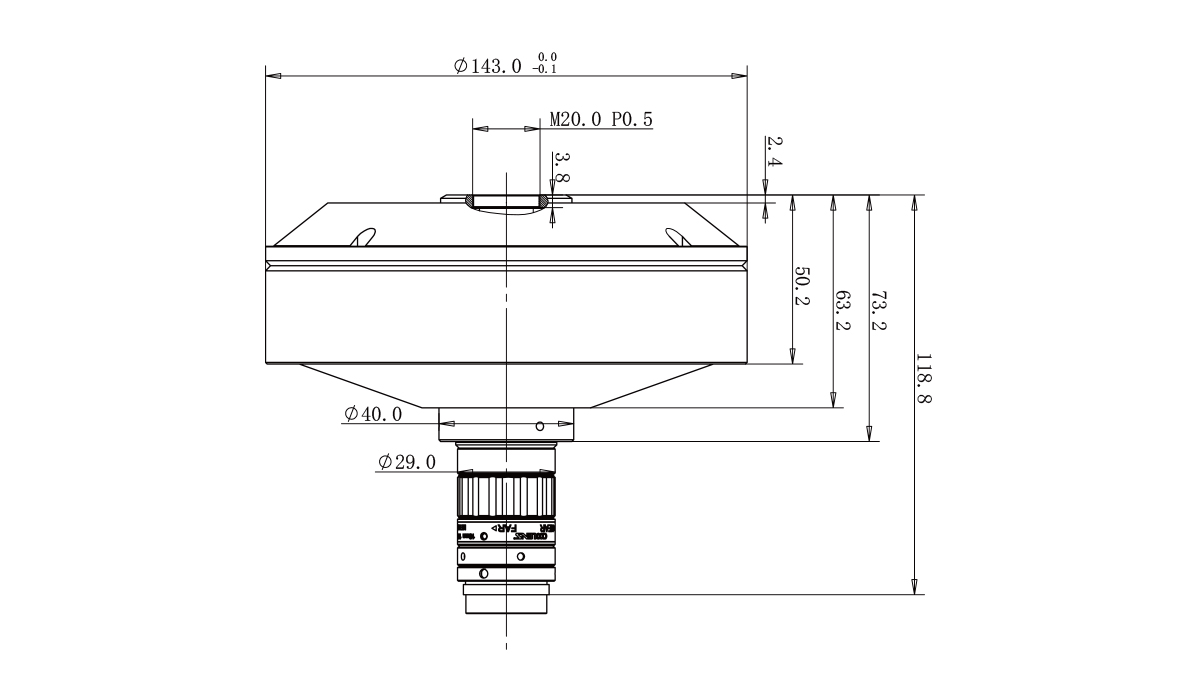

Dimensions

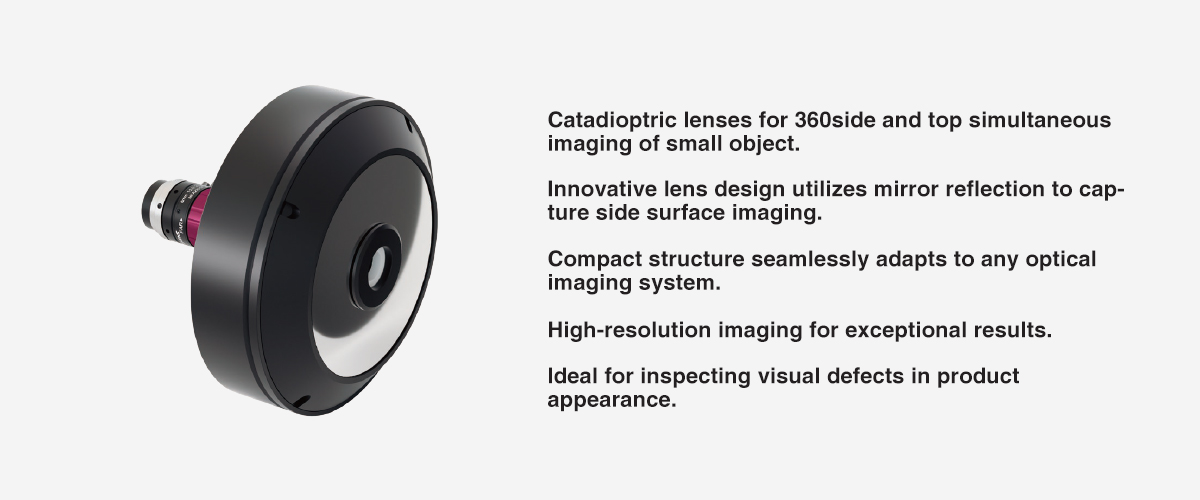

Product Features



Object Diameter

Max.Objet Height Inspection

Working Distance

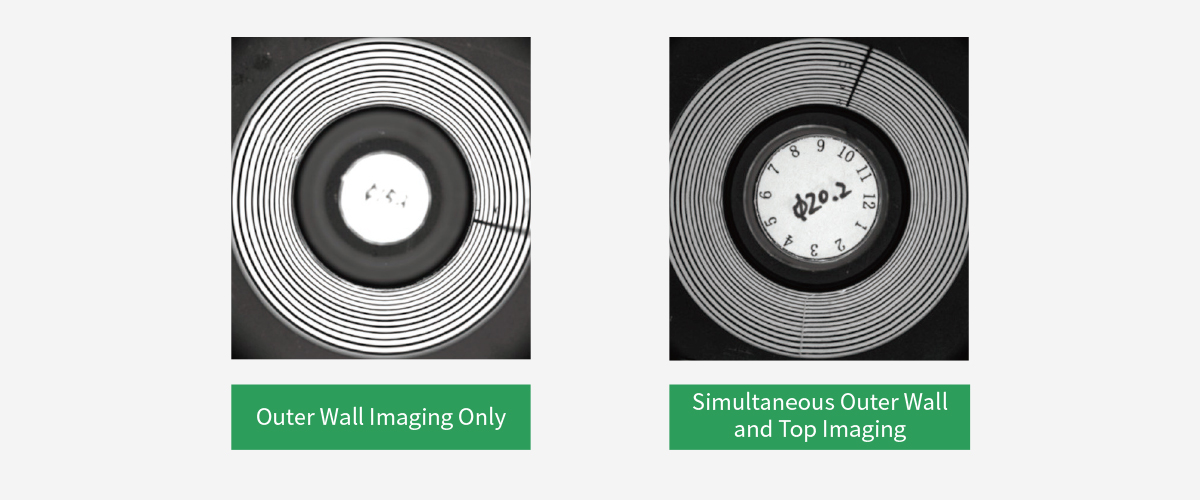

 Imaging
5mm 3mm 41mm Outer Wall Imaging Only
7mm 5mm 39mm

Simultaneous Outer Wall and Top Imaging
10mm 6mm 36mm Simultaneous Outer Wall and Top Imaging
15mm 11mm 30mm Simultaneous Outer Wall and Top Imaging
20mm 13mm 24mm Simultaneous Outer Wall and Top Imaging
25mm 18mm 15mm Simultaneous Outer Wall and Top Imaging
30mm 18mm 10mm Outer Wall Imaging Only
