| Model NO. |
WWH30-110ATV2 |
Image Circle Diameter (Φmm) |
11(2/3") |
| Magnification(x) |
3.000 |
Working Distance(mm) |
110±2 |
| NA |
0.0826 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
18.3 |
| MTF30 (lp/mm) |
55 |
Object Resolution(μm) |
4.1 |
| Depth of Field(mm) |
0.2 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
165.7 |
| With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
0.2 |
| Filter Screw Size |
M28.0x0.5 |
| Field of View (mm x mm) |
|
| 1/2”（6.4x4.8） |
2.1x1.6 |
| 1/1.8”（7.13x5.37） |
2.4x1.8 |
| 2/3" (8.8x6.6) |
2.9x2.2 |

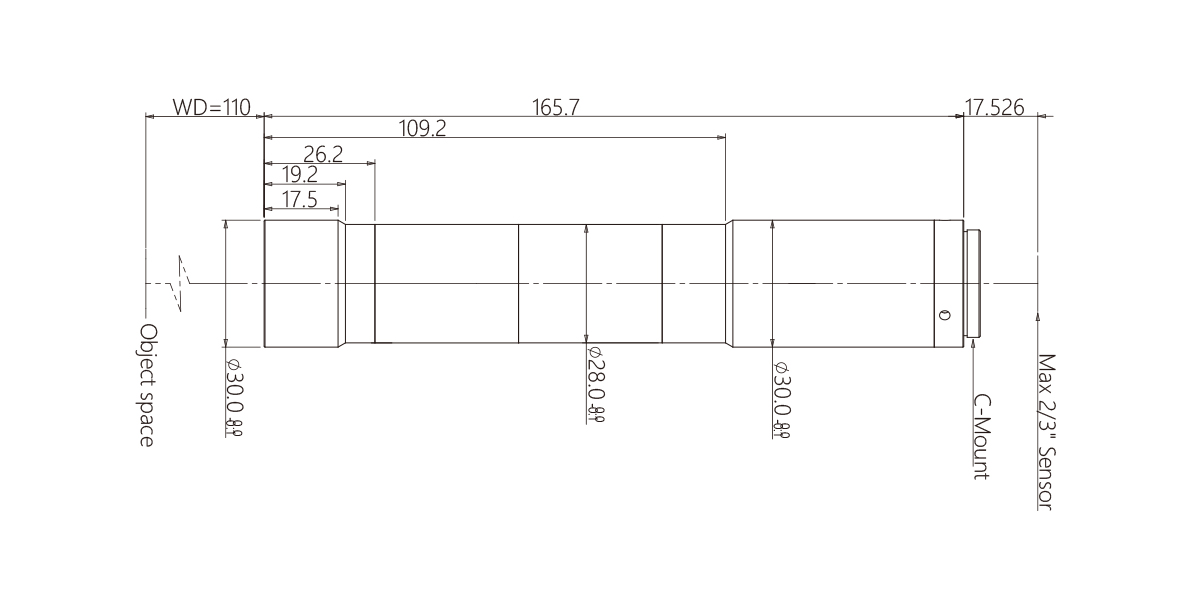

Dimensions
Naming Rule
