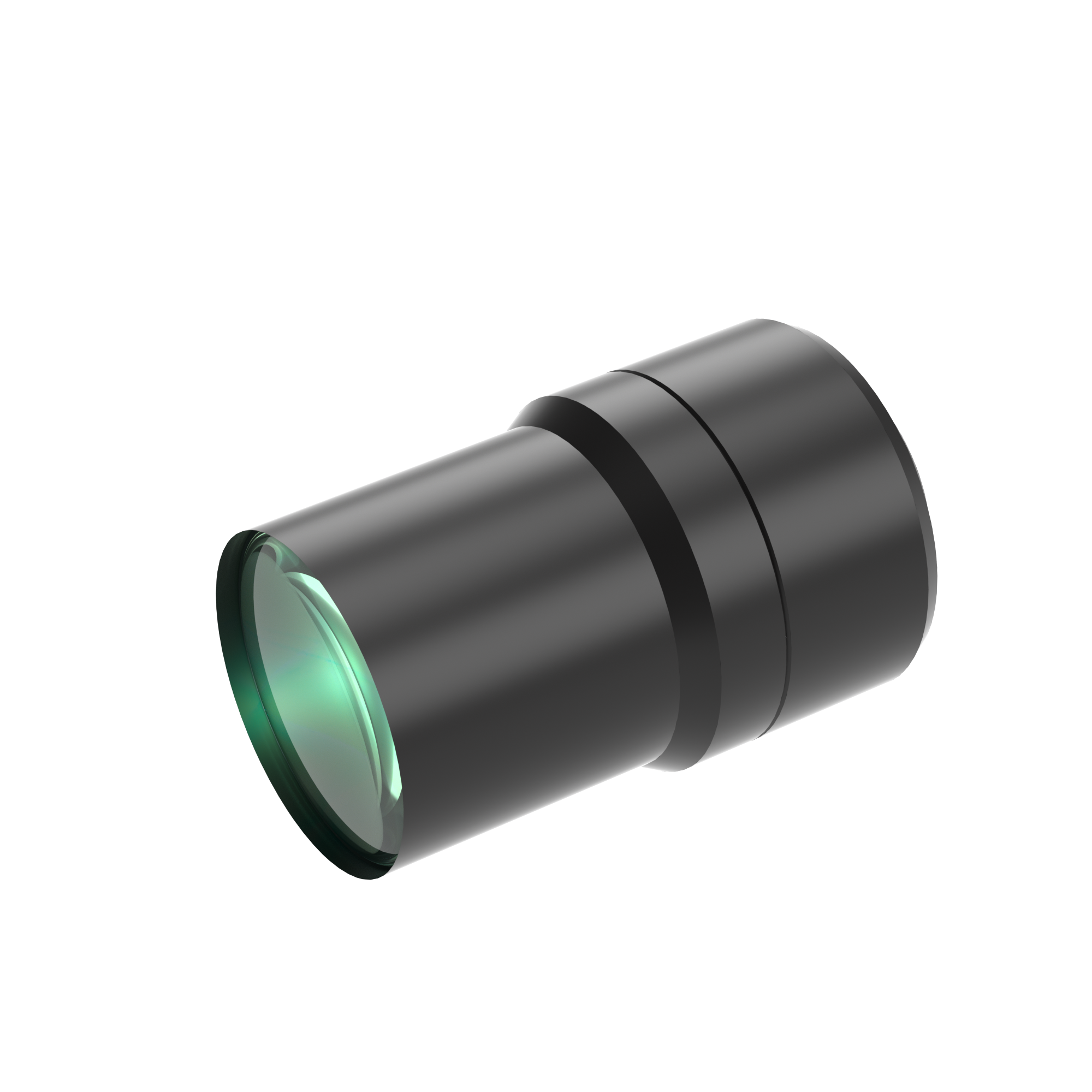

| Model NO. |
WWT230-07-70 |
Image Circle Diameter (Φmm) |
11.0(2/3") |
| Focal Length(mm) |
40.45 |
Magnification(x) |
0.7 |
| Working Distance(mm) |
70 |
MTF30 (lp/mm) |
115 |
| Type |
Fixed Magnification Focal Length |
Mount |
C |
| NA |
0.0437 |
Best Aperture(f/#) |
8 |
| Object Resolution(μm) |
7.7 |
Depth of Field(mm) |
1.3 |
| TV Distortion |
-0.029 |
Length (mm) |
61.8 |
| Measured Depth of Field (mm) |
1 |
Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1/1.8”（7.13x5.37） |
10.19x7.67 |
| 1/1.8”（7.43x4.9） |
10.61x7 |
| 2/3”（8.45x7.1） |
12.07x10.14 |

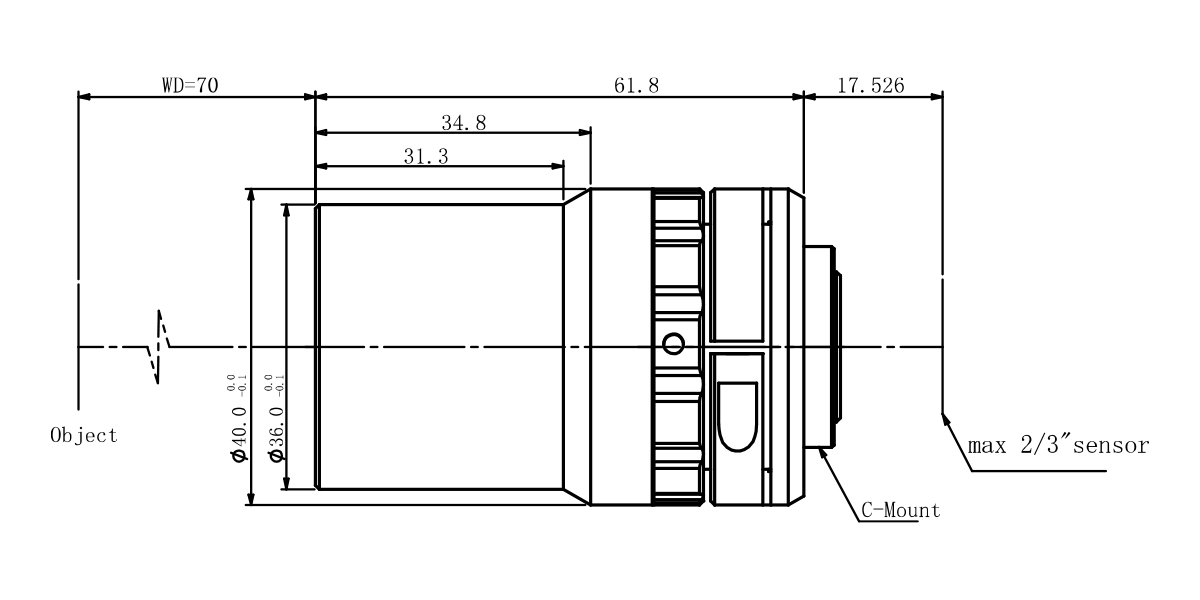

Dimensions
Naming Rule
